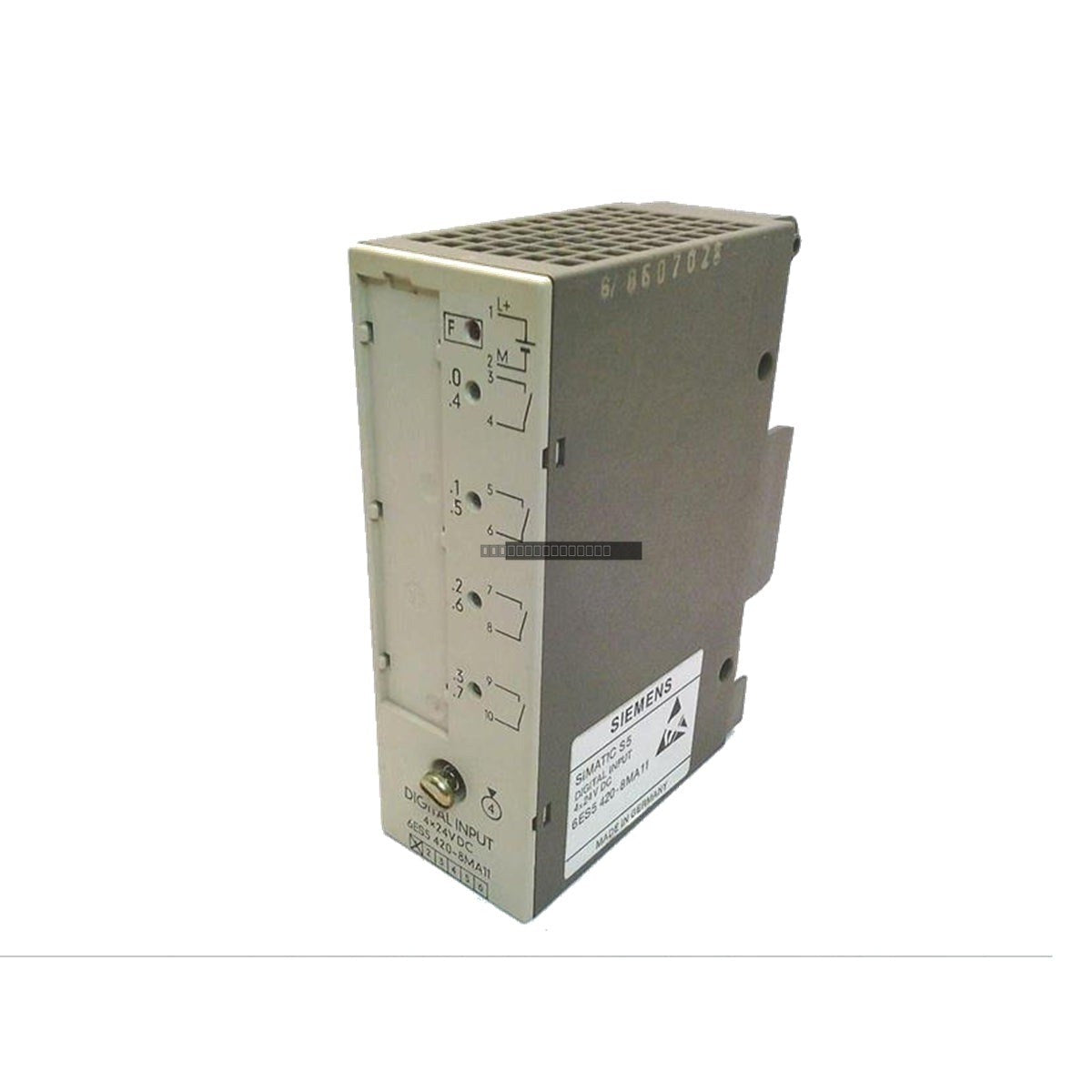

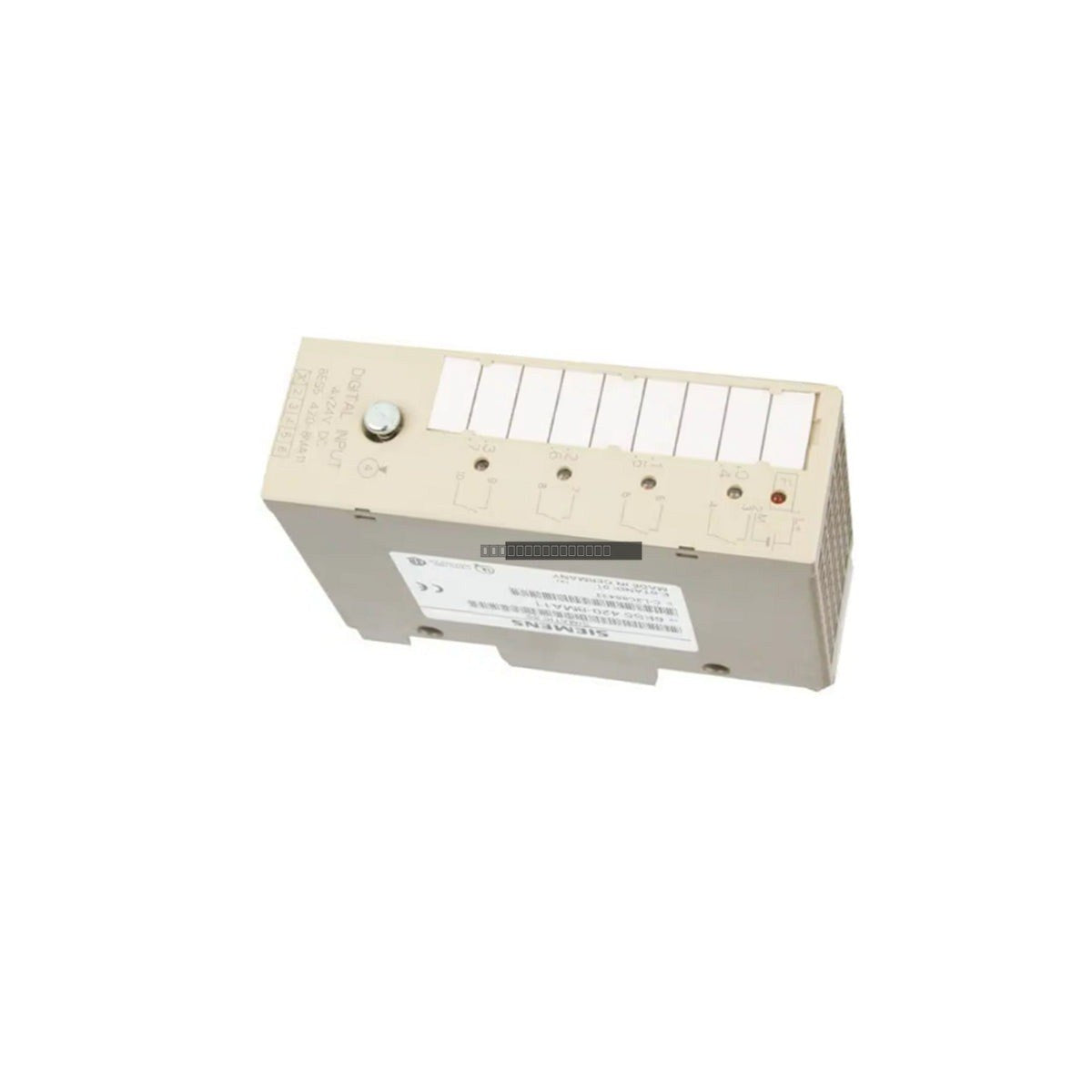

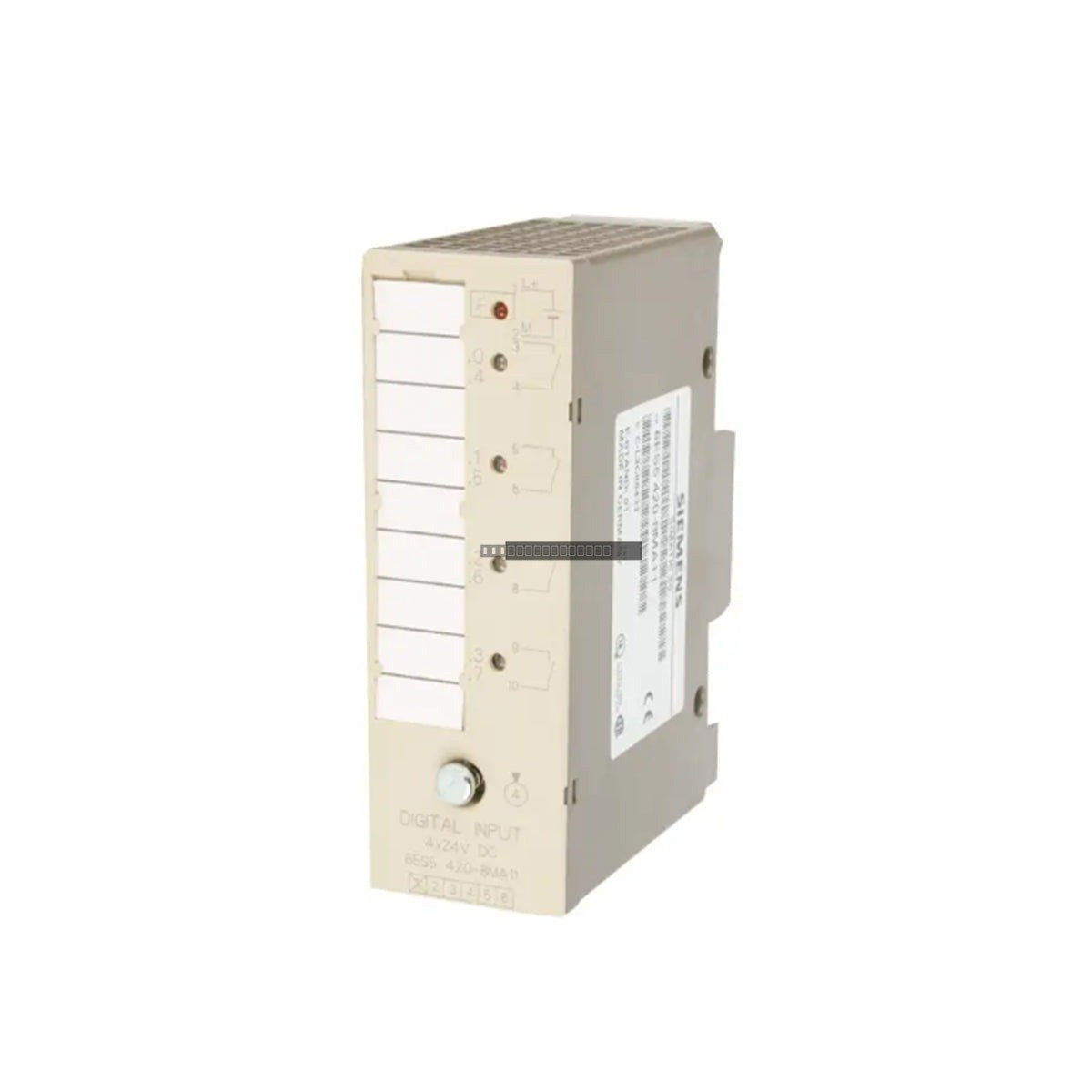

The Siemens 6ES5420-8MA11 is a dedicated digital input module designed for the Simatic S5-090, S5-095, and S5-100 programmable controller systems. This module provides four isolated digital input channels, facilitating the reliable acquisition of 24 VDC signals from field devices. It serves as a robust interface component in industrial automation, ensuring high-speed signal processing and consistent performance in demanding control environments.
Features
Four independent digital input channels for 24 VDC signal monitoring.
Engineered for seamless compatibility with S5-090, S5-095, and S5-100 series controllers.
Galvanic isolation between field-side signals and the internal backplane to protect sensitive CPU components.
Integrated passive filtering to suppress signal bounce and electromagnetic interference.
Compact, rail-mountable design suitable for standard industrial control cabinet configurations.
Applications
This module is widely utilized in factory automation, water treatment facilities, and material handling systems where reliable, real-time digital signal acquisition is required for control logic execution.
Technical Specifications
Model
6ES5420-8MA11
Product Family
Simatic S5
Input Channels
4
Signal Voltage
24 VDC
Power Consumption
< 5 W
Operating Temperature
0 to 60 deg C
Protection Class
IP20
Installation Guidelines
Ensure the controller rack is powered down before inserting or removing the module to prevent electrical damage.
Mount the module securely on a standard DIN-rail within an IP20 or higher rated enclosure.
Use shielded cabling for field inputs to minimize the risk of electromagnetic interference (EMI) in high-noise environments.
Verify that the 24 VDC power supply is stable and within the specified operating range before commissioning.
Ensure proper grounding of the control cabinet to maintain signal integrity and safety standards.
FAQ
Is this module compatible with S5-115U systems?
No, the 6ES5420-8MA11 is specifically designed for the S5-090, S5-095, and S5-100 controller families. Please verify your CPU model before installation.
What is the primary function of the galvanic isolation?
The galvanic isolation provides an electrical barrier between the field-side input signals and the controller backplane, protecting the CPU from voltage spikes or ground loops originating from field devices.
