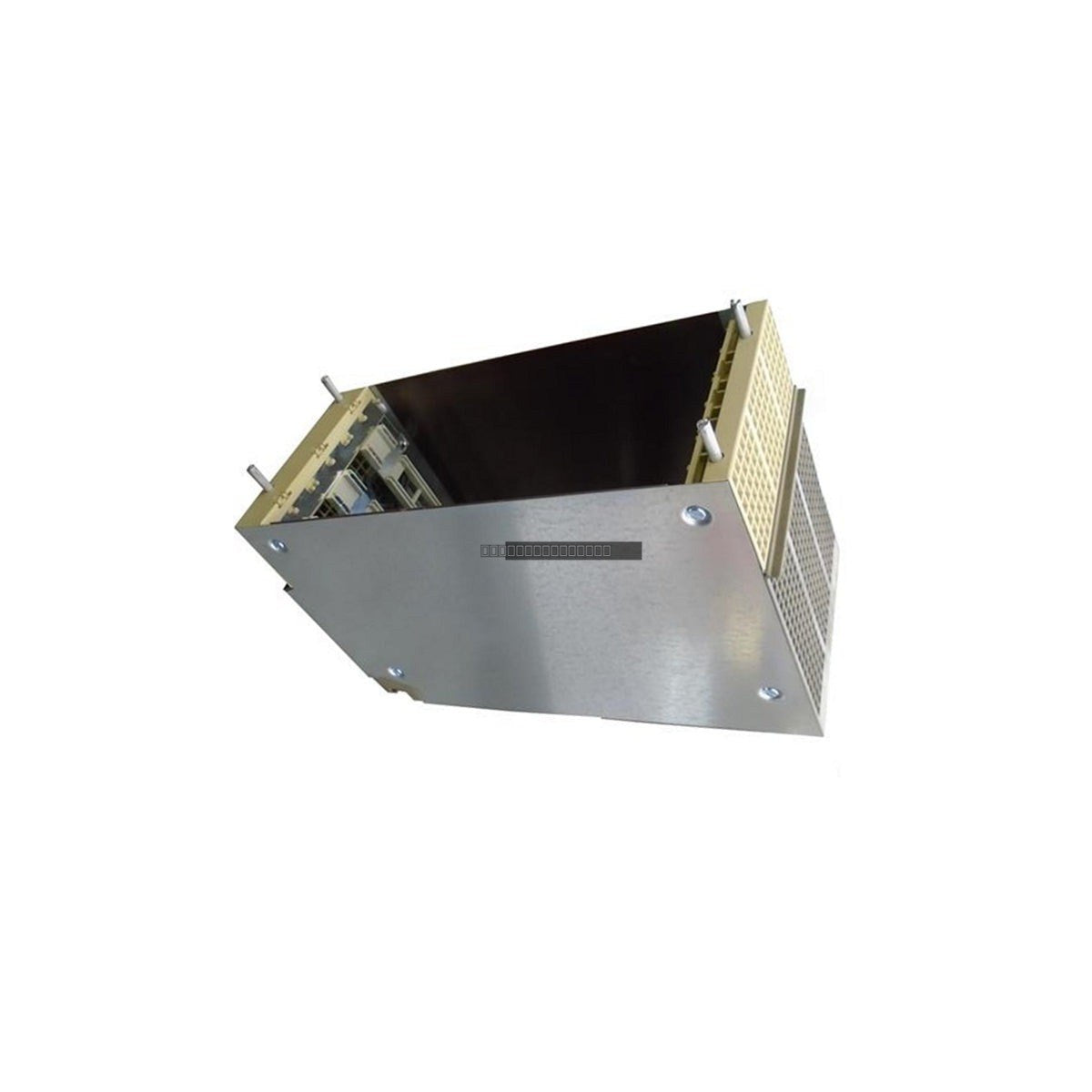

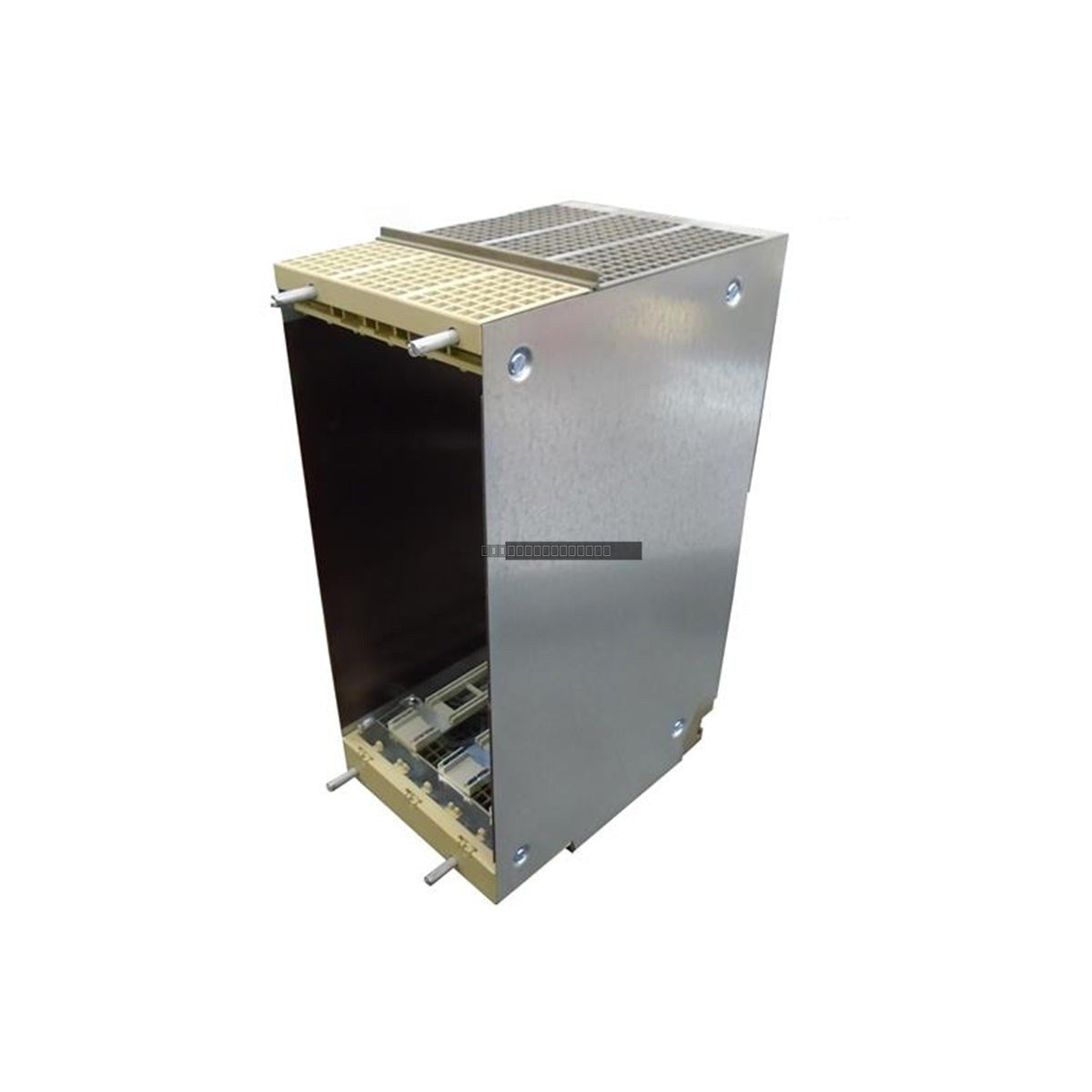

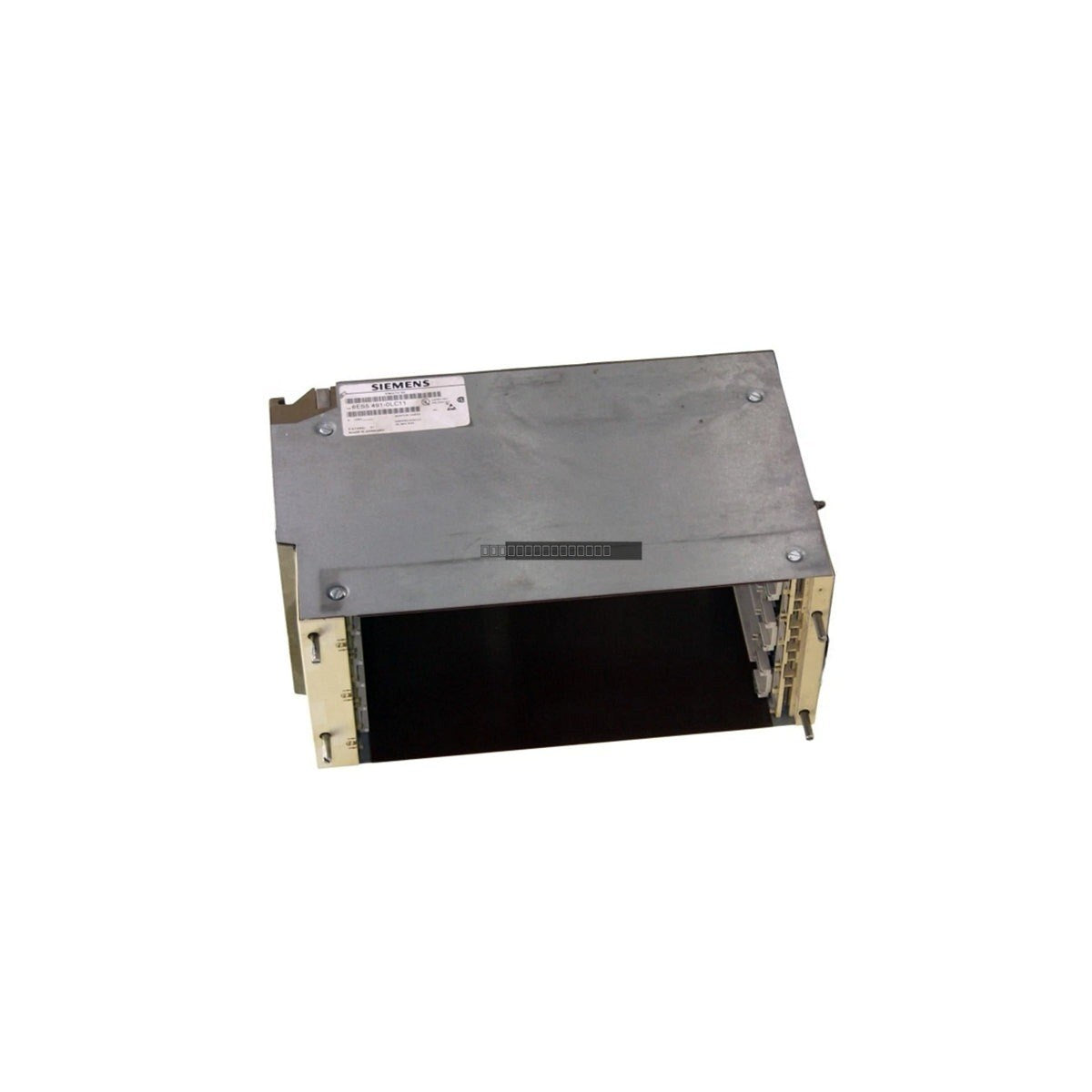

The Siemens 6ES5 491-0LC11 is a specialized adapter casing engineered for the Simatic S5-115U programmable controller system. This mechanical interface unit is designed to facilitate the structural integration and connectivity of up to six modular components within the S5 rack architecture. By providing a rigid mounting housing, it ensures precise physical alignment and maintains electrical continuity, which is critical for system reliability in demanding industrial environments such as heavy manufacturing, chemical processing, and mining operations. The casing protects the backplane connectors from mechanical stress, helping to prevent intermittent contact issues and extending the service life of the control hardware.
Features
Designed specifically for the Siemens Simatic S5-115U series rack system.
Supports the integration of up to 6 modular I/O or controller components.
Integrated guide rails ensure accurate alignment of module backplane pins with the S5 bus interface.
Constructed from high-impact, heat-resistant industrial polymers for durability.
Passive mechanical design ensures no power consumption or active electronic interference.
Facilitates consistent thermal management by maintaining proper spacing between modules.
Installation Guidelines
Ensure the S5-115U rack is powered down before attempting to install or remove the adapter casing.
Align the casing precisely with the rack mounting slots to prevent damage to the guide rails.
Verify that all modules are fully seated within the casing to ensure reliable bus connection.
Handle with care to avoid mechanical shock to the polymer housing.
Ensure the installation environment remains within the specified temperature range of 0 to 60 degC to maintain material integrity.
Technical Specifications
Model
6ES5 491-0LC11
System Compatibility
Simatic S5-115U
Module Capacity
Up to 6 modules
Material
High-impact industrial polymer
Operating Temperature
0 to 60 degC
Power Consumption
None (Passive)
Mounting
S5-115U Rack-mount
FAQ
Is this adapter casing an active electronic component?
No, the 6ES5 491-0LC11 is a passive mechanical interface. It does not contain active circuitry and serves solely as a structural housing for S5-115U modules.
Can this casing be used with other S5 series racks?
This model is specifically designed for the S5-115U series. Please verify your rack architecture before installation to ensure mechanical compatibility.
