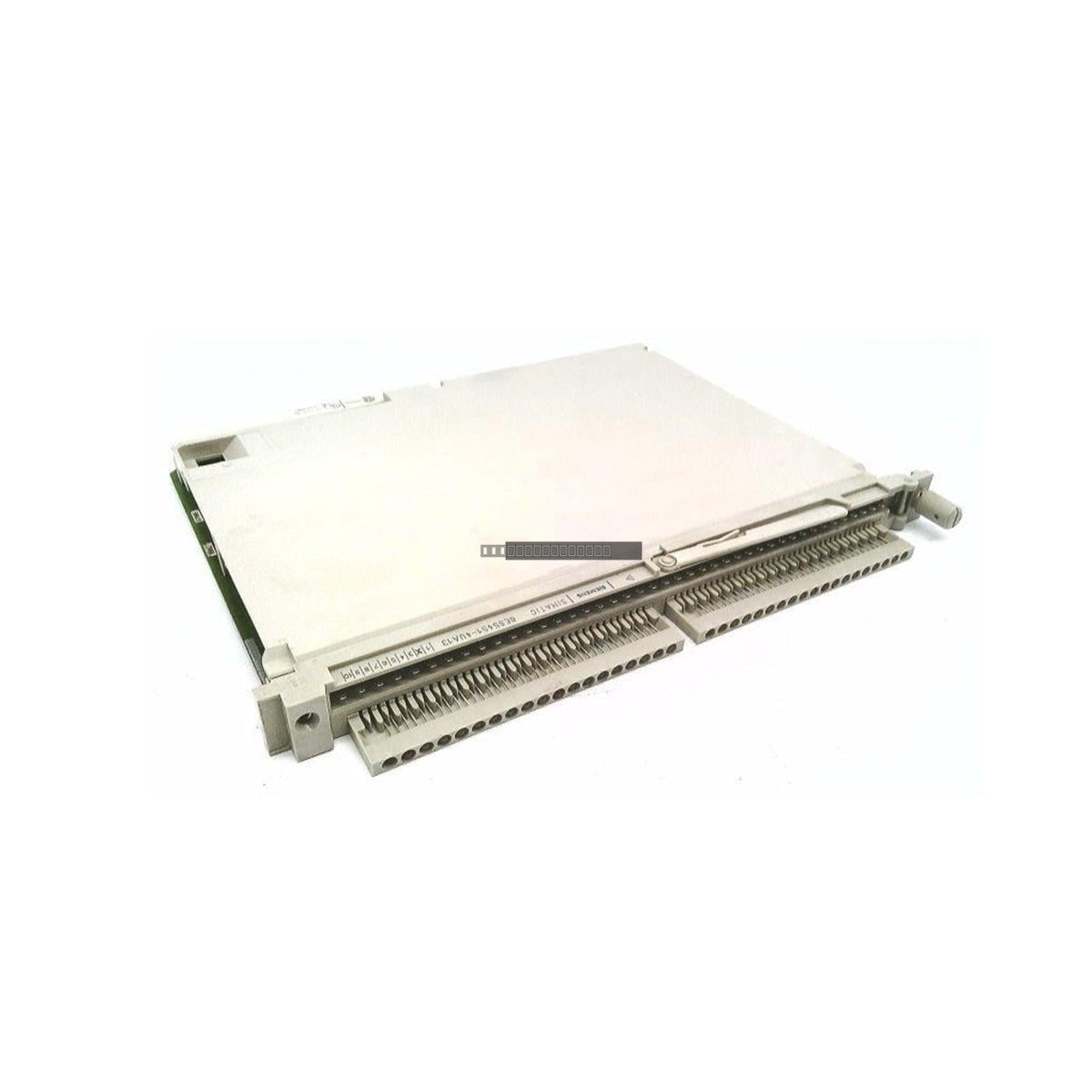

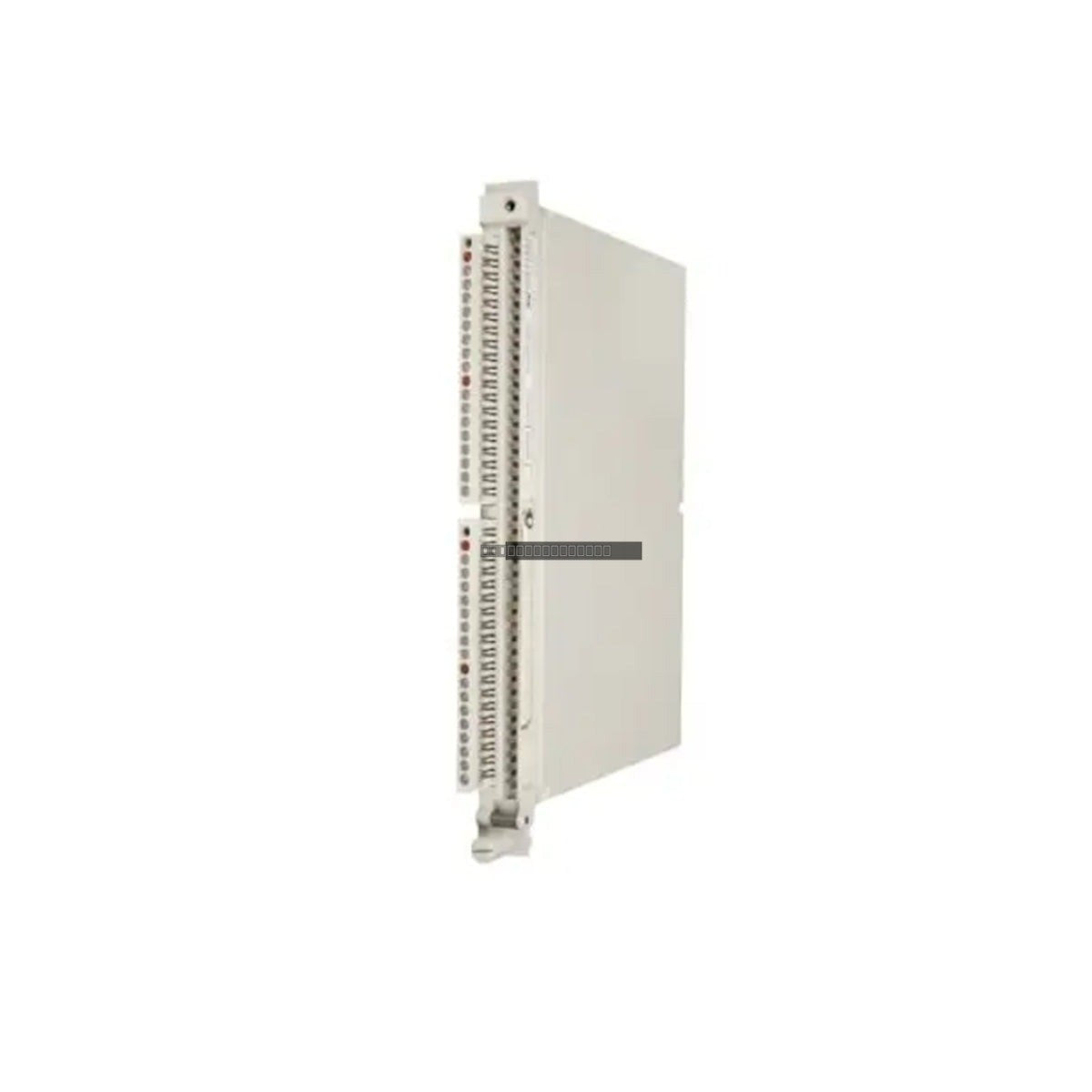

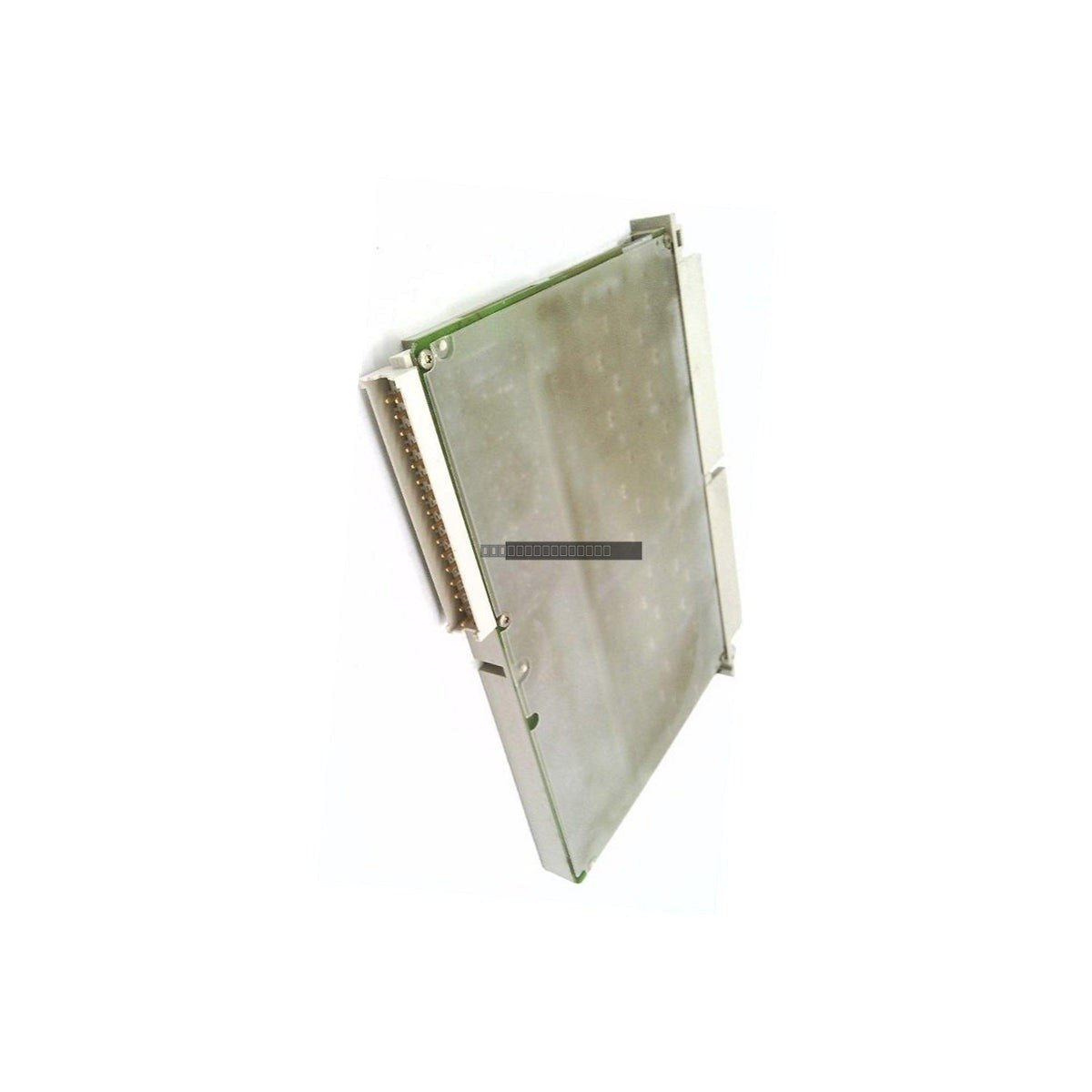

The Siemens 6ES5451-4UA13 is a high-density digital output module designed for the SIMATIC S5-135/155 series programmable logic controller systems. This module provides 32 digital output channels, specifically engineered for 24V DC signal environments. It is a robust component designed for industrial control applications requiring reliable switching of actuators, relays, and indicators within the S5 ecosystem.
Features
32-channel digital output configuration for high-density I/O requirements.
Designed for 24V DC voltage levels.
Output current rating of 0.5A per channel.
Direct compatibility with S5-135 and S5-155 rack architectures.
Engineered for industrial environments with standard S5 rail mounting.
Technical Specifications
Model
6ES5451-4UA13
Manufacturer
Siemens
Module Type
Digital Output (DO)
Channel Count
32
Voltage Rating
24V DC
Output Current
0.5A
Status
Discontinued (Effective 01.10.2005)
Successor Model
6ES5451-4UA14
Installation Guidelines
Ensure the PLC rack power is completely disconnected before attempting to insert or remove the module to prevent electrical damage.
Verify that the module is correctly seated in the backplane connector before securing the locking mechanism.
Use appropriate shielded cabling for output signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate ventilation clearance around the S5 rack to ensure optimal thermal performance.
Handle the module using standard ESD (electrostatic discharge) protection protocols to prevent damage to internal circuitry.
FAQ
Is the 6ES5451-4UA13 still in production? No, this module was officially discontinued by Siemens on October 1, 2005. The recommended successor model is the 6ES5451-4UA14.
What is the primary application for this module? This module is intended for use in Siemens S5-135 and S5-155 PLC systems for controlling 24V DC field devices.
