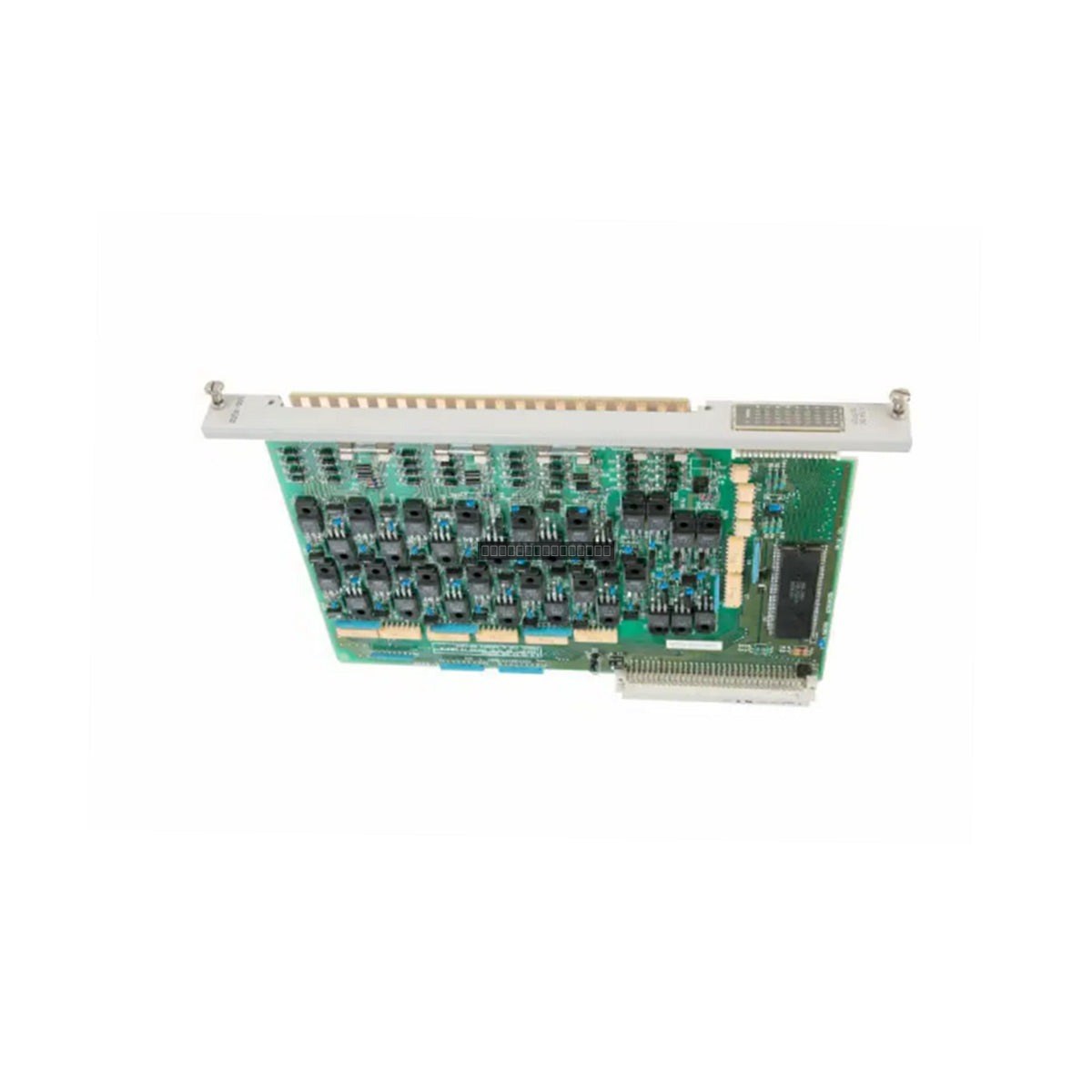

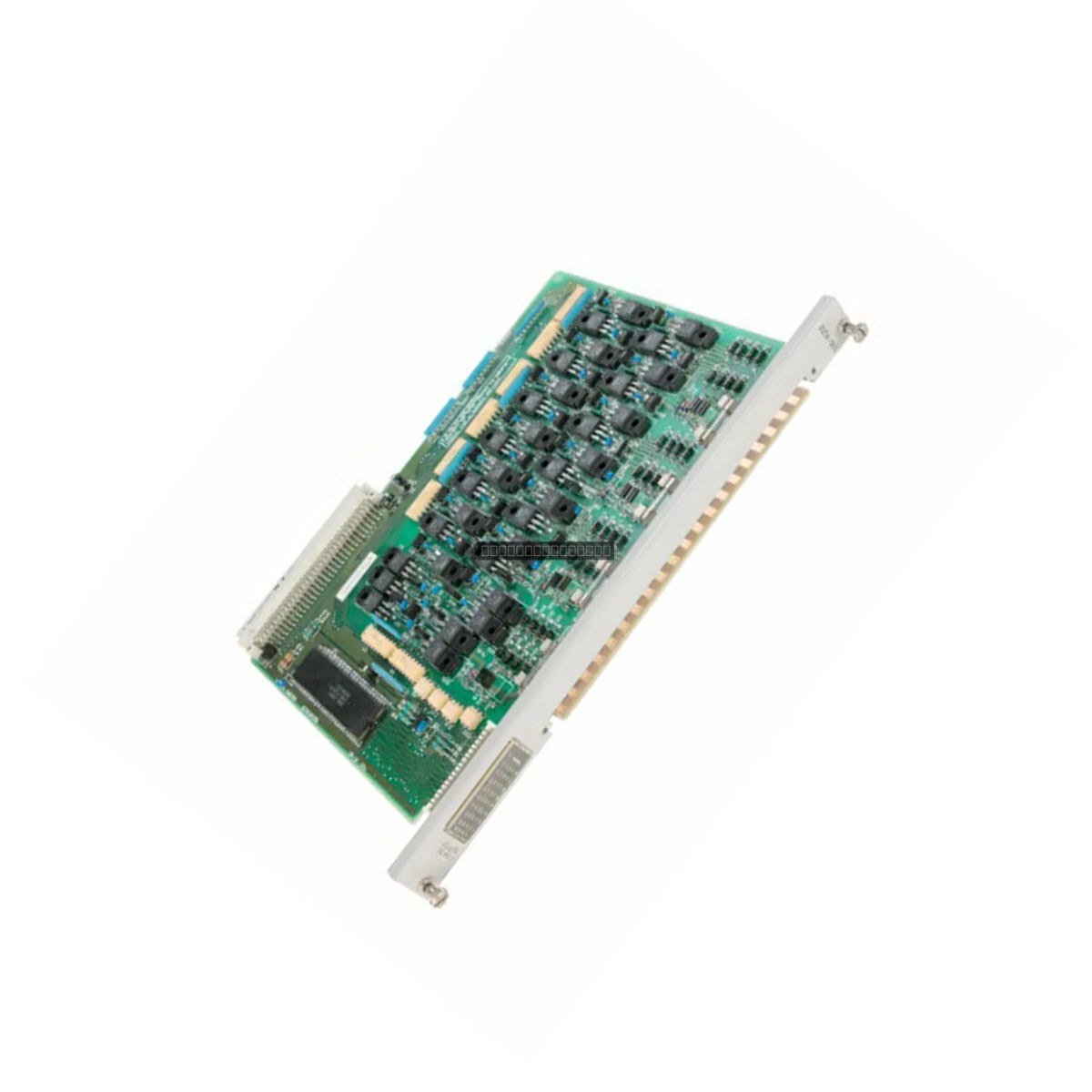

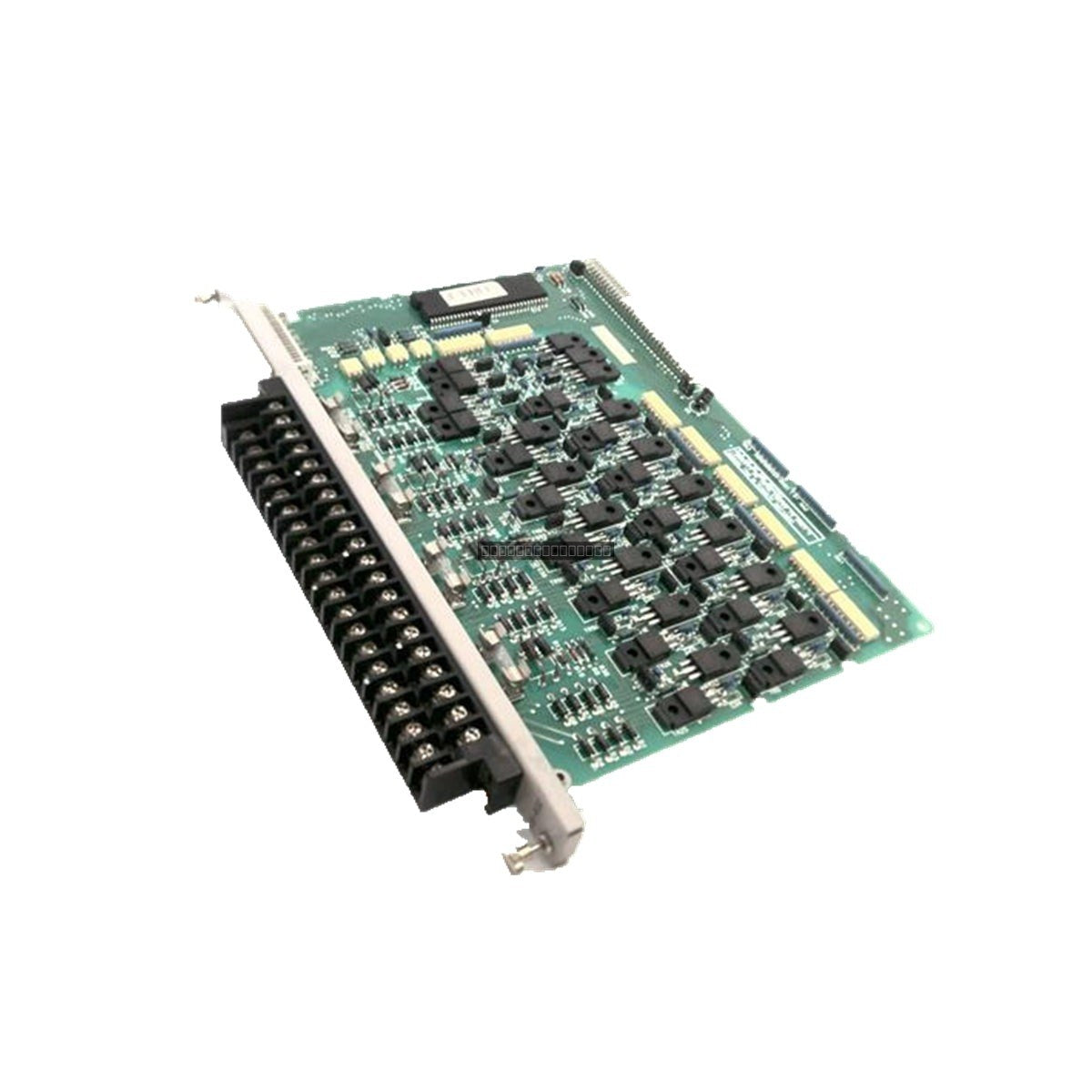

The Siemens 505-4532 is a high-density digital output module designed for the TI 505 series programmable logic controller (PLC) systems. This module provides 32 discrete output channels, facilitating reliable control of field devices within industrial automation environments. Engineered for standard 24V DC operation, this unit is capable of handling load currents of up to 0.5 Amps per point, making it suitable for driving solenoids, relays, and indicators in complex control loops.
Features
32-point digital output configuration for high-density I/O requirements.
Standard 24V DC operating voltage for compatibility with industrial control standards.
0.5 Amp output current capacity per channel.
Direct compatibility with the Siemens TI 505 controller architecture.
Robust design intended for long-term operation in demanding manufacturing environments.
Technical Specifications
Manufacturer
Siemens
Model Number
505-4532
Spare Part Number
PPX:505-4532
Module Type
Digital Output Module
Number of Points
32
Voltage Rating
24V DC
Output Current Rating
0.5 A per point
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the PLC system power is completely disconnected before attempting to install or remove the 505-4532 module from the rack.
Verify that the module is properly seated in the designated backplane slot to ensure reliable electrical communication with the CPU.
Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI) in high-noise environments.
Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
Follow standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal circuitry.
FAQ
Is the Siemens 505-4532 still in production?
No, this model has been officially discontinued by the manufacturer. We provide these units as refurbished or surplus stock to support legacy TI 505 systems.
What is the primary function of this module?
This module acts as an interface between the PLC processor and external field devices, providing 32 channels of 24V DC digital output to trigger actuators or signaling equipment.
