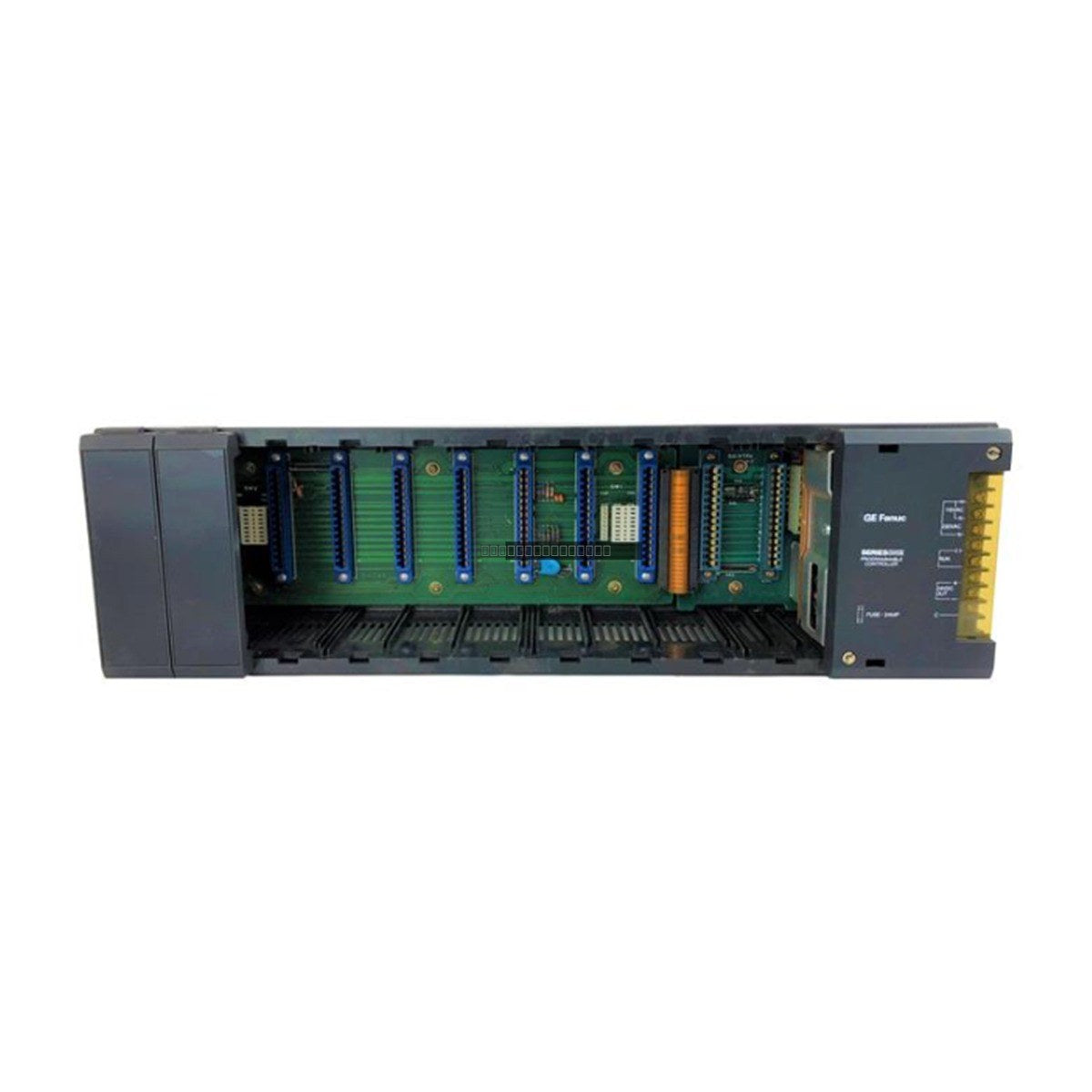

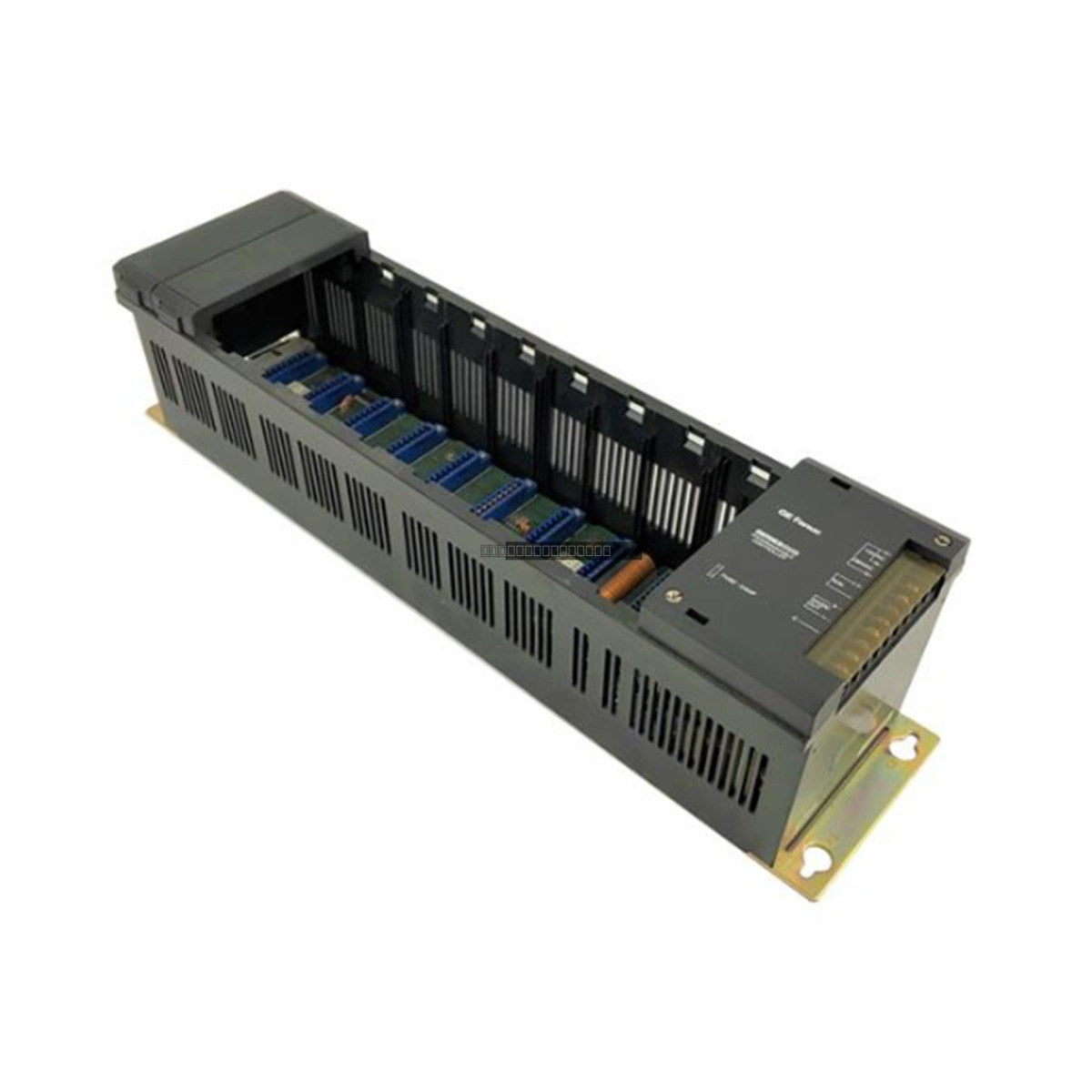

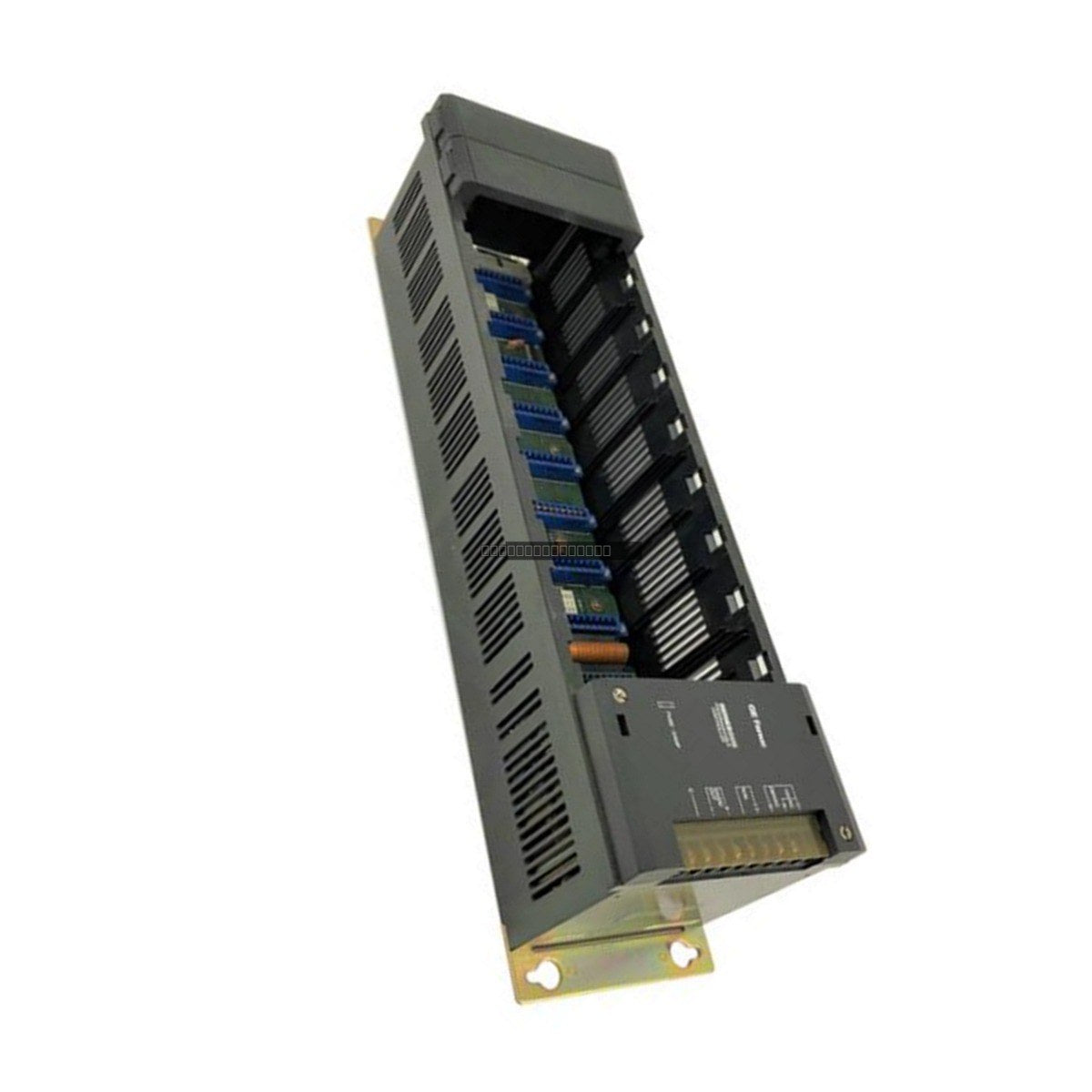

The GE Fanuc IC610CHS120 is a robust 10-slot I/O rack designed for the Series One automation platform. This chassis serves as the central mounting and communication backbone for modular I/O components, providing the necessary power distribution and signal routing for industrial control applications. It is engineered to support high-density configurations, making it suitable for complex automation tasks in discrete manufacturing, material handling, and assembly line environments. The integrated high-capacity AC power supply ensures stable operation by maintaining consistent voltage levels despite potential fluctuations in the industrial power supply.
Features
10-Slot Capacity: Provides high-density modular expansion within a single, compact chassis footprint.
Integrated Power Supply: Features a high-capacity AC supply designed to handle varying loads and minimize control-side power interruptions.
Flexible Power Input: Supports 115/230 VAC input, ensuring compatibility with diverse global power infrastructures.
Vibration-Resistant Design: Engineered for secure module seating and reliable signal integrity in high-speed machinery environments.
Simplified Maintenance: Utilizes dedicated terminal boards for field wiring, allowing for efficient deployment and streamlined troubleshooting of individual I/O points.
Technical Specifications
Model
IC610CHS120
Brand
GE Fanuc
Product Line
Series One
Slot Capacity
10 Slots
Power Input
115/230 VAC
Frequency Range
47 to 63 Hz
Operating Temperature
0 to 60 degC
Relative Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Mounting: Ensure the rack is mounted securely in a clean, dry, and vibration-dampened enclosure. Maintain adequate clearance around the unit to facilitate proper airflow and cooling.
Power Considerations: Verify that the supply voltage matches the 115/230 VAC rating before connection. Ensure the chassis is properly grounded to a low-impedance earth point to mitigate EMI and electrical noise.
Module Handling: Always power down the rack before inserting or removing I/O modules to prevent electrical arcing or damage to the backplane connectors.
Wiring: Route signal cables separately from high-voltage power lines to prevent induced noise. Use shielded cabling where necessary in high-EMI environments.
FAQ
Is the IC610CHS120 compatible with all Series One modules?
The IC610CHS120 is designed specifically for the Series One ecosystem. Please verify that your specific I/O modules are compatible with the Series One backplane architecture before installation.
What is the required operating environment for this rack?
The unit is designed for standard industrial environments with an operating temperature range of 0 to 60 degC and non-condensing humidity levels up to 95 percent.
