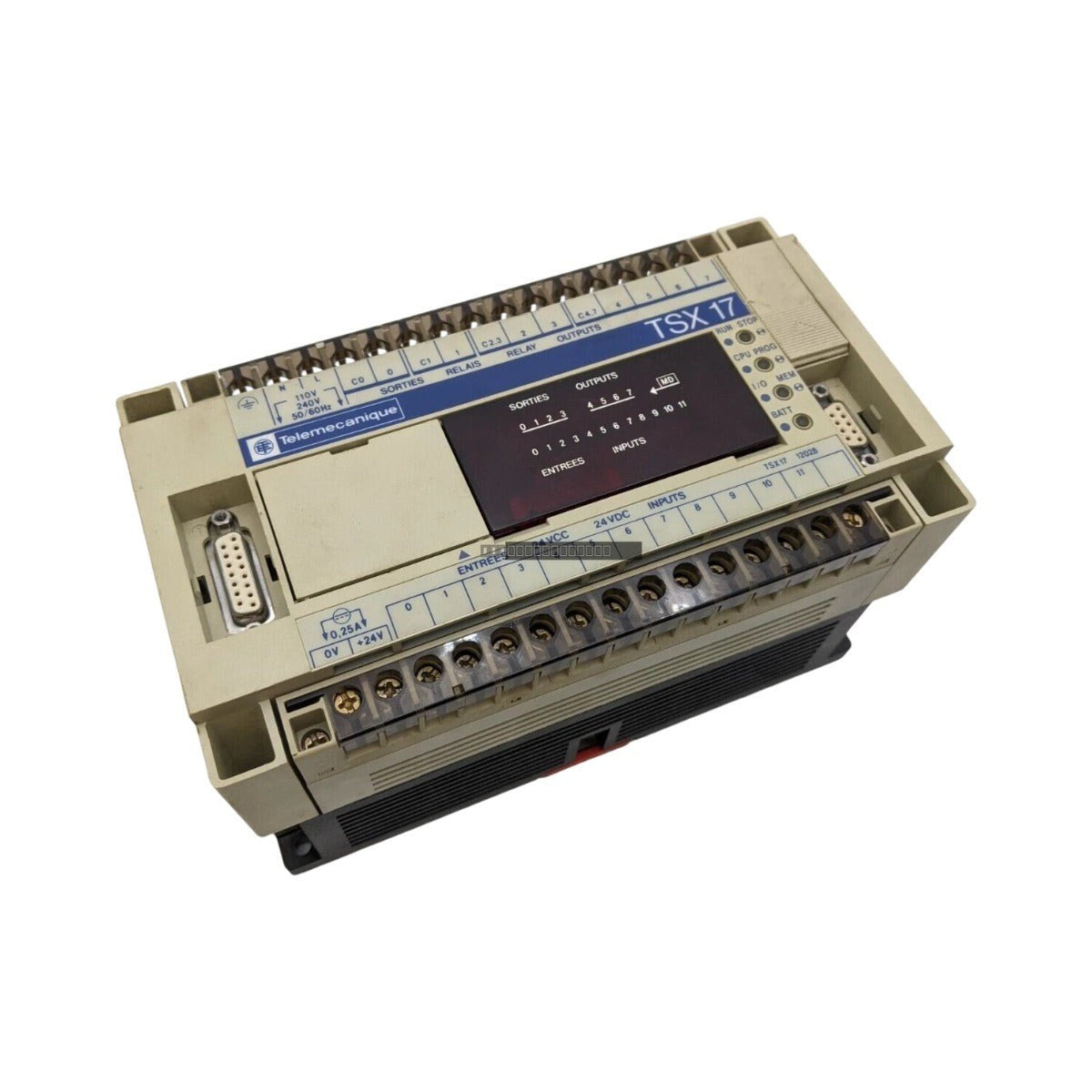

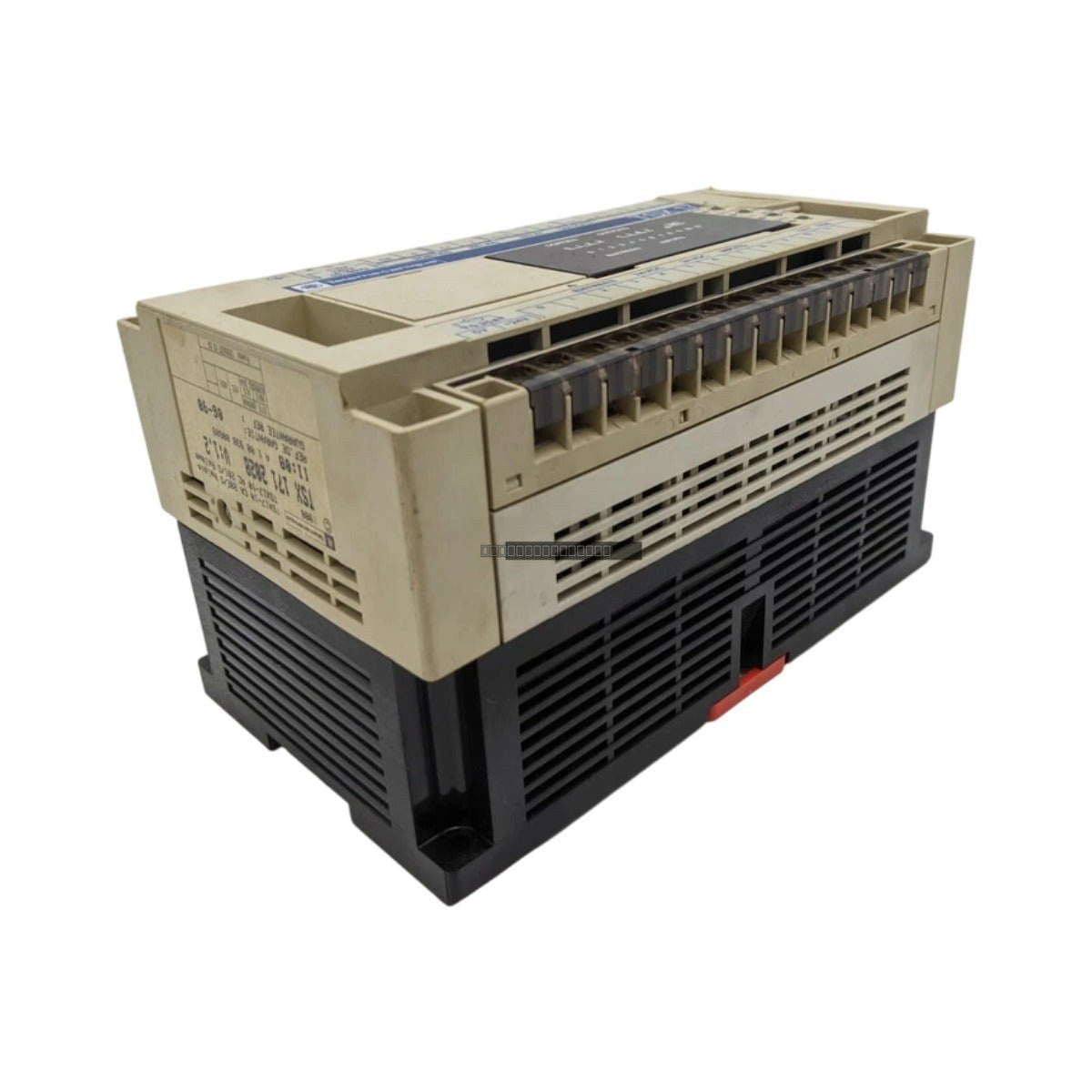

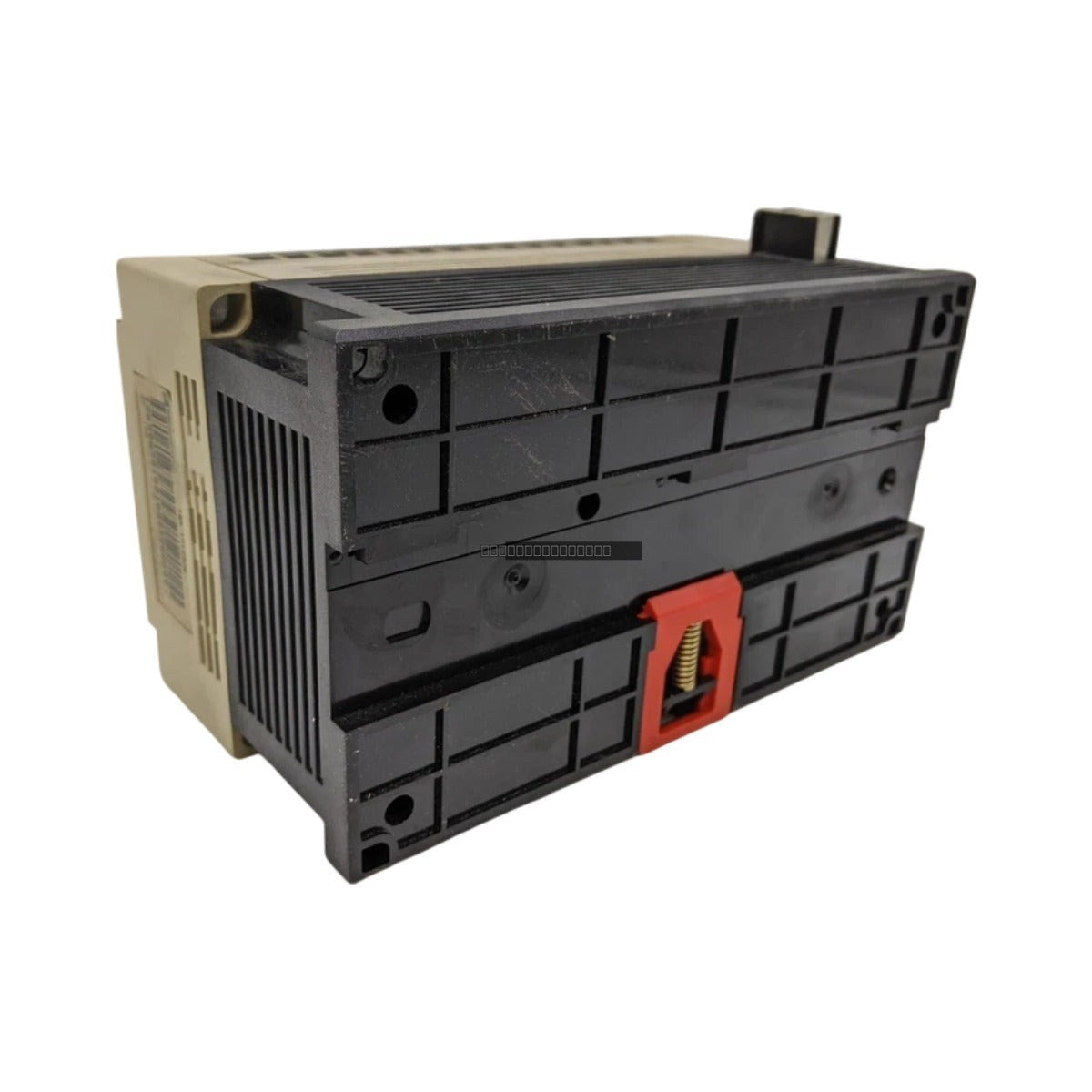

Schneider Telemecanique TSX1712028 Programmable Logic Controller

Description

The Schneider Telemecanique TSX1712028 is a compact, self-contained programmable logic controller (PLC) designed for the TSX 17 series platform. This unit serves as an all-in-one automation solution for localized control tasks, providing reliable performance in demanding industrial settings such as conveyor systems, pump stations, and auxiliary cooling infrastructures. By integrating processing capabilities and mixed I/O into a single housing, the TSX1712028 reduces the need for complex external bus interconnections, thereby enhancing system stability and minimizing potential points of failure in critical control loops.

Features

• Integrated CPU with non-volatile memory storage to maintain logic integrity during power interruptions.
• 12 discrete input channels featuring optical isolation to protect the internal data bus from field voltage transients.
• 8 rugged electromechanical relay outputs capable of handling mixed AC and DC circuit paths.
• Front-mounted LED indicators providing real-time diagnostics and status monitoring for rapid troubleshooting.
• Direct AC line power operation, eliminating the need for external power supply modules.

Applications

This controller is suited for small-to-medium scale automation tasks where space is constrained and high reliability is required. Common applications include industrial process monitoring, sequence control for manufacturing machinery, and automated control of auxiliary equipment in power generation or mining facilities.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a well-ventilated enclosure to maintain operating temperatures within the specified 0 to 55 deg C range.
• Always disconnect power before inserting or removing any wiring or communication cables to prevent electrical arcing or damage to the I/O circuitry.
• Use shielded cabling for input signals to minimize interference from high-EMI sources such as variable frequency drives or large motors.
• Verify that relay output loads do not exceed the 2.0 A continuous current rating to prevent contact welding or degradation.
• Ensure proper grounding of the PLC chassis to a common industrial earth point to mitigate noise and surge risks.

FAQ

Is the TSX1712028 compatible with modern programming software?
The TSX 17 series is a legacy platform. Programming typically requires specific legacy software tools and the appropriate serial programming cable interface designed for the Telemecanique TSX 17 series architecture.

Can the relay outputs handle both AC and DC loads?
Yes, the electromechanical relay outputs are designed to switch both AC and DC circuits within the specified voltage and current limits. Ensure that inductive loads are equipped with proper suppression devices to extend relay life.
