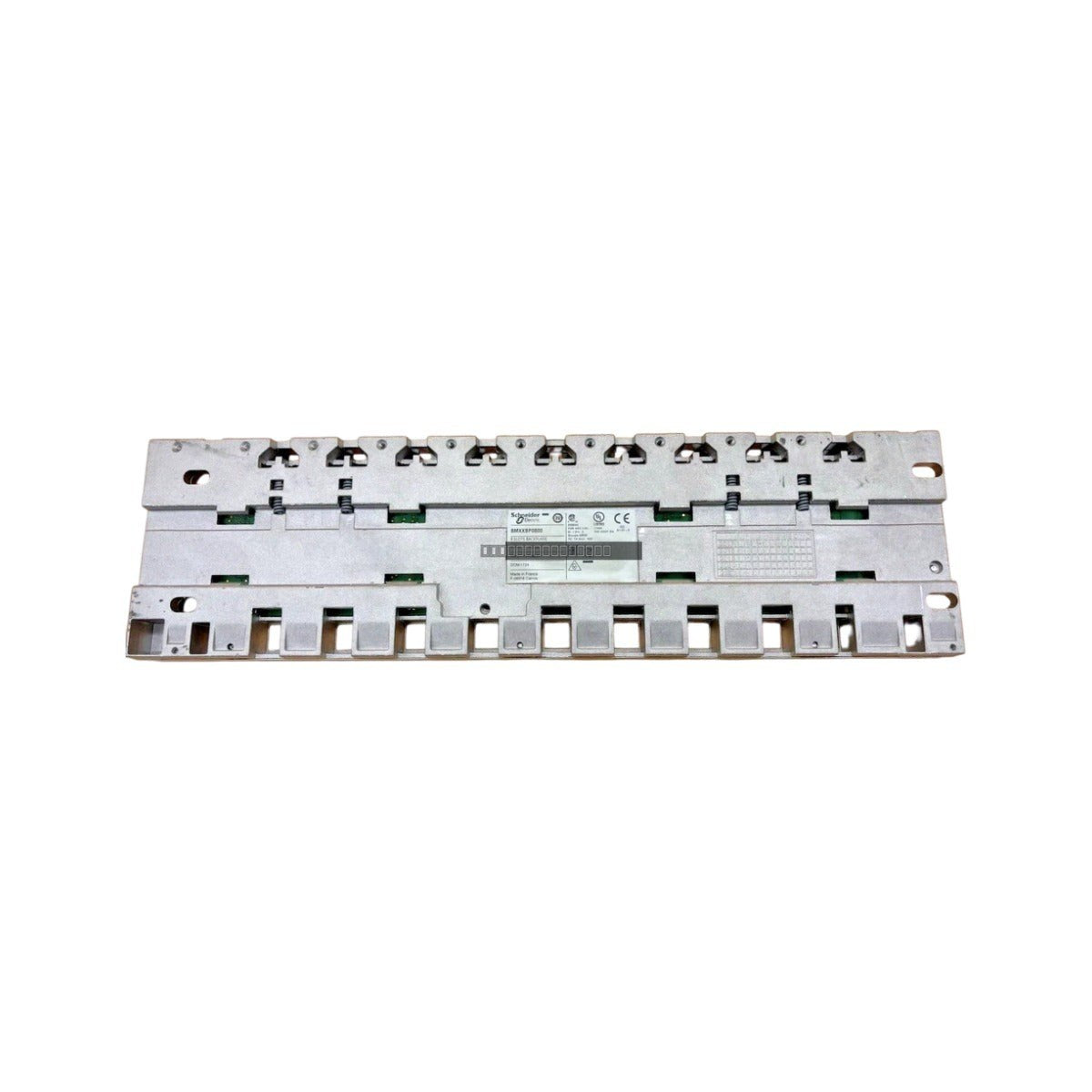

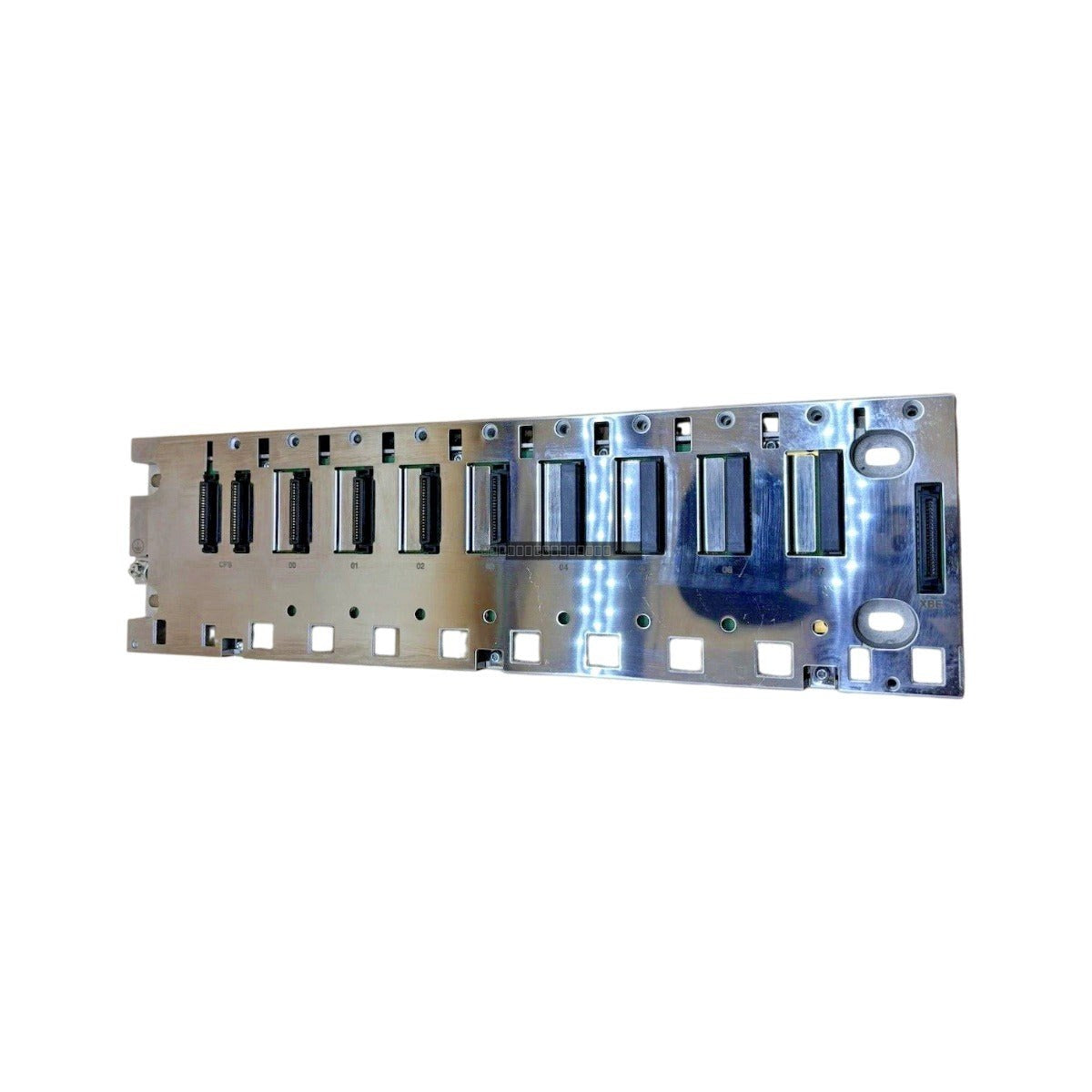

The Schneider Electric BMXXBP0800 is a high-performance 8-slot backplane chassis designed for the Modicon X80 and Modicon M340 automation platforms. This unit serves as the essential physical and electrical backbone for industrial control systems, facilitating secure module seating and reliable communication across the system bus. Engineered for demanding environments such as power generation, petrochemical processing, and heavy manufacturing, this chassis ensures consistent signal integrity and mechanical stability for your processor, power supply, and I/O modules.
Key Features
Supports up to 8 functional modules plus a dedicated power supply slot.
High-speed backplane bus architecture for seamless data exchange between CPU and I/O.
Rugged mechanical design to resist vibration and prevent hardware misalignment.
Integrated grounding terminals to mitigate electromagnetic interference (EMI).
Versatile mounting options for both panel installation and standard DIN rail configurations.
Technical Specifications
Model
BMXXBP0800
Brand
Schneider Electric
Slot Capacity
8 Slots
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
10 to 95 percent (non-condensing)
Vibration Resistance
3 gn (per IEC 60068-2-6)
Power Consumption
1.5 W (internal bus logic)
Installation Guidelines
Ensure the rack is mounted on a flat, rigid surface to prevent frame distortion.
When using DIN rail mounting, ensure the rail is securely fastened to the backplane support.
Always power down the system before inserting or removing modules from the chassis to prevent electrical arcing or damage to the backplane pins.
Maintain proper grounding by connecting the chassis frame to a reliable protective earth (PE) point.
Keep the installation area free from excessive dust, moisture, and corrosive gases to ensure long-term connector reliability.
FAQ
Is the BMXXBP0800 compatible with older Modicon M340 systems? Yes, this chassis is part of the Modicon X80 platform, which is designed to be fully compatible with M340 processors and standard X80 I/O modules.
Does this chassis include a power supply? No, the BMXXBP0800 is a passive backplane chassis. The power supply module must be purchased separately and installed in the dedicated power supply slot.
