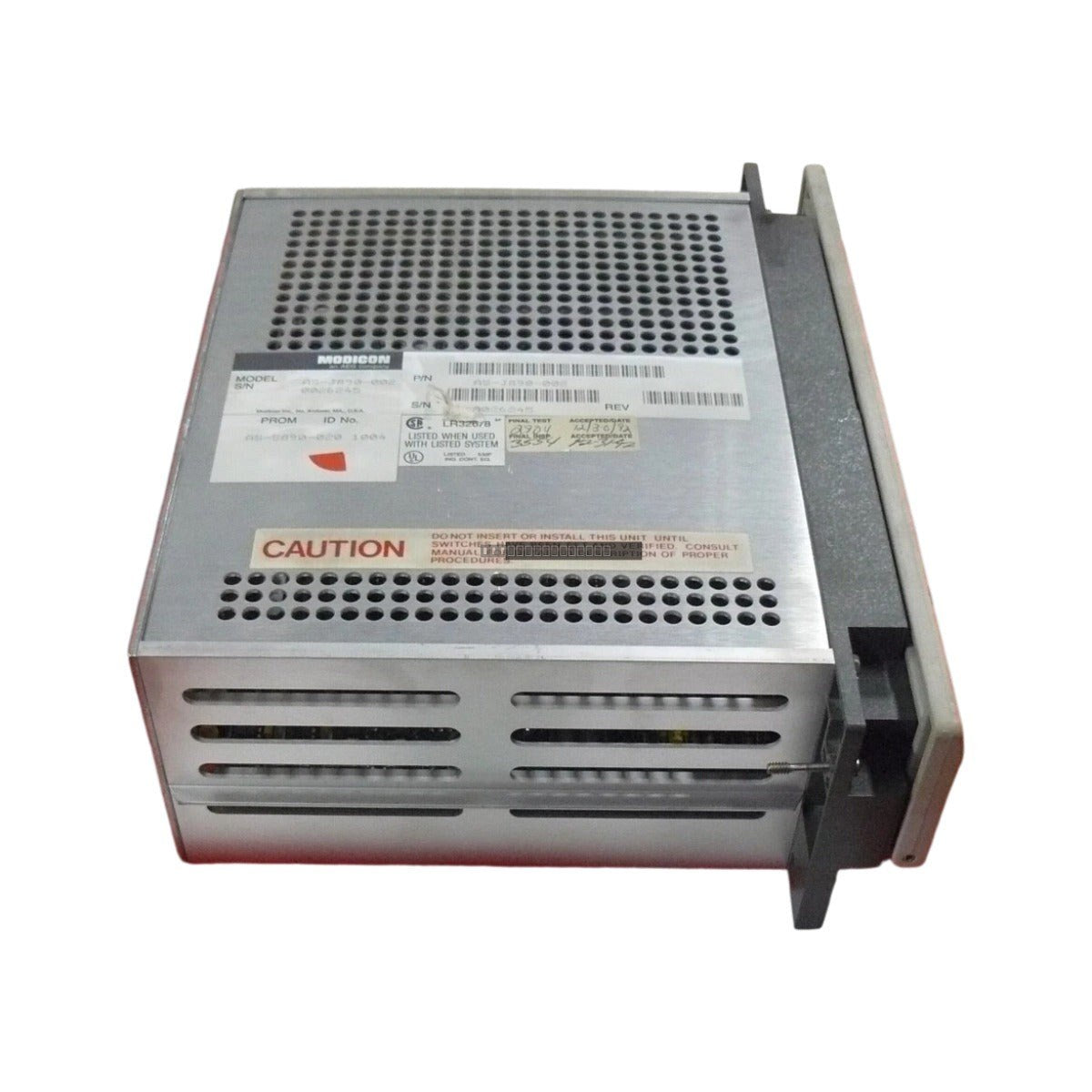

Schneider Modicon Quantum ASJ890002 Remote I/O Adapter Module

Description

The ASJ890002 interface module is an essential remote I/O adapter designed for the Schneider Electric Modicon Quantum automation platform. This module facilitates reliable, deterministic communication between remote I/O drops and the central controller, making it well-suited for demanding industrial environments such as power generation, chemical processing, and heavy mining. By providing robust data link management and rapid fault isolation, the module ensures continuous operation and minimizes unplanned system downtime in distributed control architectures.

Features

• Supports dual-channel redundancy for high-availability network configurations.
• Integrated physical layer transceivers optimized for high-speed token-pass bus networks.
• Dedicated internal logic for packet encapsulation, error detection, and independent address routing.
• Front-panel LED indicators for real-time diagnostics of network activity, channel health, and internal status.
• Designed for seamless integration with standard coaxial media in Modbus Plus / Remote I/O environments.

Applications

This module is typically deployed in large-scale distributed control systems where remote I/O drops must communicate reliably with a primary PLC over extended distances. It is commonly found in critical infrastructure applications requiring high fault tolerance and deterministic data exchange.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the module from the backplane.
• Verify that the module is fully seated in the Quantum rack slot to ensure reliable backplane connection.
• Use shielded RG-6 coaxial cabling and ensure proper grounding to minimize EMI/RFI interference.
• Maintain adequate clearance around the module for ventilation to prevent overheating during operation.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

What is the primary function of the ASJ890002?

The ASJ890002 acts as a remote I/O adapter for the Modicon Quantum system, enabling the controller to communicate with remote I/O drops over a Modbus Plus network.

Does this module support redundant cabling?

Yes, the module features a dual-channel design, allowing for redundant cable configurations to maintain network integrity in the event of a single cable failure.

What power supply does this module require?

The module is powered directly through the Quantum backplane bus, requiring 5 VDC at 750 mA.
