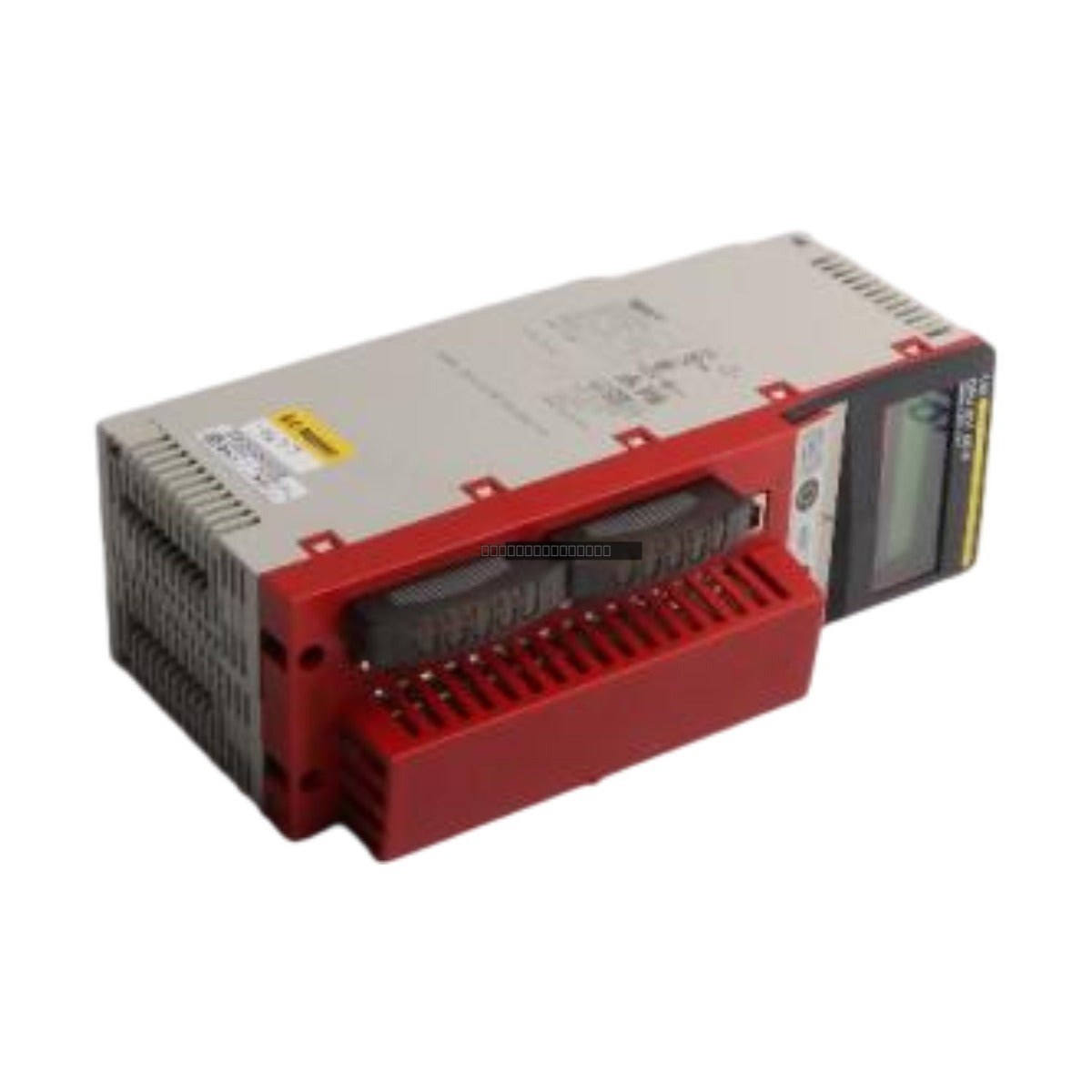

Schneider 140CPU65160 Modicon Quantum Central Processing Unit

The Schneider Electric 140CPU65160 is a high-performance central processing unit engineered for the Modicon Quantum automation series. Designed for demanding industrial environments, this Unity processor integrates a 266 MHz RISC engine capable of managing complex logic, floating-point calculations, and simultaneous network communication tasks. It is widely utilized in sectors such as chemical processing, power generation, and large-scale manufacturing to ensure reliable, high-speed control of automated processes.

Features

• High-Speed Processing: Equipped with a 266 MHz RISC processor for rapid execution of control logic and complex algorithms.
• Memory Capacity: Features 1024 kB of total internal RAM, with 768 kB dedicated to program execution and the remainder available for data logging and system variables.
• Expansion Capability: Includes an integrated PCMCIA Type III slot for local storage of application data or configuration files.
• Multi-Protocol Support: Provides native connectivity through Modbus Plus, RS-232/RS-485 serial interfaces, and a dedicated USB port for programming and diagnostics.
• Robust Diagnostics: Onboard logic continuously monitors system health, parity, and bus transactions to maintain operational integrity.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap when handling the CPU module to prevent damage from electrostatic discharge.
• Power Management: Ensure the system backplane is powered down before inserting or removing the processor module.
• Mounting: Secure the module firmly into the designated Quantum backplane slot, ensuring the locking tabs are fully engaged to maintain electrical contact.
• Wiring: Use shielded cables for all communication interfaces to minimize signal interference from high-voltage equipment or EMI sources.
• Environment: Maintain the module within the specified 0 to 60 deg C operating range and ensure adequate ventilation in the control cabinet to prevent heat buildup.

FAQ

Q: Does this CPU support Unity Pro software?
A: Yes, the 140CPU65160 is designed specifically for operation within the Modicon Quantum platform using Unity Pro engineering software.

Q: Can I expand the memory of this unit?
A: Yes, the module includes a front-accessible PCMCIA Type III slot for memory expansion cards.

Q: What is the maximum power draw for this processor?
A: The unit has a maximum continuous current draw of 2.5 A at 5 VDC from the backplane.
