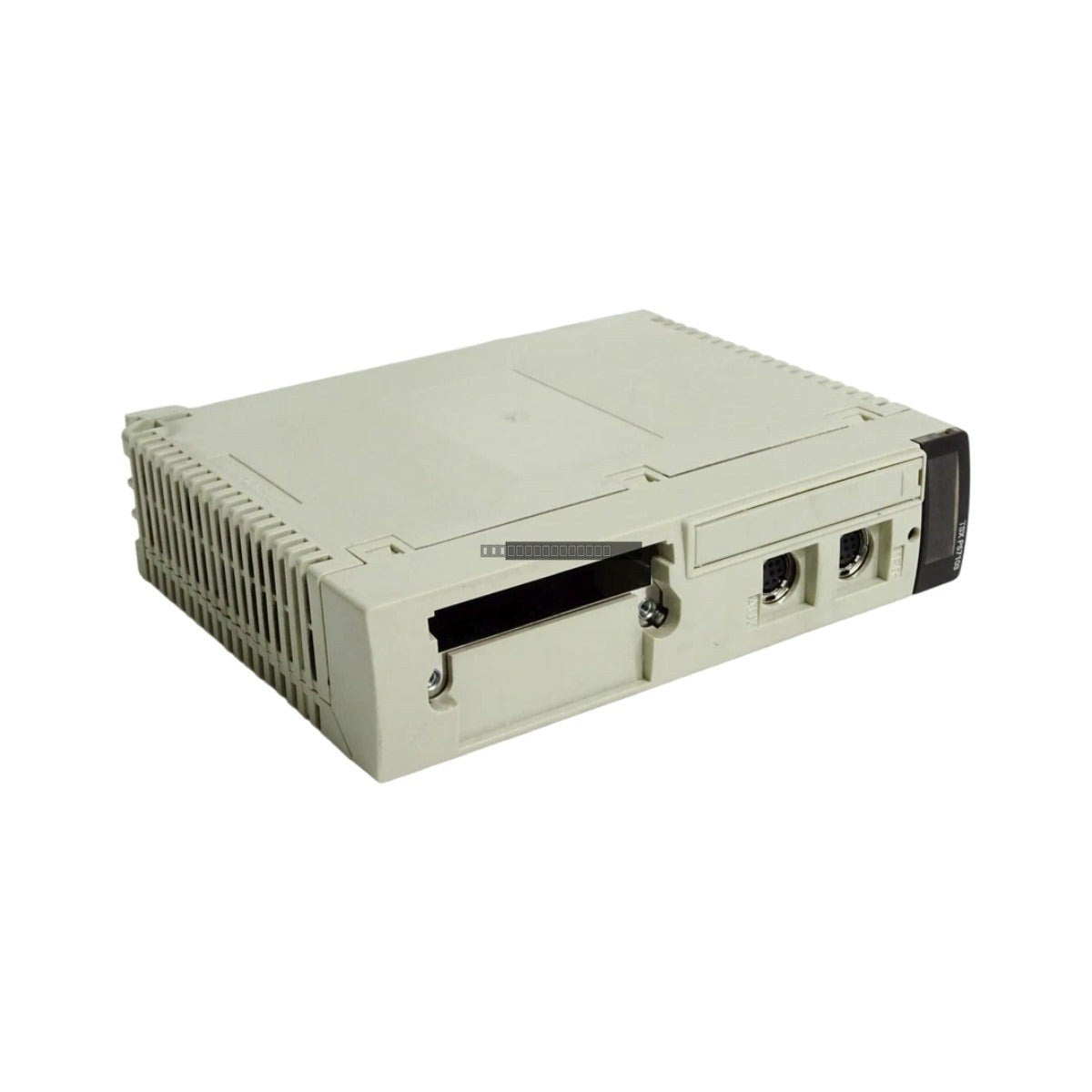

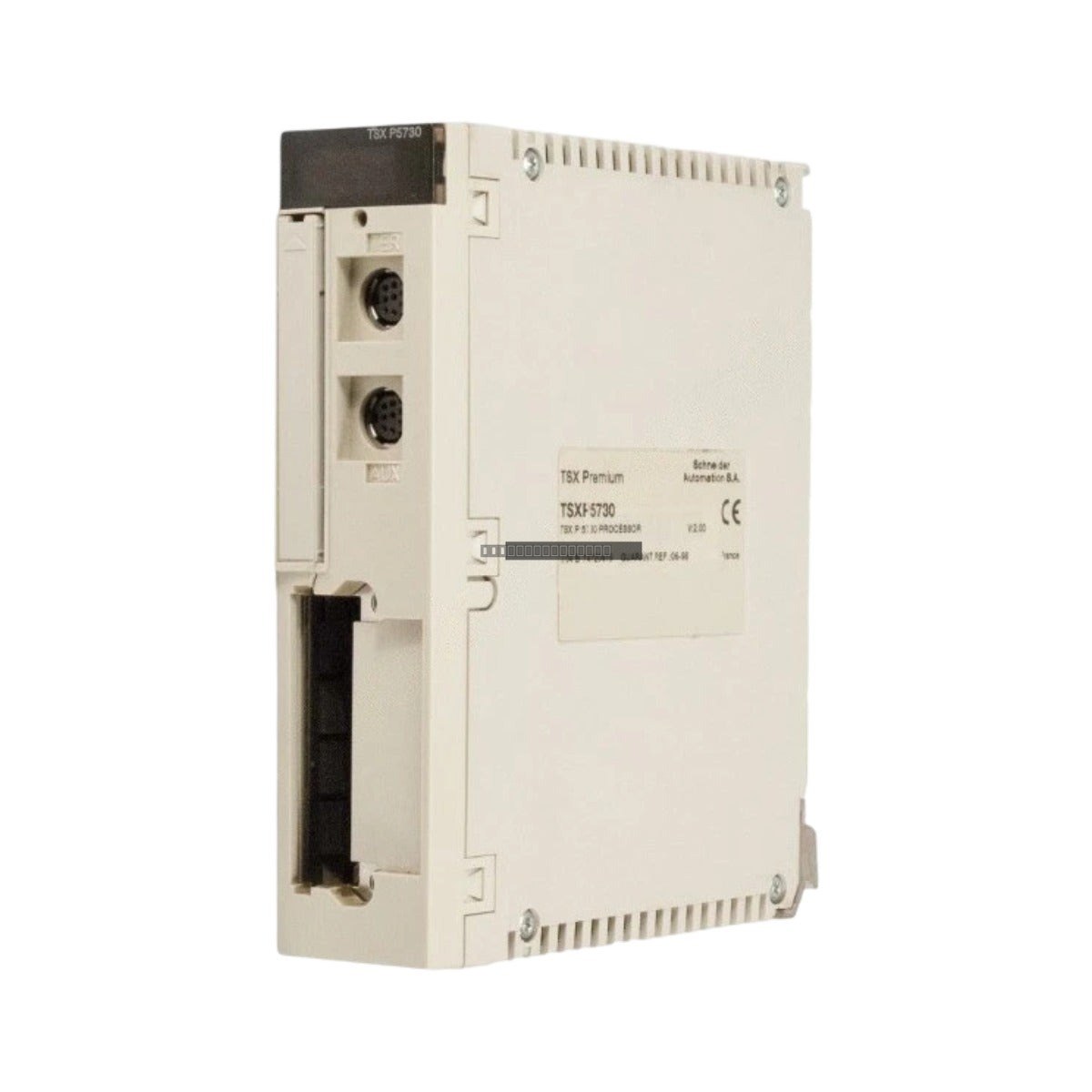

Schneider Modicon Premium TSXP5730 PLC Processor Module

Product Overview

The TSXP5730 is a high-performance central processing unit (CPU) designed for the Schneider Electric Modicon Premium automation platform. This controller is engineered to manage complex logic, high-speed cycle execution, and sophisticated register mapping in demanding industrial environments. It serves as the primary intelligence hub for large-scale infrastructure, including water treatment facilities, mining operations, and petrochemical processing plants, ensuring stable closed-loop control and efficient real-time instrumentation management.

Features

• Advanced microprocessor architecture optimized for high-speed logic execution.
• Integrated internal RAM for dynamic register storage and structured code management.
• PCMCIA slot for memory expansion, supporting Flash or SRAM cards for extended data logging.
• Native support for industrial communication standards, including Uni-Telway and Modbus.
• Front-mounted diagnostic LEDs providing real-time status of processing, memory, and bus traffic.
• Robust backplane mounting system designed for reliable grounding and EMI noise mitigation.

Applications

The TSXP5730 processor is suitable for a wide range of industrial automation tasks, such as:

• Distributed control in municipal water and wastewater systems.
• Real-time process monitoring in thermal power generation.
• Complex sequence control for mining and material handling networks.
• High-availability logic processing in petroleum refinery automation.

Technical Specifications

Installation Guidelines

• Ensure the PLC backplane is properly grounded to a clean earth reference to minimize electrical noise.
• Always power down the rack assembly before inserting or removing the processor module to prevent damage to the backplane pins.
• Handle the module using ESD-safe practices to protect sensitive internal components.
• Verify that the ventilation path is clear; maintain adequate clearance around the module to prevent overheating during operation.
• Ensure all communication cables are routed away from high-voltage power lines to maintain signal integrity.

FAQ

What is the primary function of the TSXP5730?
The TSXP5730 acts as the main CPU for the Modicon Premium system, responsible for executing user logic, managing I/O communication, and handling system-wide diagnostics.

Can the memory of this module be upgraded?
Yes, the module features a dedicated PCMCIA slot that allows for the installation of additional memory cards for increased program and data storage capacity.

What power source does this module require?
The unit is powered directly through the Modicon Premium backplane, requiring a 5 VDC supply at 1.55 A.
