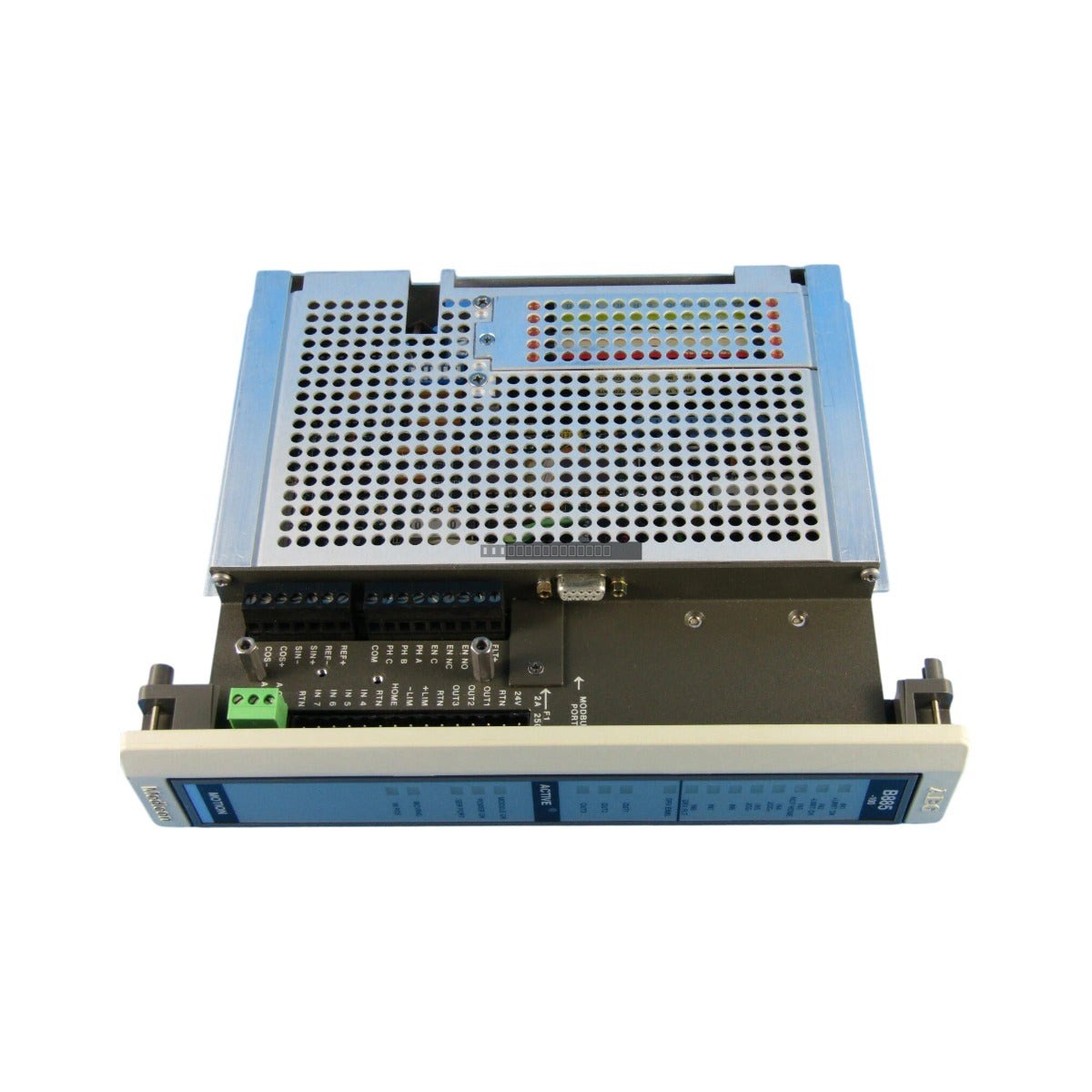

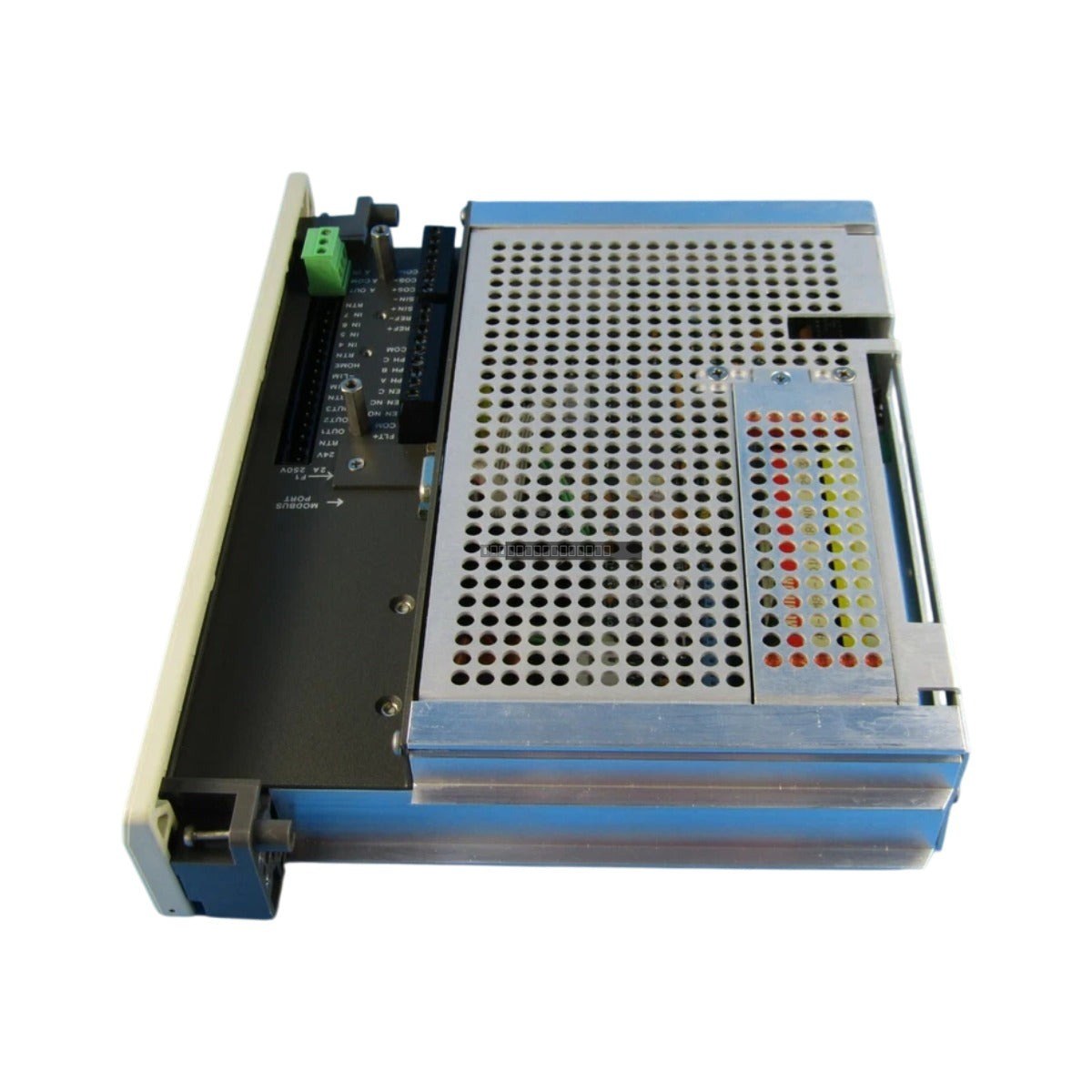

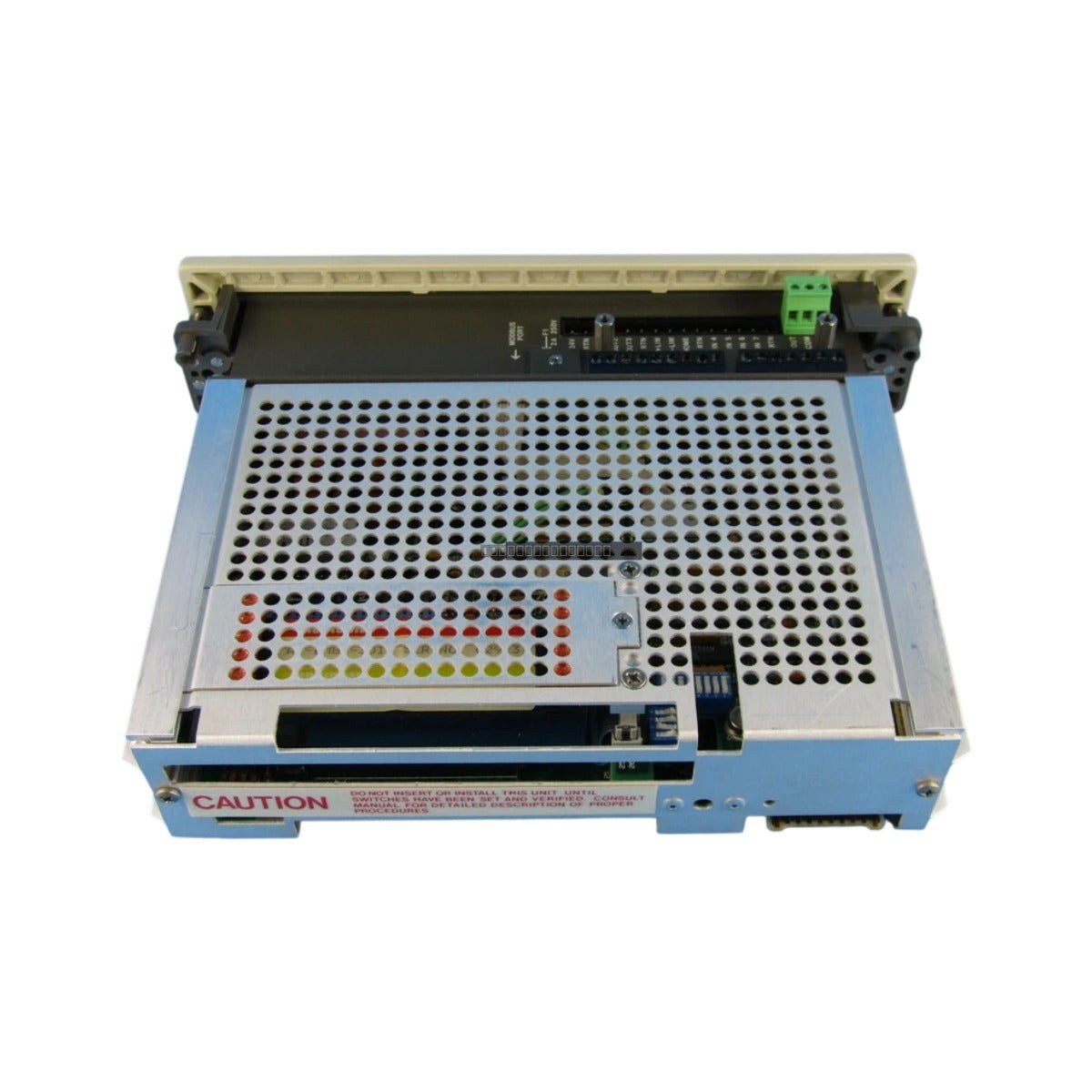

Schneider Modicon 800 Series ASB885100 Diagnostic Module

Description

The Schneider Electric ASB885100 is a dedicated diagnostic module designed for the Modicon 800 Series I/O backplane environment. This component serves as a critical tool for hardware loop validation and structural diagnostic isolation, ensuring that signal paths remain consistent across the I/O rack. Engineered for demanding industrial environments, including power generation, petrochemical processing, and heavy mining, the module provides a reliable method for verifying signal integrity and backplane communication without requiring extensive system reconfigurations.

Features

• Facilitates rapid loop debugging and hardware validation within 800 Series chassis.
• Reduces maintenance downtime by isolating diagnostic routines from active process control logic.
• Features on-board status indicators for real-time monitoring of bus continuity and logic power stability.
• Utilizes solid-state trace circuits to perform background verification of the backplane bus matrix.
• Seamless integration with host CPU firmware via standard configuration parameters.

Applications

This diagnostic module is primarily deployed in high-availability automation systems where signal path verification is essential for operational safety and efficiency. Typical applications include monitoring signal integrity in complex I/O racks, validating hardware loop configurations during system commissioning, and performing routine diagnostic checks to prevent systematic data loss in critical industrial control loops.

Technical Specifications

Installation Guidelines

• Ensure the 800 Series chassis is de-energized before inserting or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in a single standard slot to ensure proper backplane pin alignment.
• Use appropriate ESD precautions when handling the module to protect internal solid-state components.
• Confirm that the module status LEDs are active upon system startup to verify successful bus communication.
• Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the ASB885100 module?

The module is designed to perform hardware loop validation and diagnostic isolation within Modicon 800 Series backplanes, allowing operators to verify signal paths and bus integrity without full system reconfigurations.

Is this module compatible with all Modicon 800 Series chassis?

Yes, the module is designed to populate a single standard slot within the 800 Series architecture; however, always verify your specific CPU firmware version for compatibility during initial integration.
