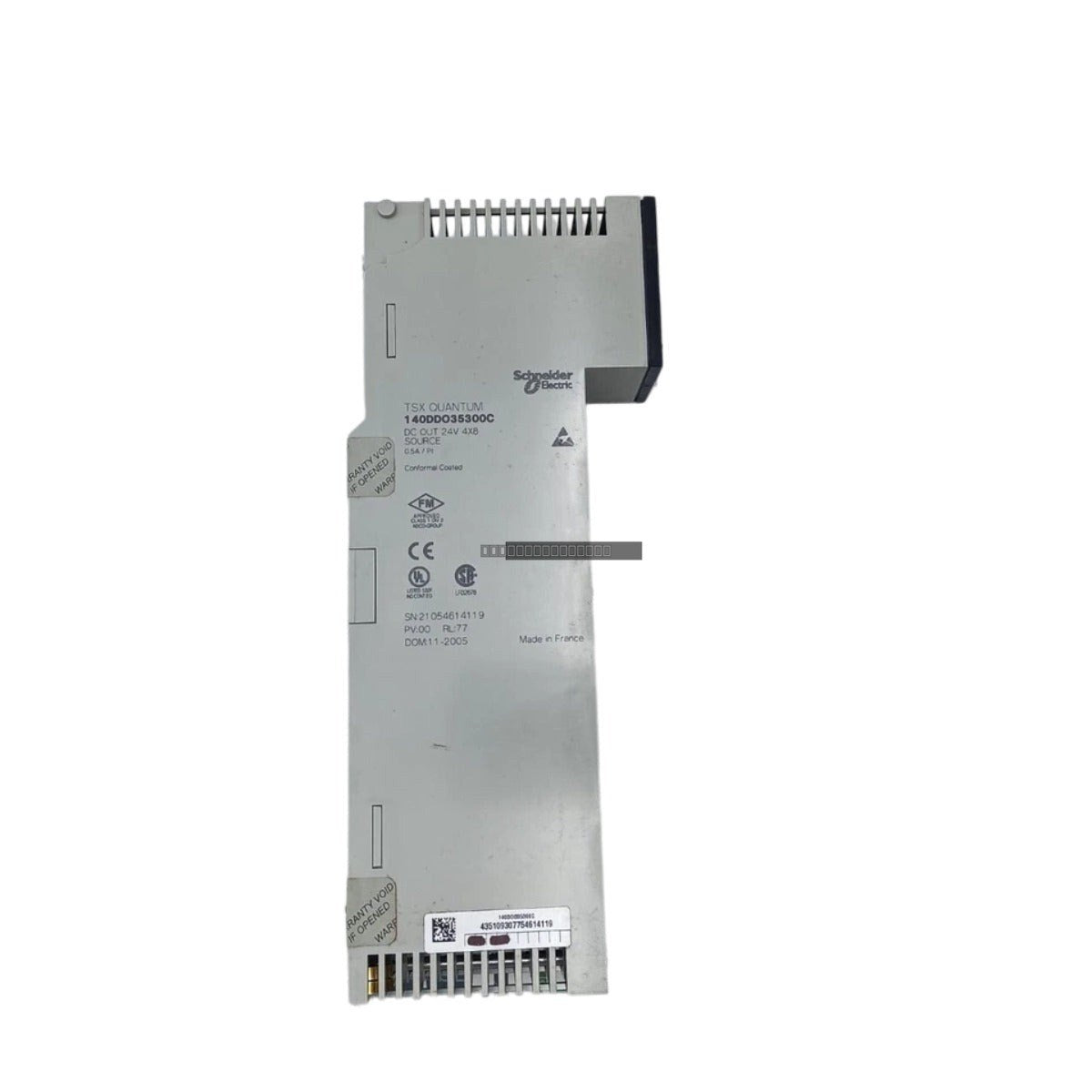

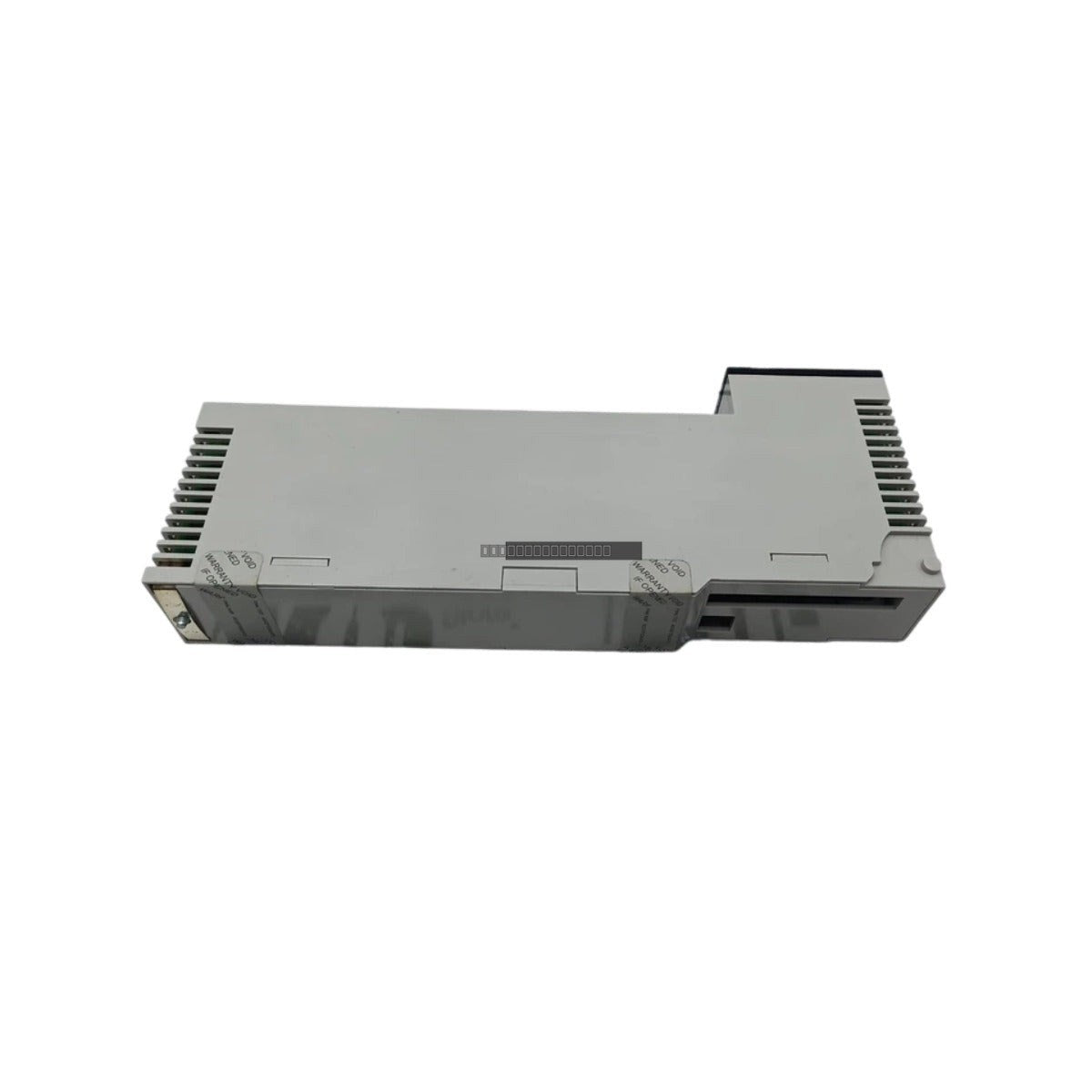

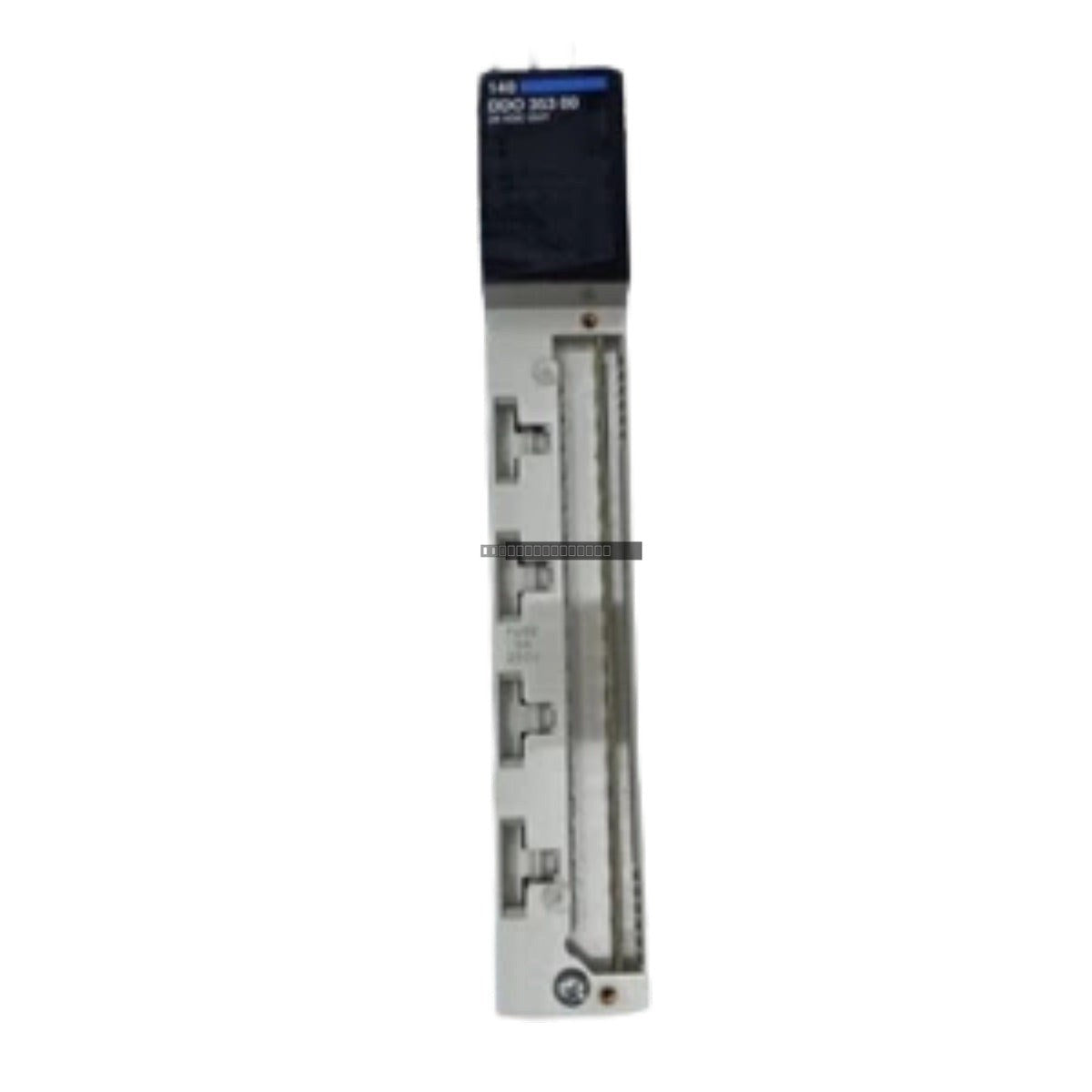

The Schneider Electric 140DDO35300C is a high-density discrete output module designed for the Modicon Quantum automation series. It provides reliable switching capabilities for industrial control systems, offering 32 output points that are suitable for driving various field devices such as relays, solenoids, and indicator lamps.
Features
32 discrete output points arranged in four isolated groups of eight channels each.
24 VDC output voltage with a capacity of 0.5 A per channel.
Robust short-circuit and overload protection for enhanced system safety.
500V isolation between field wiring and the backplane bus to ensure signal integrity.
Fast response time of 1 ms, suitable for time-critical automation tasks.
Applications
This module is engineered for use in Modicon Quantum PLC racks, serving demanding industrial environments such as manufacturing lines, process control systems, and infrastructure automation where high-density discrete output control is required.
Technical Specifications
Manufacturer
Schneider Electric
Model
140DDO35300C
Series
Modicon Quantum
Number of Points
32
Output Voltage
24 VDC
Output Current
0.5 A per channel
Group Current
4 A maximum per group
Isolation
500V (groups to backplane)
Response Time
1 ms
Protection
Short circuit and overload
Installation Guidelines
Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot and secured with the integrated locking mechanism.
Use appropriate shielded cabling for field connections to minimize electromagnetic interference (EMI).
Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
Follow standard ESD (Electrostatic Discharge) procedures when handling the module to protect internal components.
FAQ
What is the total current capacity per group for this module?
The 140DDO35300C supports a maximum current of 4 A per group of eight channels.
Does this module require external power for the outputs?
Yes, the module is designed to switch 24 VDC field power. Ensure the field power supply is correctly wired to the module terminals according to the technical documentation.
