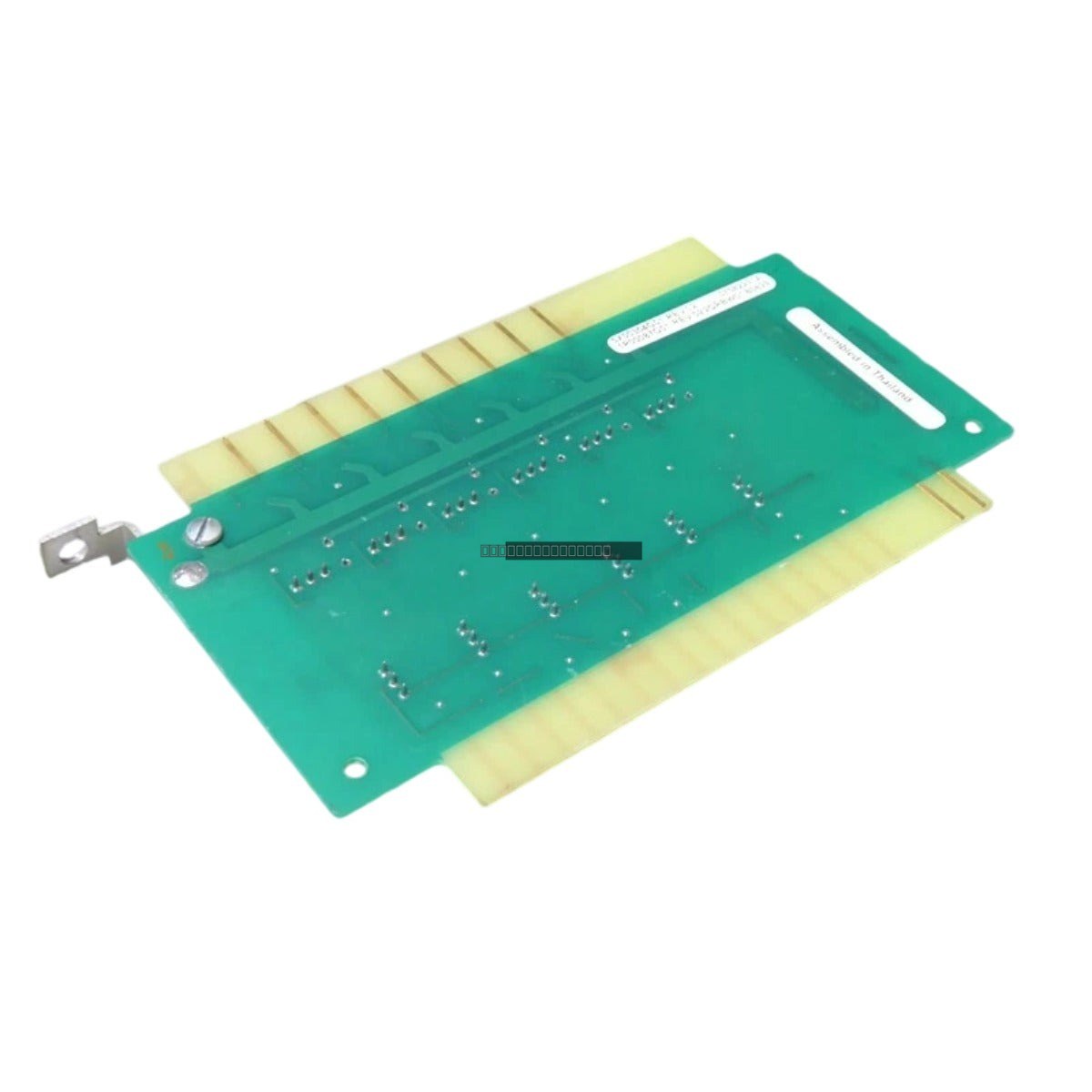

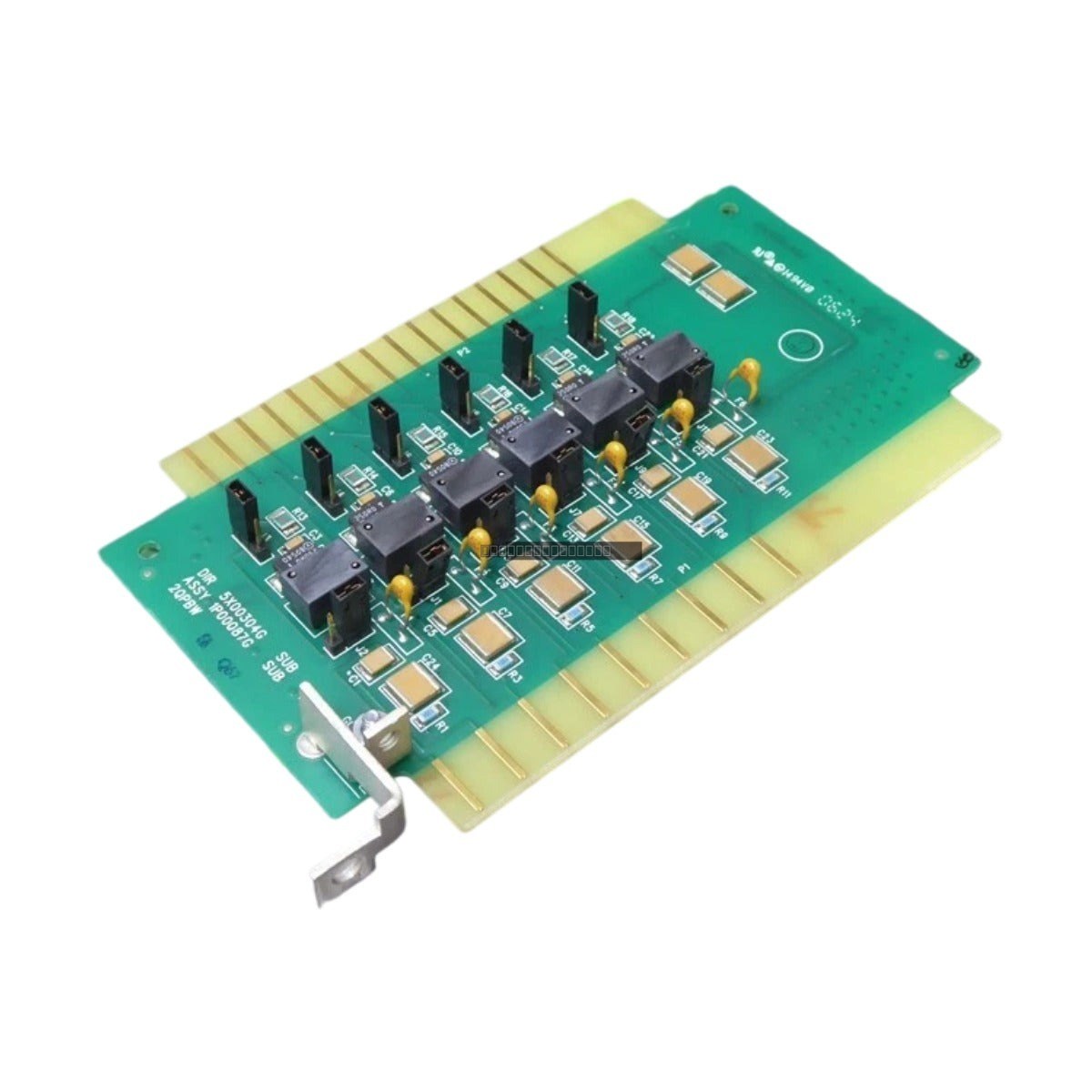

The Emerson Ovation 5X00304G01 is a dedicated migration personality module engineered to bridge legacy QPBX system architectures with the contemporary Ovation Distributed Control System (DCS). This interface component is essential for industrial facilities and power generation plants performing phased system upgrades, allowing operators to modernize their control layer while maintaining existing field-side logic and I/O configurations.
Features
Facilitates seamless integration between legacy QPBX hardware and modern Ovation DCS controllers.
Reduces commissioning complexity and minimizes production downtime during control system migrations.
Designed for high-reliability signal translation and protocol handling.
Optimized electronic design for stable operation and low thermal output.
Compact form factor compatible with standard Ovation I/O rack mounting interfaces.
Applications
This module is specifically intended for use in industrial control environments where legacy QPBX systems are being transitioned to the Ovation platform. It is widely utilized in power plants and process manufacturing facilities to ensure data integrity and operational continuity during large-scale system modernization projects.
Technical Specifications
Model Number
5X00304G01
Manufacturer
Emerson Ovation
Compatibility
QPBX to Ovation DCS
Mounting
Standard I/O Rack Slot
Operating Temperature
0 deg C to 60 deg C
Typical Power Consumption
5 W
Installation Guidelines
Ensure the control system power is fully disconnected before attempting to insert or remove the module from the I/O rack.
Handle the module using proper ESD (electrostatic discharge) protection practices to prevent damage to internal circuitry.
Verify that the I/O slot is clean and free of debris to ensure a secure physical and electrical connection.
Confirm proper seating within the rack backplane to prevent intermittent signal loss.
Maintain adequate spacing within the cabinet to allow for proper airflow and heat dissipation.
FAQ
What is the primary role of the 5X00304G01 module?
This module acts as a communication bridge that translates legacy signaling patterns from QPBX systems into the format required by the modern Ovation DCS, enabling a smooth migration path without requiring a complete overhaul of field equipment.
Can this module be used in standard DCS rack environments?
Yes, the 5X00304G01 is designed to be installed directly into standard Ovation I/O rack slots, making it a direct-fit solution for system upgrades.
