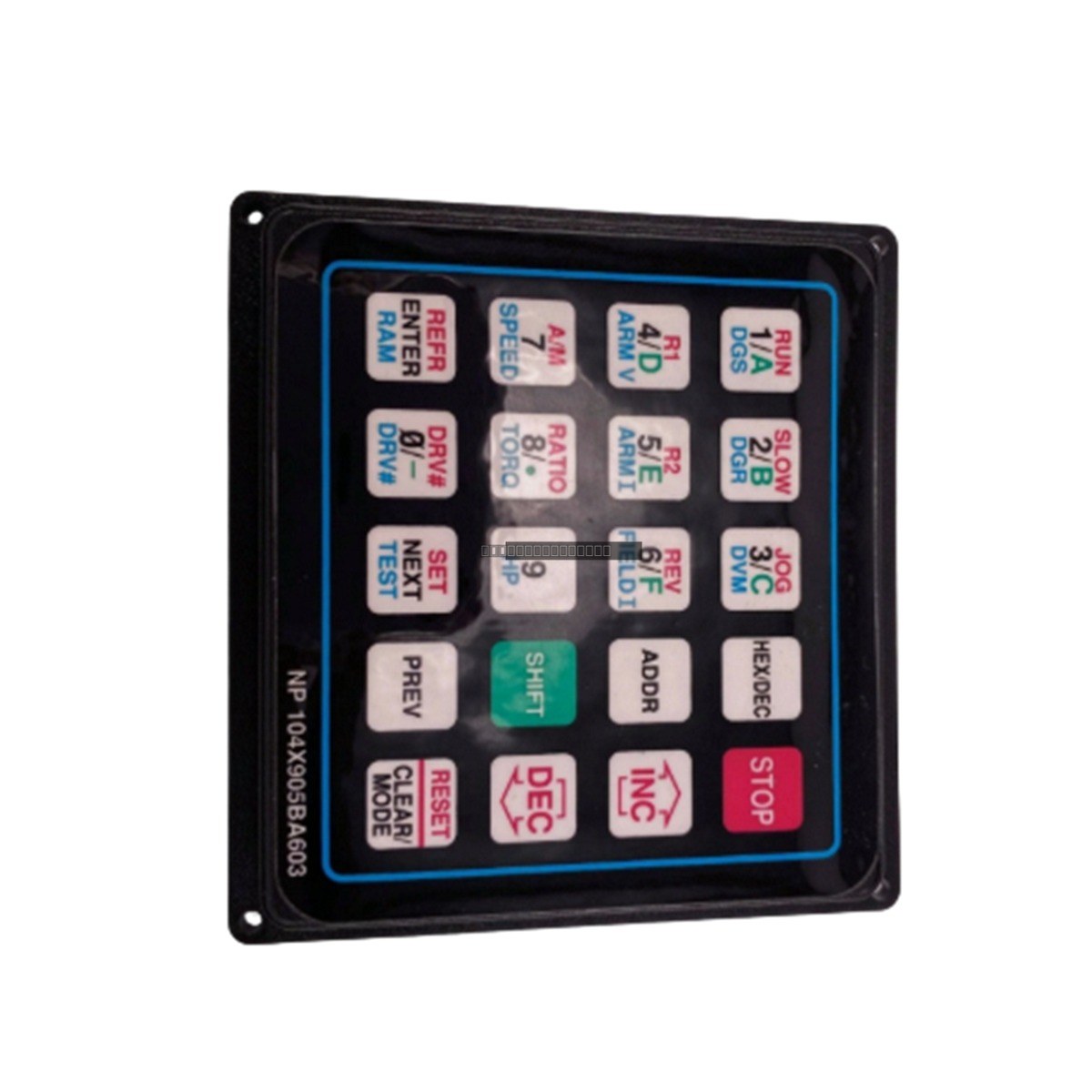

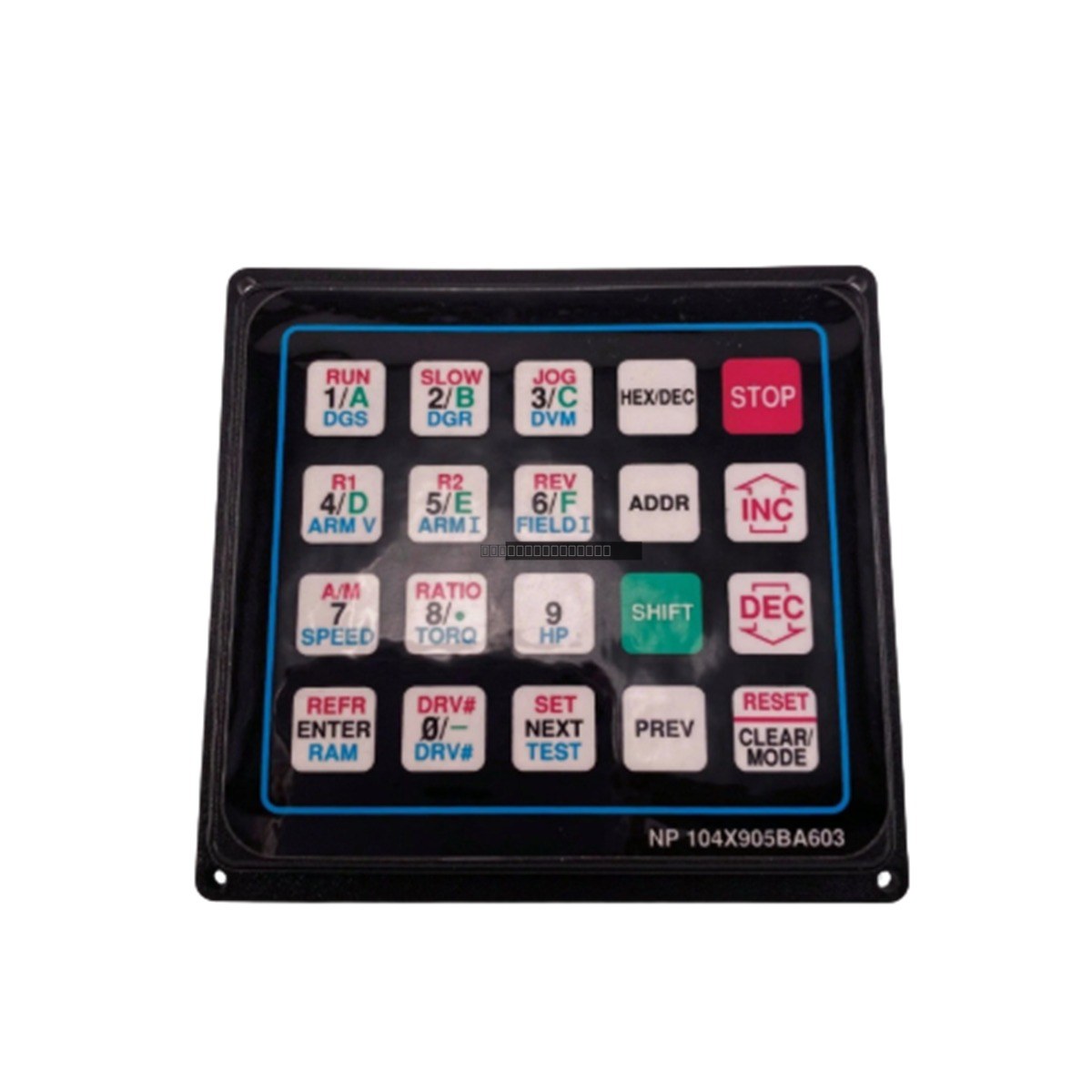

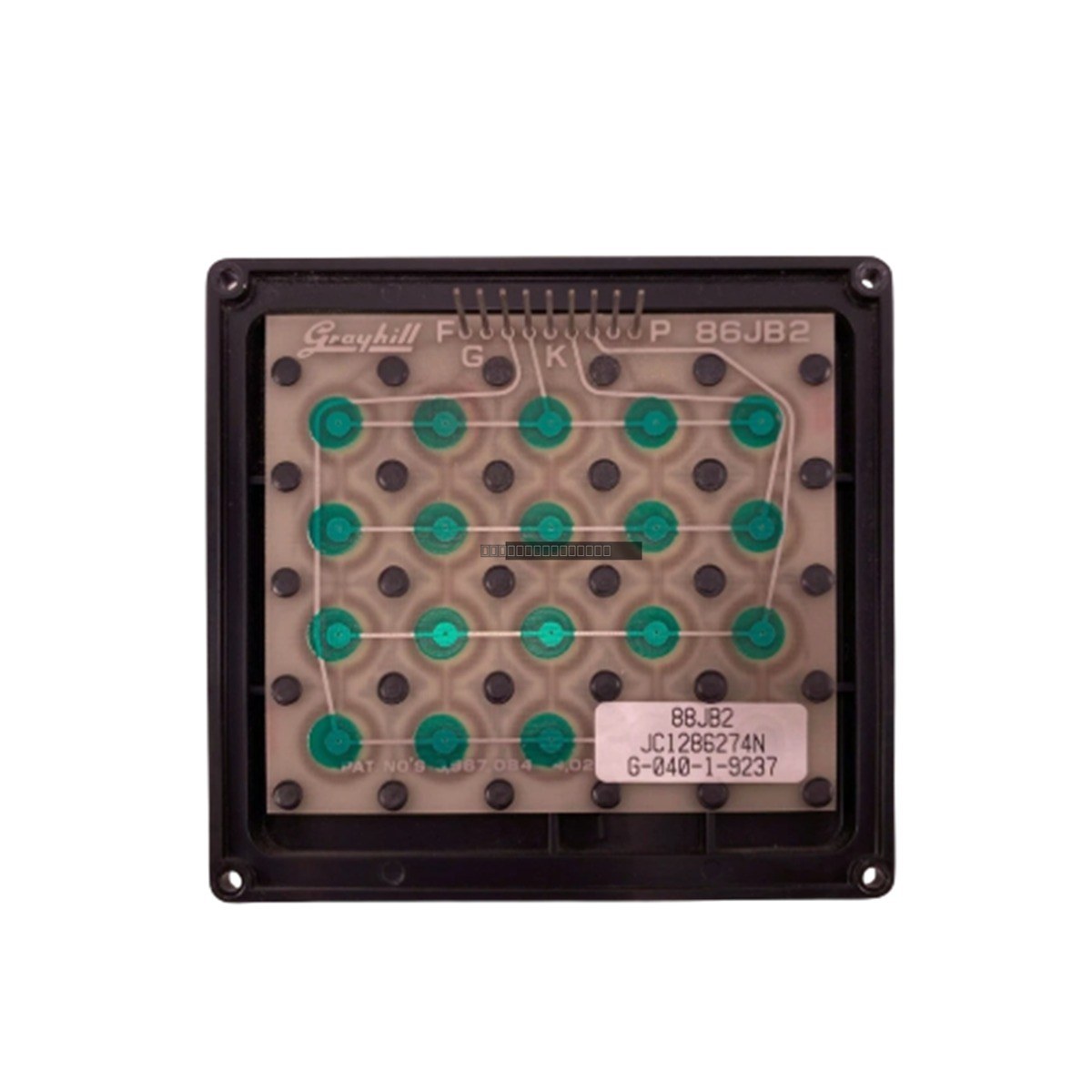

The GE Fanuc NP104X905BA603 serves as a critical Operator Interface (HMI) module within the Mark V Turbine Control System. This unit functions as the primary control hub for power generation environments, enabling operators to initiate turbine start/stop sequences, manage load distribution, and perform real-time system monitoring. By integrating alarm logging and comprehensive unit diagnostics, this module provides the visibility required to minimize downtime and protect industrial assets from operational anomalies.
Features
Communication Protocol: Engineered for seamless integration with the Stage Link network using the ARCNET LAN standard via coaxial cabling.
Flexible Connectivity: Supports long-distance communication configurations through the use of fiber optic adapters and signal repeaters, suitable for distributed control room architectures.
Data Processing: Capable of rendering complex data streams from the host PLC into intuitive, user-defined graphical formats using the OptiSCREEN Editor.
Access Control: Includes robust security features, such as password-protected parameter modification, to prevent unauthorized adjustments to turbine logic and safety settings.
Versatile Input Support: Compatible with various human-machine input devices, including keyboards, trackballs, mice, and touch-screen interfaces.
Technical Specifications
Model
NP104X905BA603
Brand
GE Fanuc
Series
Mark V
Module Type
Operator Interface Unit
Network Protocol
ARCNET LAN (Stage Link)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the control cabinet is properly grounded to prevent EMI interference with the ARCNET communication signals.
Verify that all coaxial or fiber optic connections are secure and free of debris before commissioning.
Always power down the Mark V rack before inserting or removing the module to prevent electrical damage to the backplane connectors.
Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range of 0 to 60 deg C.
Handle with standard ESD (Electrostatic Discharge) precautions during installation to protect sensitive internal components.
FAQ
What is the primary function of the NP104X905BA603? This module acts as the HMI for the Mark V system, providing the interface for operators to monitor and control turbine operations, alarms, and system logic.
Does this module support fiber optic connections? Yes, it supports long-distance integration using fiber optic cables and appropriate signal repeaters when the control panel and HMI are located in different areas of the facility.
What software is used to format the logic displays? The module is designed to work with the OptiSCREEN Editor to render graphical data for the operator.
