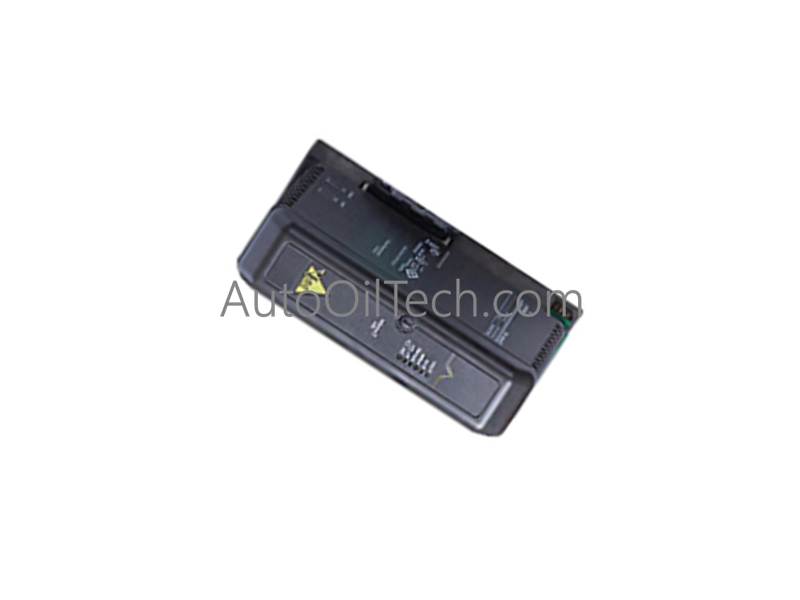

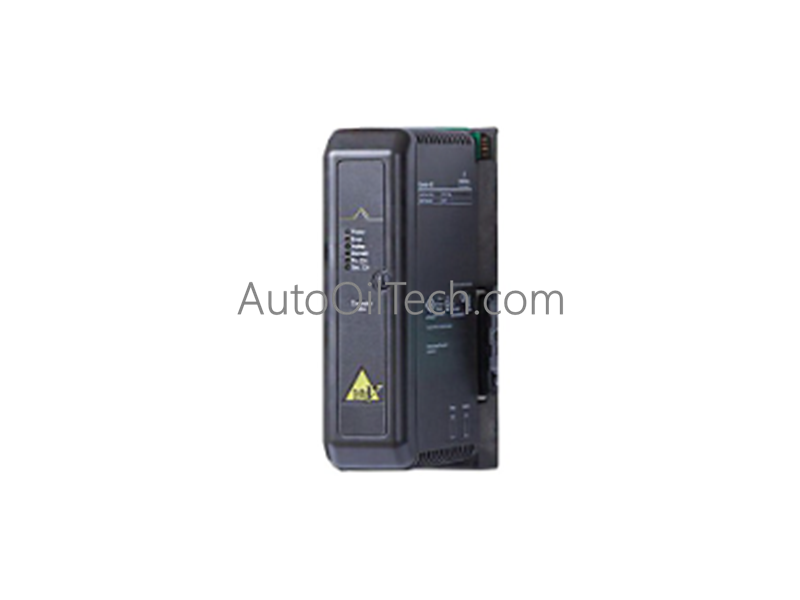

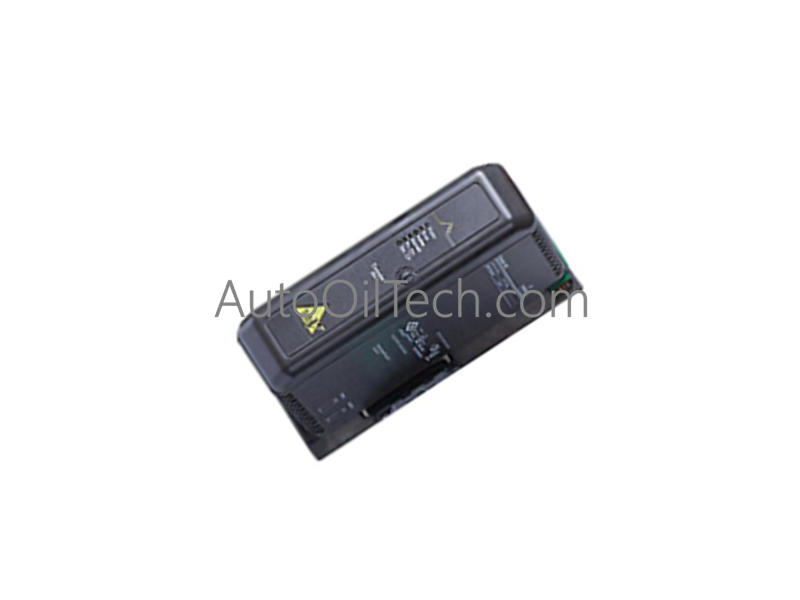

The Emerson KJ3201X1-BA1, also cataloged as the KJ3201X1-BA1 Dry Contact Input Module, operates as a dedicated hardware component for discrete binary signal acquisition within Emerson DeltaV DCS networks.
Hardware Specifications
Parameter
Specification
Model
KJ3201X1-BA1
Brand
Emerson
Origin
USA / As Manufactured
Weight
0.55 lbs
Dimensions
Standard DeltaV Carrier Slot
Operating Temp
-40 to +70 deg C
Power Consumption
24 VDC System Field Power
Category
PLCs/Machine Control / PLC Module/Rack
Input Signal Type
Dry Contact / Digital Input
Channel Count
8 Channels
DCS Signal Conditioning & Isolation Performance
4-20 mA HART Loop Protocol Coexistence: Integrates discrete dry-contact sensing channels on parallel signal paths alongside continuous 4-20 mA HART instrumentation buses.
Channel-to-Channel Isolation: Provides galvanic isolation barriers across individual discrete input channels to mitigate common-mode noise and prevent ground loop interference.
FOUNDATION Fieldbus Bus Coordination: Transmits field-side binary switch state changes across local backplane communication channels for processing within central system controllers.
Frequently Asked Questions
Q: What input switching interface does the KJ3201X1-BA1 module accommodate?
A: The card is configured for 8 discrete dry-contact input channels powered via a nominal 24 VDC field circuit loop.
Q: How should signal wiring shields be terminated for discrete input channels?
A: Field connections should be routed using shielded twisted-pair cabling with the shield drain wire bonded at a single chassis earth point inside the control cabinet.
Field Installation Guidelines
Verify that local backplane carrier power is stable before inserting or removing the module card.
Align the module circuit card edge carefully with the guide rails on the DeltaV carrier structure to prevent pin damage.
Route discrete signal wiring in low-voltage cable ducting physically separated from AC power distribution conductors.
Secure all mechanical card latches to verify chassis earth continuity and ensure resistance to operational vibration.
