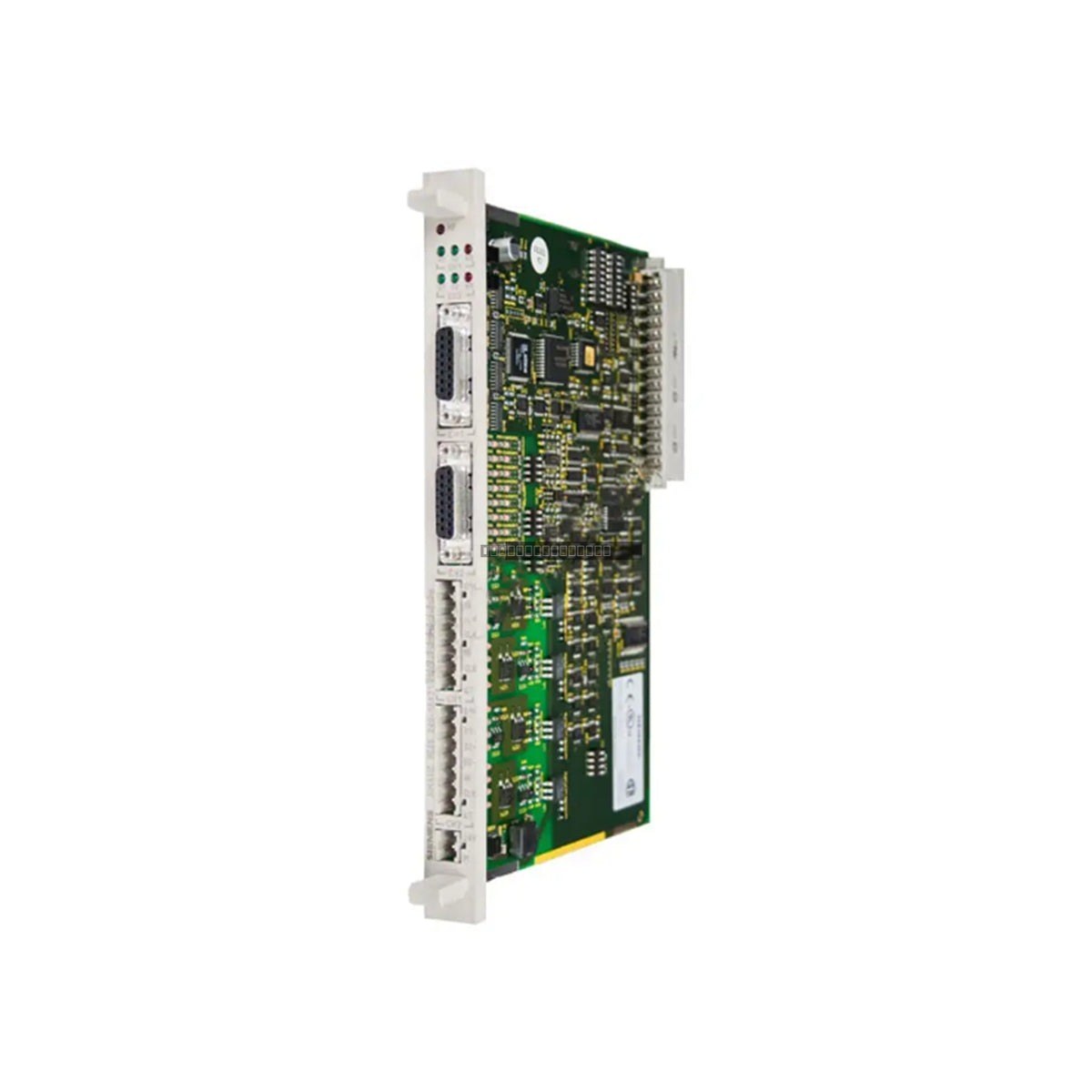

Siemens 6ES5 240-1AA21 IP240 Counter and Positioning Module

Description

The Siemens 6ES5 240-1AA21 (IP240) is an intelligent counter and positioning decoder module engineered for the Simatic S5-135 and S5-155 automation platforms. Designed to function as an autonomous coprocessor, the module handles high-speed pulse processing and encoder decoding independently of the host CPU scan cycle. This architecture ensures real-time performance for critical tasks such as rotational position monitoring, high-speed event counting, and pulse acquisition, effectively eliminating backplane polling latency in demanding industrial environments.

Features

• Autonomous processing architecture reduces CPU load by managing high-frequency pulse acquisition locally.
• Supports dual incremental encoder channels with 4x quadrature evaluation for enhanced resolution.
• Compatible with both RS-422 differential signals and 24 VDC pulse inputs.
• Integrated hardware comparator registers enable instantaneous digital output triggering.
• Galvanic isolation protects the S5 backplane from electrical noise, ground loops, and EMI common in heavy-duty drive applications.

Applications

This module is specifically suited for high-precision control tasks, including:

• Automated mining hoist control systems.
• Turbine speed and position monitoring in power generation plants.
• High-speed metal rolling mill synchronization.
• Closed-loop feedback control requiring sub-millisecond response times.

Technical Specifications

Installation Guidelines

• Ensure the S5 rack power is fully disconnected before inserting or removing the IP240 module.
• Use shielded cabling for all encoder inputs to minimize EMI interference; ensure the shield is properly grounded at the entry point of the control cabinet.
• Maintain adequate ventilation within the S5 subrack to ensure the module operates within its 0 to 60 deg C thermal range.
• Verify that the module is firmly seated in the rack slot and that the front-panel locking mechanism is engaged to prevent intermittent backplane connectivity.
• Avoid routing high-voltage power cables in the same conduits as low-voltage encoder signal lines.

FAQ

Is this module compatible with S5-115U systems?

The IP240 (6ES5 240-1AA21) is specifically designed for the S5-135U and S5-155U rack architectures. It is not intended for use in the S5-115U series.

Does the module require external power for the encoders?

The module supports 24 VDC pulse signals; however, ensure that the external power supply used for encoders shares a common reference with the module's ground to prevent potential difference issues.
