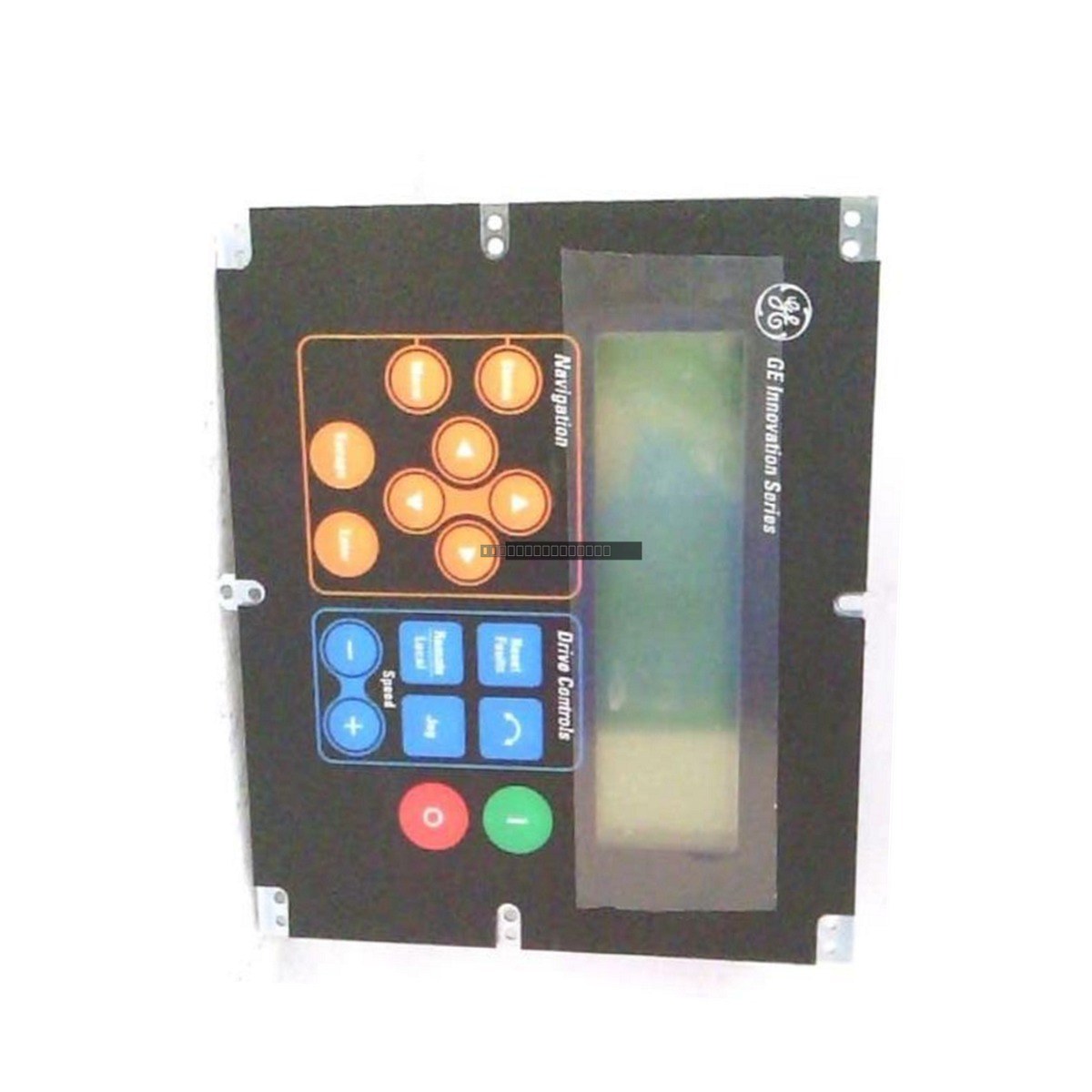

GE Fanuc IC752SPL014 EX2100 Operator Interface Terminal

Product Overview

The IC752SPL014 is a robust Operator Interface Terminal (OIT) engineered specifically for the GE EX2100 Excitation Control System. This unit functions as the primary human-machine interface for power generation control, enabling precise management of synchronous generator excitation. It is widely utilized in hydro, thermal, and combined-cycle power plants to provide operators with real-time status updates, alarm management, and control over excitation bridge parameters. By facilitating rapid access to system diagnostics, the terminal plays a vital role in maintaining generator stability and minimizing downtime during grid-related events.

Features

• Designed for seamless integration with the EX2100 Excitation Control architecture.
• Facilitates direct monitoring of critical excitation parameters including field voltage, field current, and reactive power compensation.
• Ruggedized chassis construction specifically suited for high-vibration power plant environments.
• Provides centralized diagnostic reporting and alarm annunciation for rapid fault isolation.
• Supports real-time communication with the Excitation Control Board (ECB) and associated digital regulation modules.

Applications

The IC752SPL014 is intended for deployment within excitation control cabinets. Its primary applications include:

• Synchronous generator excitation regulation.
• Power generation control and monitoring.
• Real-time diagnostic data display for excitation bridges.
• Operational adjustment of generator transient stability parameters.

Technical Specifications

Installation Guidelines

• Ensure the unit is installed in a clean, dry, and climate-controlled environment within the excitation enclosure.
• Verify that the mounting surface is secure to prevent excessive vibration transmission to the display electronics.
• Always disconnect power supply to the EX2100 cabinet before attempting to install or remove the interface module to prevent electrical damage.
• Ensure proper grounding of the chassis to the cabinet earth bus to mitigate EMI interference.
• Route communication cables away from high-voltage power lines to maintain signal integrity.

FAQ

What is the primary function of the IC752SPL014?

The IC752SPL014 serves as an operator interface for the GE EX2100 system, allowing technicians to monitor and adjust excitation parameters for generators in real-time.

Is this unit compatible with other GE systems?

The IC752SPL014 is specifically designed for the EX2100 Excitation Control series and is optimized for its communication protocols and hardware architecture.

What should I do if the display does not show data?

Verify the physical connection to the EX2100 controller, check that the communication link is active, and ensure the unit is receiving the correct voltage from the excitation control bus.
