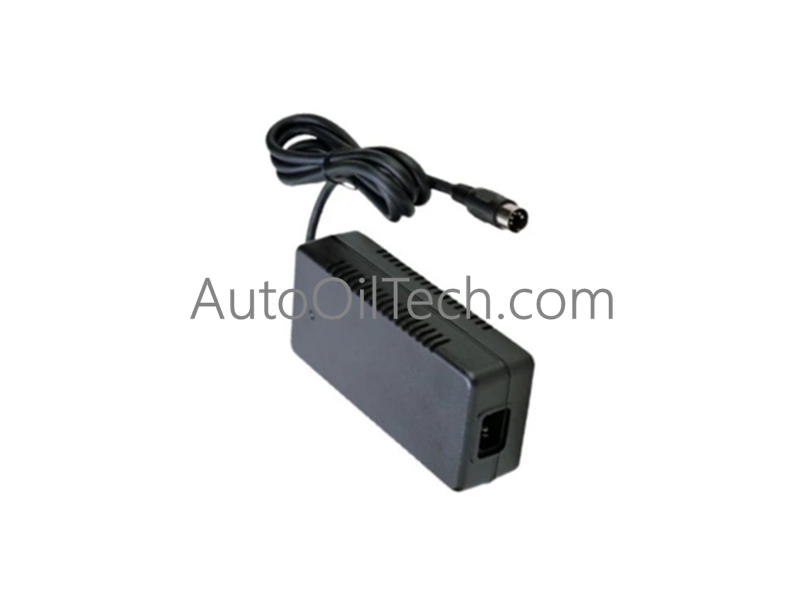

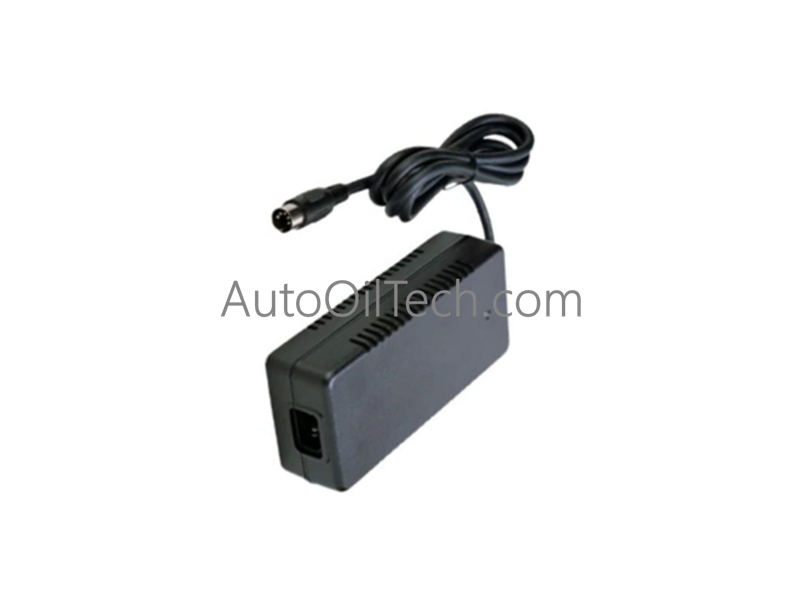

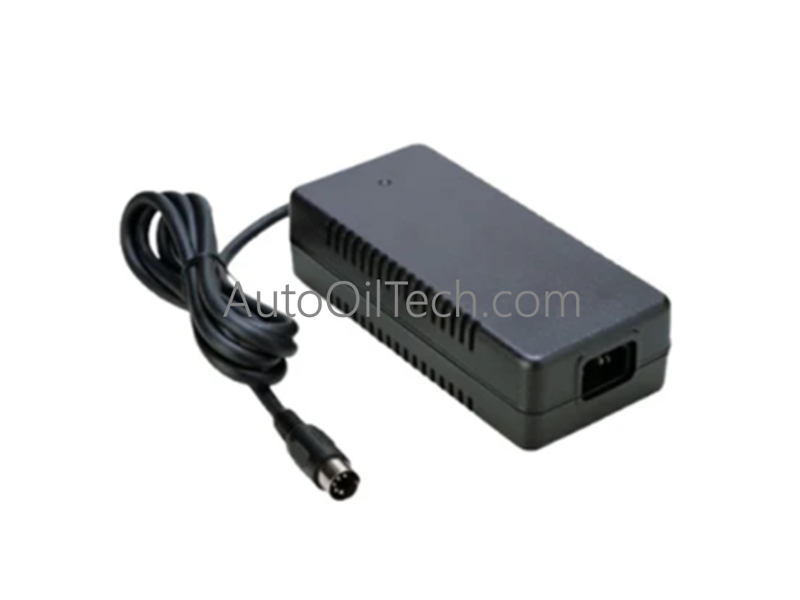

Honeywell SPU65-302 Switching Mode Power Supply

Configured for multi-voltage power distribution in industrial control platforms, the Honeywell SPU65-302 (SPU65-302 Switching Mode Power Supply) provides direct physical/electrical execution of AC to DC conversion and regulated voltage output across automation systems.

Hardware Specifications

DCS Process Control Characteristics

• 4-20 mA HART loop protocol: The SPU65-302 provides the stable DC rails required for 4-20 mA HART loop instrumentation. Consistent voltage regulation ensures that the low-voltage logic components monitoring these loops operate without interference.
• FOUNDATION Fieldbus / Profibus PA connectivity: The supply’s output stability supports the physical layer requirements of fieldbus power conditioners. It ensures that communication signals on FOUNDATION Fieldbus segments remain within signal integrity thresholds during load fluctuations.
• Channel-to-channel isolation: The power supply incorporates internal isolation to decouple the multi-voltage output rails. This isolation is necessary to prevent noise from high-current loads (such as actuators) from propagating to sensitive low-power control modules.
• Cold junction compensation (CJC): The stabilized DC outputs are critical for maintaining the accuracy of CJC circuits on remote analog input cards, as voltage variations can induce drift in high-precision temperature measurements.

Frequently Asked Questions

Q: Can the SPU65-302 outputs be connected in series to achieve higher voltage?

A: Series connection of the outputs is not supported without specific factory guidance and appropriate reverse-voltage protection diodes. The unit is designed for independent multi-voltage rail operation as specified in the output configuration table.

Q: Is the unit protected against input voltage surges from the AC grid?

A: Yes, the unit includes integrated surge current protection and over-voltage circuitry. However, in environments with high lightning strike or switching transient risk, external surge protection devices should be installed on the AC input feed.

Field Installation Guidelines

• Mounting: Secure the power supply within the control cabinet to ensure adequate convection cooling. Maintain at least 50 mm of clearance around the chassis to prevent thermal derating during continuous 80 W operation.
• Grounding: Bond the power supply chassis ground to the cabinet's main protective earth bus. This connection is mandatory for electromagnetic compatibility and for the effective operation of internal over-voltage protection.
• Wiring: Connect the IEC-320-C14 input using a rated power cord. Route DC output cabling through wire ducts separated from AC input and high-voltage motor wiring by a minimum of 150 mm to prevent inductive noise injection into the regulated 5 VDC and 12 VDC rails.
