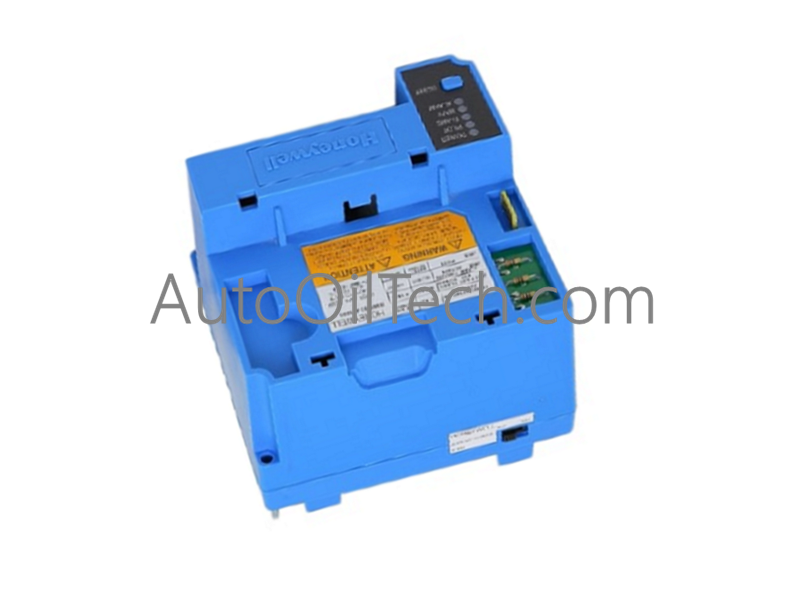

Honeywell RM7890A1056 Burner Control

The Honeywell RM7890A1056, also cataloged as the RM7890A1056 Burner Control Unit, serves as the primary RM7890 Relay Module utilized to execute on-off primary flame safeguard control across single-burner gas, oil, coal, or combination fuel platforms. Operating on a 120 VAC power input, the microprocessor-based unit initiates pre-ignition sequences, fixed 4-second or 10-second pilot flame establishing periods, intermittent pilot supervision, and configurable Valve Proving System (VPS) checking logic.

Hardware Specifications

Channel-to-Channel Isolation and Loop Integrity

The RM7890A1056 relay module utilizes internal channel-to-channel isolation principles to shield microampere flame detection circuits from backplane electrical noise and high-voltage transient spikes. By decoupling the flame signal evaluation pathways from the primary 120 VAC line voltage switching relays and fuel valve outputs, the hardware prevents ground loop currents and ignition arc cross-talk from degrading flame signal integrity. This solid-state electrical separation maintains accurate flame presence verification and reliable fault lockout execution throughout the burner operating sequence.

Frequently Asked Questions

Q: What function does the integrated Valve Proving System (VPS) logic execute during the burner cycle?

A: The programmable VPS logic checks the tightness of automatic safety shutoff fuel valves prior to startup or following burner shutdown. By evaluating pressure switch inputs between valve seats, the module detects gas leakage early to prevent unburned fuel accumulation prior to ignition.

Q: Can the RM7890A1056 be mounted directly to an enclosure wall without a subbase?

A: No, the module requires a standard Honeywell 7800 Series wiring subbase. The rear knife-blade pin connectors on the relay module mate directly into the subbase terminals, providing solid mechanical anchoring and safe physical isolation between 120 VAC power connections and field signal lines.

Field Installation Guidelines

• Mount the 7800 Series wiring subbase securely to a rigid panel surface inside the control cabinet, verifying that the subbase is completely flat to prevent header pin misalignment upon module insertion.
• Route low-voltage flame scanner signal wiring through dedicated metal conduits separate from high-voltage ignition cables and 120 VAC fuel valve lines to eliminate inductive cross-talk.
• Connect the main system enclosure ground wire directly to the subbase grounding terminal using a single, low-impedance copper jumper to avoid floating ground conditions.
• Tighten all subbase terminal screws to standard industrial torque specifications (8 to 10 in-lbs) to maintain gas-tight electrical contact across all active control circuits.
