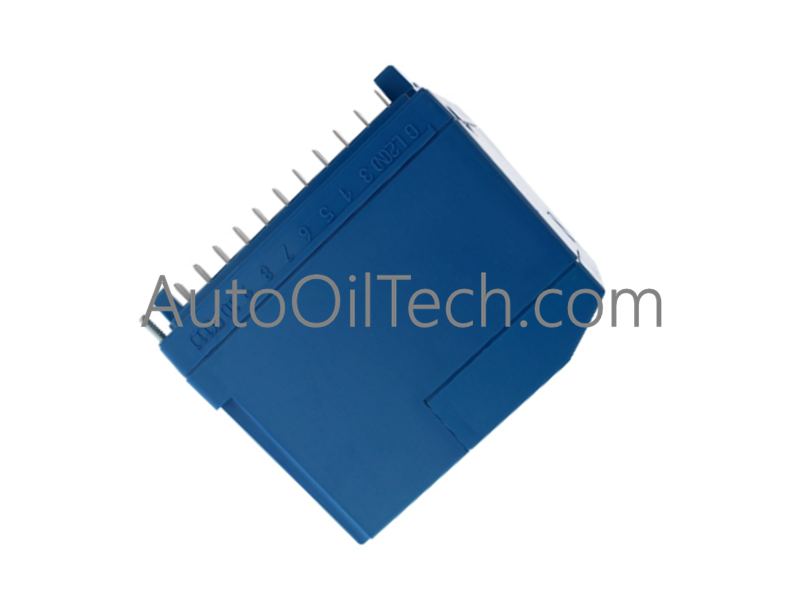

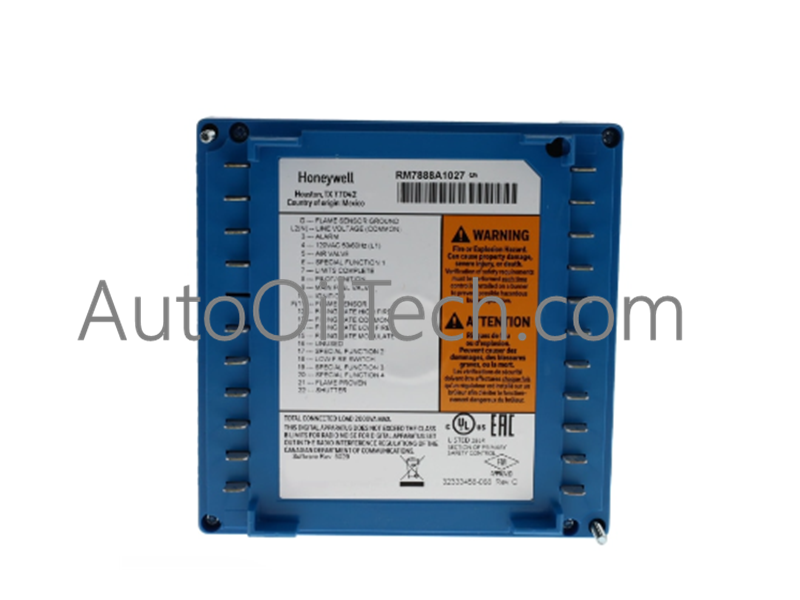

Configured for primary flame safeguard execution in heavy industrial HVAC combustion networks, the Honeywell RM7888A1027 (RM7888 Burner Control Unit) provides direct physical/electrical execution. Operating on a 120 VAC, 50/60 Hz supply, this microprocessor-based relay module provides selectable pilot operation, a 10 second pilot flame establishing period, and a 15 second main flame establishing period across 7800 Series platforms.
Hardware Specifications
Parameter
Specification
Model
RM7888A1027
Brand
Honeywell
Origin
USA
Weight
3.00 lbs
Dimensions
Standard 7800 Series Subbase Form Factor
Operating Temp
-40 to 60 deg C (Standard Industrial Profile)
Power Consumption
Standard 120 VAC Base Load
Input Voltage
120 VAC (50/60 Hz)
Pilot Type
Selectable Pilot Type
Pilot Flame Period
10 Seconds
Main Flame Period
15 Seconds
Mounting Type
Wiring Subbase Panel Mounting
4-20 mA HART Loop Protocol and Channel Isolation
The RM7888A1027 utilizes internal signal filtering and channel-to-channel isolation principles to shield microampere flame sensor pathways from backplane electrical noise and high-voltage transient spikes. By decoupling flame signal evaluation circuits from line-voltage switching relays and internal power buses, the module prevents ground loop current shifts and suppresses electromagnetic noise generated by ignition transformers. This solid-state isolation scheme ensures deterministic sequence control, continuous flame signal validation, and accurate safety lockout execution throughout active firing cycles.
Frequently Asked Questions
Q: How is the pilot type configured on the RM7888A1027 relay module?
A: The pilot operational mode (such as interrupted vs. intermittent pilot) is configured via selectable jumper settings or dip-switch positioning on the module circuit board prior to subbase installation and system power-up.
Q: What sequence timing governs the main burner ignition phase on this module?
A: Following successful pilot flame detection during the 10 second pilot flame establishing period, the module initiates a fixed 15 second main flame establishing period to prove main burner ignition before proving the main firing state.
Field Installation Guidelines
Secure the standard 7800 Series wiring subbase to a flat panel inside the burner enclosure, ensuring no mechanical distortion affects pin terminal alignment upon module insertion.
Route low-voltage flame scanner cabling through dedicated grounded metal conduits, keeping them separate from 120 VAC supply lines and high-voltage ignition leads.
Connect the primary chassis earth conductor directly to the subbase grounding lug using a low-impedance copper wire to avoid floating ground conditions.
Torque all subbase electrical terminal screws to standard industrial ratings (8 to 10 in-lbs) to maintain gas-tight contact across all active circuits.
