Honeywell MU-TAIH22 Enhanced Power High Level Analog Input STI FTA

Description

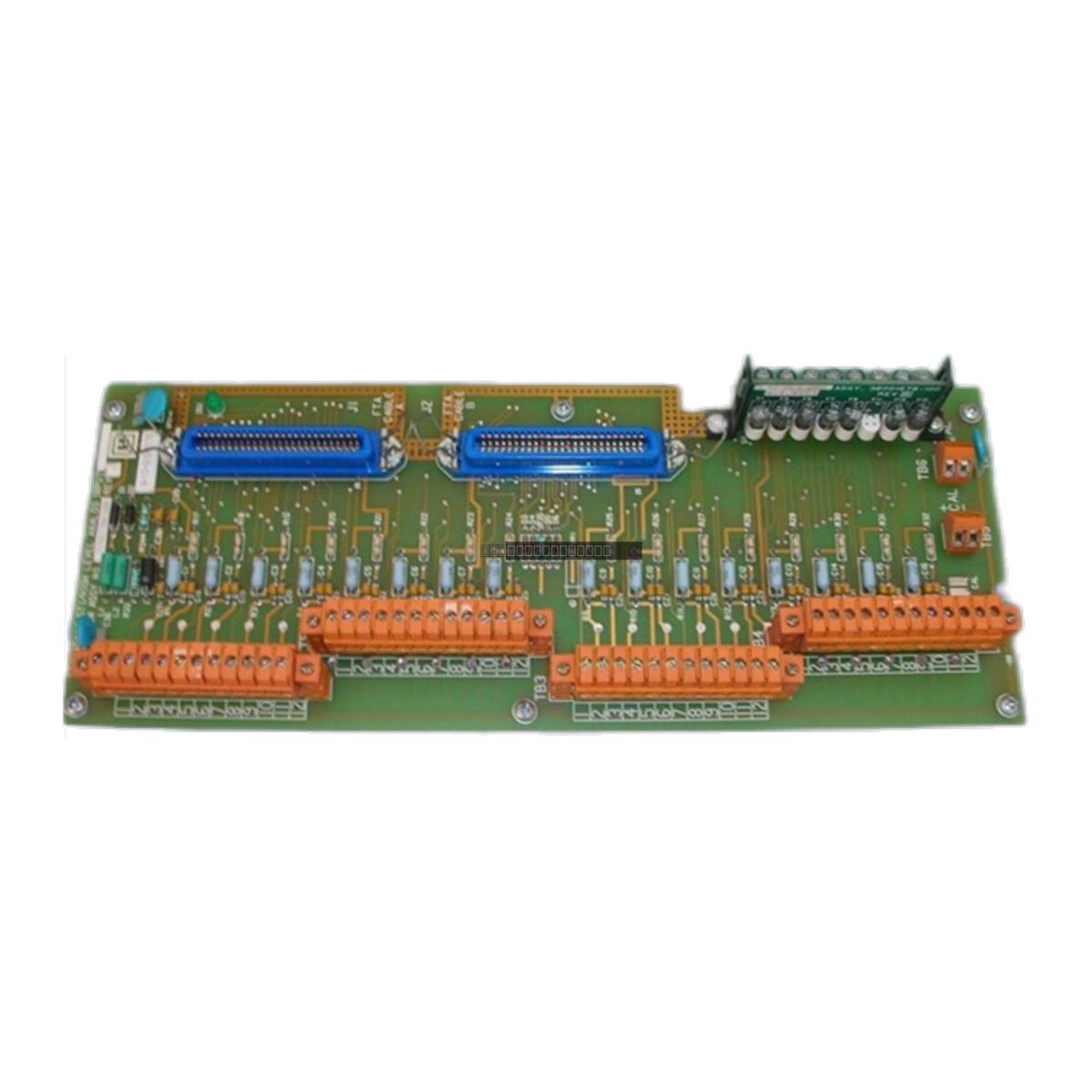

The Honeywell MU-TAIH22 is an enhanced power, high-level analog input Field Termination Assembly (FTA) engineered for reliable signal acquisition in demanding industrial environments. Designed to interface with 16 channels of process instrumentation, this unit serves as a critical bridge between field-mounted sensors and the central control system. By providing integrated support for STI (Smart Transmitter Interface) protocols, it facilitates both precise analog measurement and the exchange of diagnostic data from intelligent field devices.

Features

• 16-Channel Capacity: Supports high-density signal termination for up to 16 individual analog inputs.
• STI Compatibility: Built-in Smart Transmitter Interface capability allows for advanced diagnostics and enhanced communication with field instruments.
• Enhanced Power Distribution: Features a robust power architecture designed to provide stable excitation voltage to connected transmitters, ensuring loop integrity.
• Signal Isolation: Engineered to minimize inter-channel interference, maintaining high signal fidelity throughout the control loop.
• Simplified Maintenance: The FTA architecture isolates field wiring from the primary control electronics, simplifying troubleshooting and reducing the risk of system-wide faults.

Applications

The MU-TAIH22 is widely utilized in heavy industrial sectors requiring high-availability process control, including:

• Chemical and petrochemical processing facilities.
• Oil and gas refinery automation.
• Power generation and distribution systems.
• Offshore platform instrumentation and monitoring.

Technical Specifications

Installation Guidelines

• Environment: Ensure the installation site is free from excessive vibration, corrosive gases, and extreme electromagnetic interference.
• Wiring: Use shielded instrumentation cable to maintain signal integrity. Ensure field wiring is properly secured to the FTA terminals to prevent intermittent connections.
• Grounding: Follow standard plant grounding procedures to ensure the FTA chassis is properly referenced to the system common.
• Safety: Always isolate power to the loop and the control module before performing any maintenance, wiring, or module replacement to prevent damage to the electronics or field devices.
• Cooling: Maintain adequate clearance around the assembly to ensure proper air circulation and thermal management within the cabinet.

FAQ

What is the primary function of the MU-TAIH22?
The MU-TAIH22 acts as a field termination assembly that connects field-based analog transmitters to the Honeywell control system, providing signal conditioning and enhanced power for loop-powered devices.

Does this module support smart transmitters?
Yes, the MU-TAIH22 is equipped with STI (Smart Transmitter Interface) capability, allowing it to support communication with smart field instruments for diagnostic and configuration purposes.
