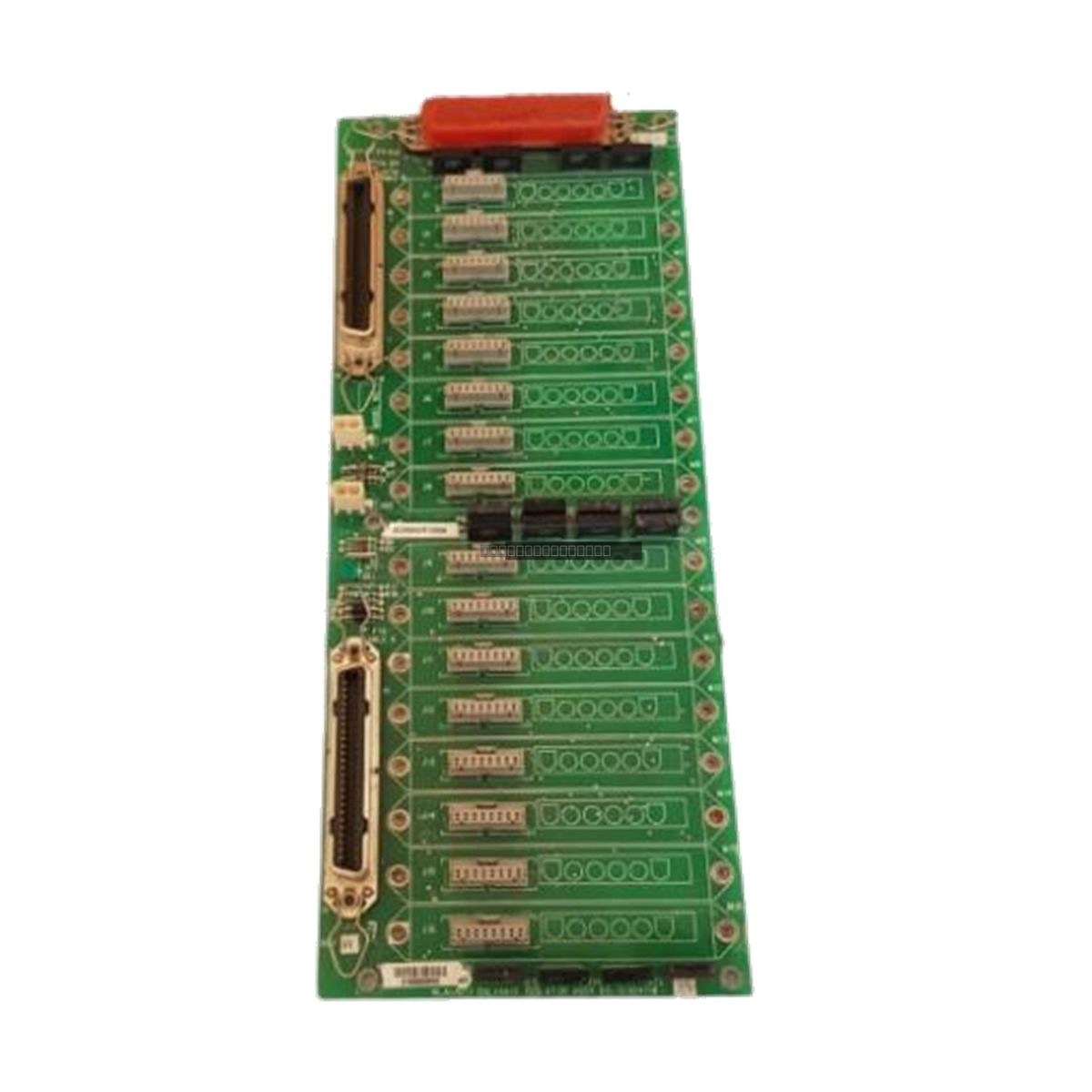

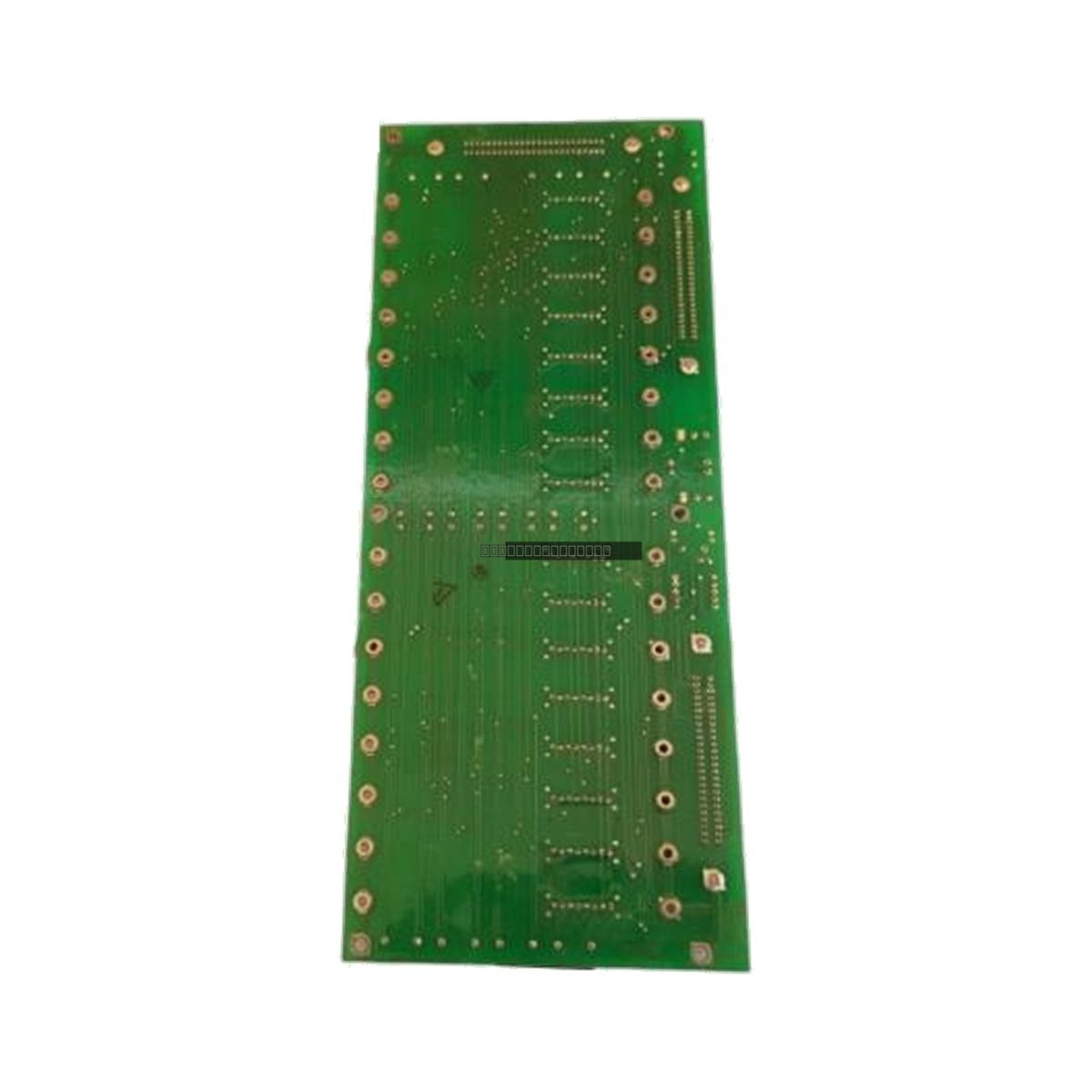

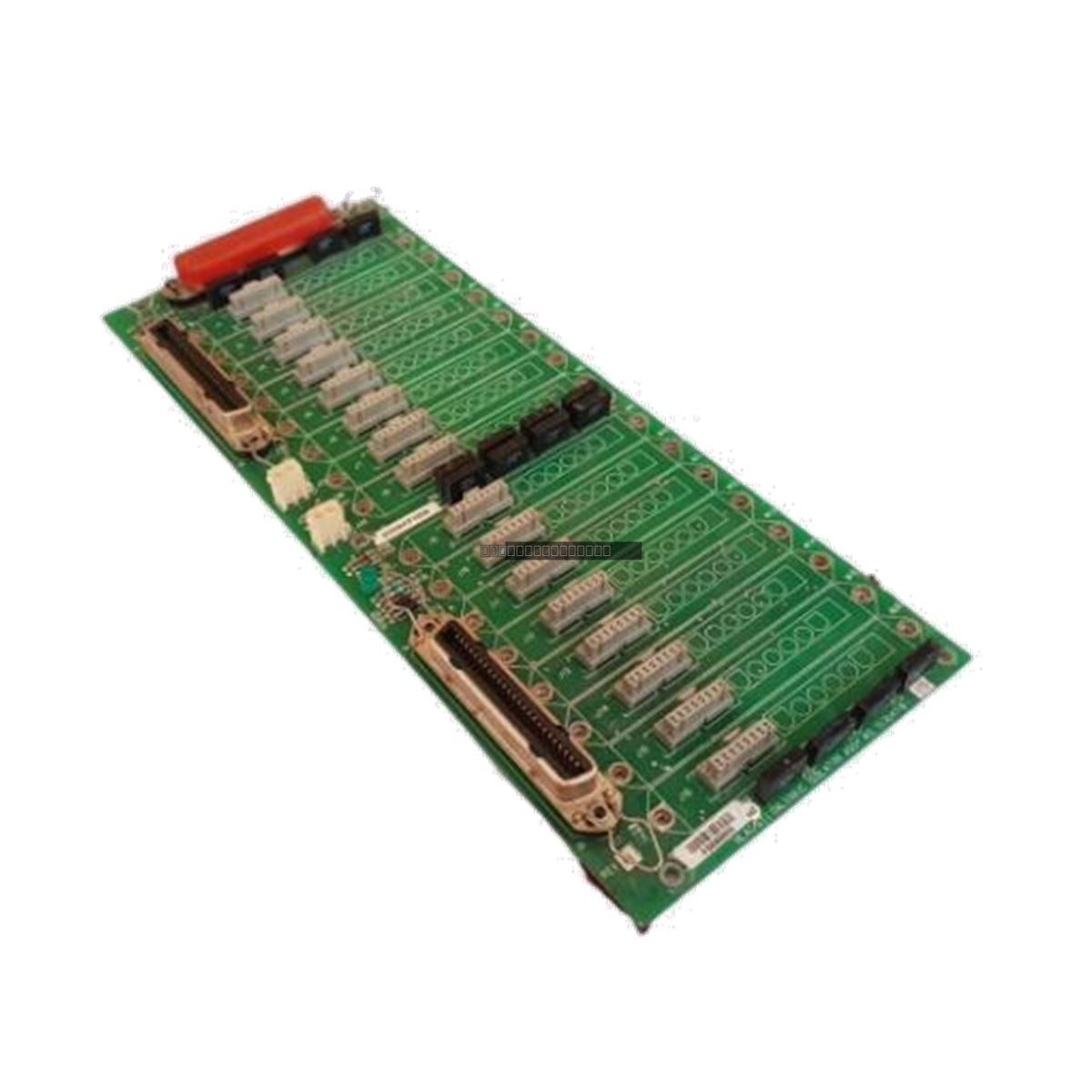

The Honeywell MU-TAIH13 (part number 51309138-125) is a High Level Analog Input Field Termination Assembly (FTA) designed for integration with Honeywell TPS and Experion PKS distributed control systems. This module serves as a critical interface between field instrumentation and the control system, facilitating the conversion of standard industrial analog signals into digital values for process monitoring and control.
Features
16 independent analog input channels supporting 4-20 mA and 0-10 V signals.
High-resolution signal conversion with accuracy better than 0.1 percent of full scale.
Supports redundant I/O configurations for high-availability applications, allowing seamless failover.
Integrated signal conditioning, filtering, and channel-to-channel isolation to mitigate noise and cross-channel interference.
Equipped with Type C compression terminals for secure, vibration-resistant field wiring.
Applications
The MU-TAIH13 is engineered for mission-critical industrial environments, including oil and gas refining, power generation, and chemical processing. It is specifically designed to reduce marshalling complexity by providing direct field wiring termination for high-density analog signal acquisition.
Technical Specifications
Model
MU-TAIH13
Part Number
51309138-125
Channels
16 Analog Inputs
Input Signals
4-20 mA, 0-10 V
Accuracy
Better than 0.1% of full scale
Isolation
Channel-to-channel and system isolation
Terminal Type
Compression Type C
Power Consumption
Approx. 8 W
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the control system is powered down before installing or removing the FTA from the cabinet.
Use shielded twisted-pair cabling for all analog inputs to minimize EMI/RFI interference.
Ensure proper grounding of the FTA chassis to the cabinet ground bus to maintain signal integrity.
Verify that the compression terminals are tightened to the specified torque to prevent loose connections in high-vibration environments.
Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.
FAQ
Q: Is this FTA compatible with redundant I/O setups? A: Yes, the MU-TAIH13 is designed to support redundant I/O configurations, allowing for primary and secondary FTA operation to ensure continuous signal availability.
Q: What type of field wiring does this module accept? A: This module utilizes Type C compression terminals, which are designed for secure, direct connection of field instrumentation wiring.
