Honeywell MC-TAIH23 Enhanced Analog Input FTA

Description

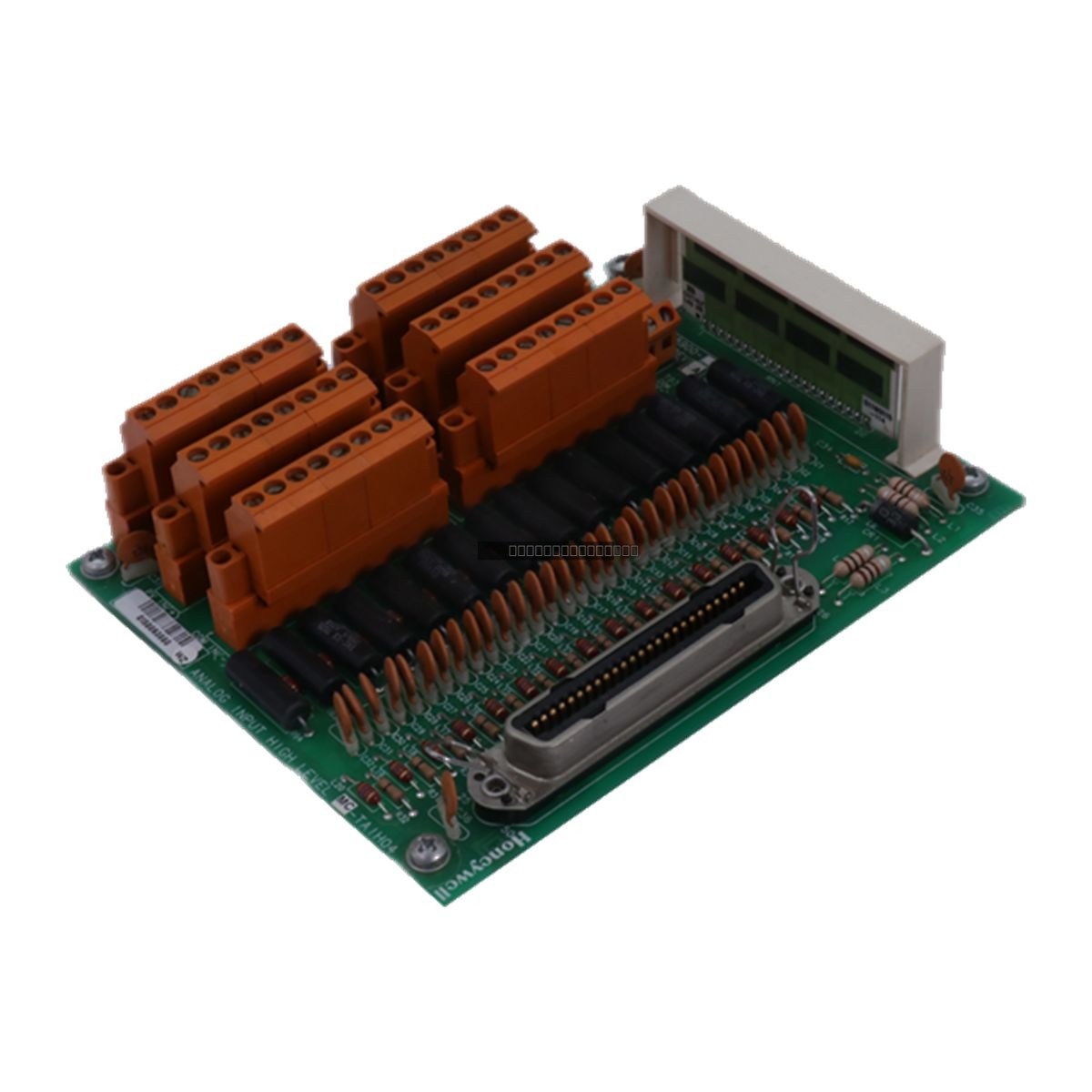

The Honeywell MC-TAIH23 is an Enhanced Analog Input Field Termination Assembly (FTA) engineered for high-level signal acquisition within Experion and legacy distributed control system architectures. This 16-channel assembly serves as the critical interface between field instrumentation and the control system, providing signal conditioning, routing, and distribution necessary for accurate process monitoring. By facilitating robust signal integrity, the MC-TAIH23 helps maintain consistent process measurements in demanding industrial environments, including oil and gas refineries and power generation facilities.

Features

• 16-channel high-level analog input capacity for high-density I/O requirements.
• Enhanced power distribution circuitry to improve field excitation stability and reference voltage consistency.
• Hardware-based termination architecture designed to minimize noise and ensure signal impedance matching.
• Galvanic and electrical isolation paths to protect control system backplane electronics from field-side electrical faults.
• Optimized for stable, continuous data acquisition to prevent process deviations and unplanned downtime.

Applications

This FTA is specifically utilized in large-scale industrial automation, including:

• Refinery and petrochemical processing units.
• Power generation and utility control systems.
• Chemical manufacturing and heavy industrial process control.
• Critical measurement loops requiring high signal fidelity.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
• Mount the unit in a climate-controlled industrial cabinet, ensuring adequate clearance for airflow and thermal management.
• Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
• Verify proper grounding of the FTA chassis according to site-specific safety standards to maintain common-mode noise rejection.
• Perform a point-to-point wiring check before energizing the loop to confirm correct polarity and signal termination.

FAQ

What is the primary function of the MC-TAIH23?

The MC-TAIH23 acts as a field termination assembly that conditions and routes 16 high-level analog signals from field devices into the Honeywell Experion or legacy control system backplane.

Is this module compatible with all Honeywell control systems?

The MC-TAIH23 is designed for specific Honeywell Experion and legacy DCS configurations. Please verify your system's hardware compatibility list or existing cabinet documentation before installation.

What environmental conditions are required for this FTA?

This module is intended for operation in a standard industrial cabinet environment with an ambient temperature range of 0 to 60 deg C. It should be protected from excessive moisture, vibration, and corrosive atmospheres.
