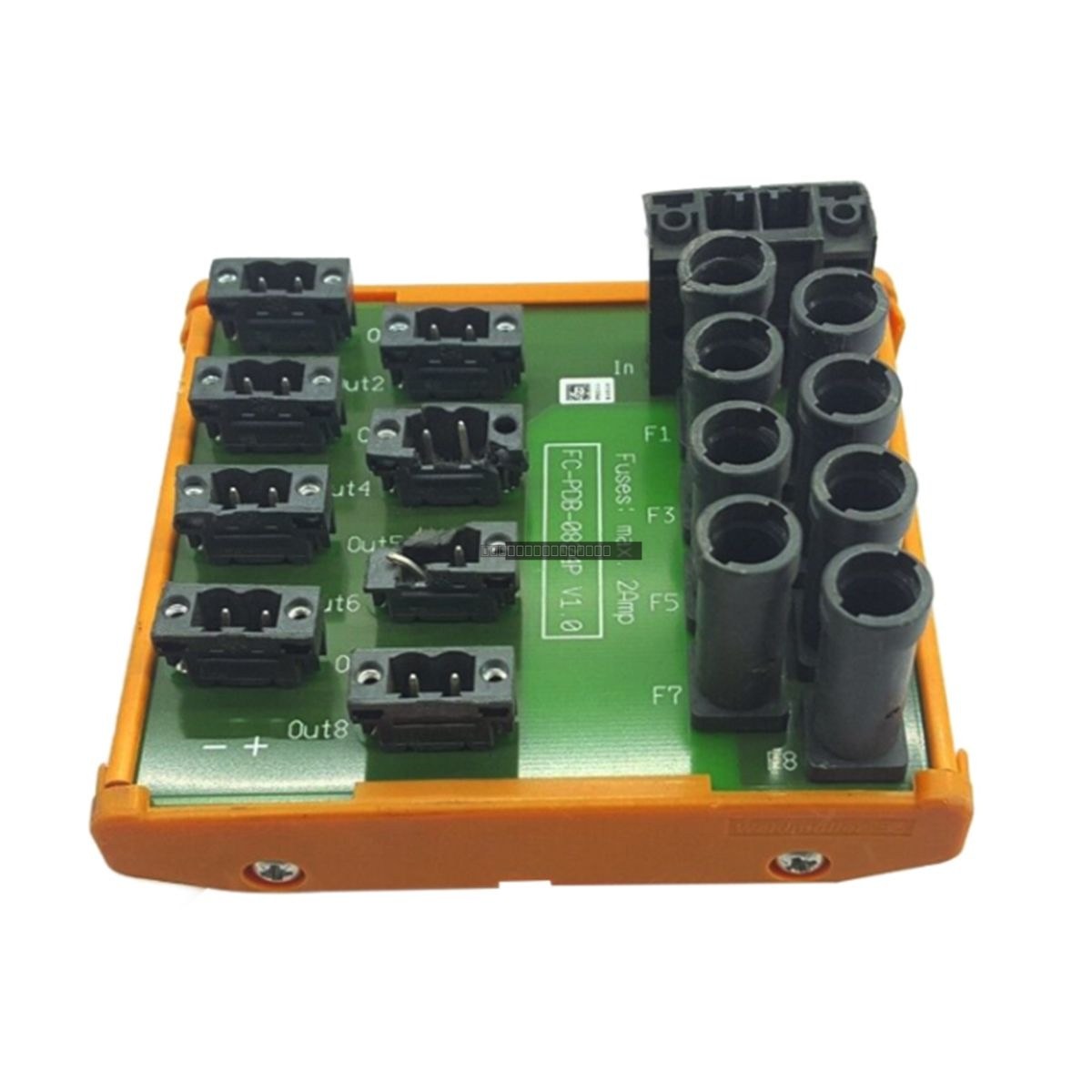

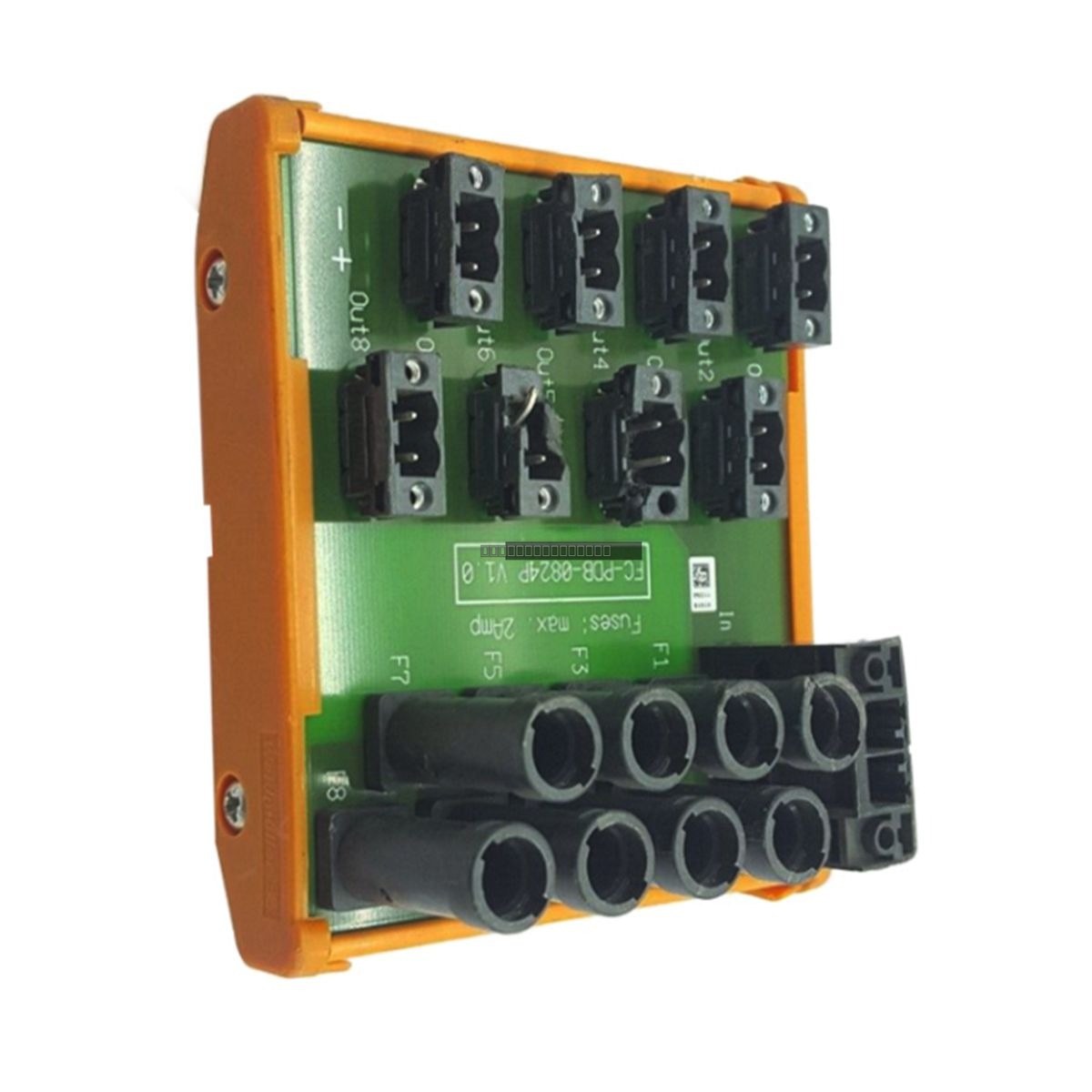

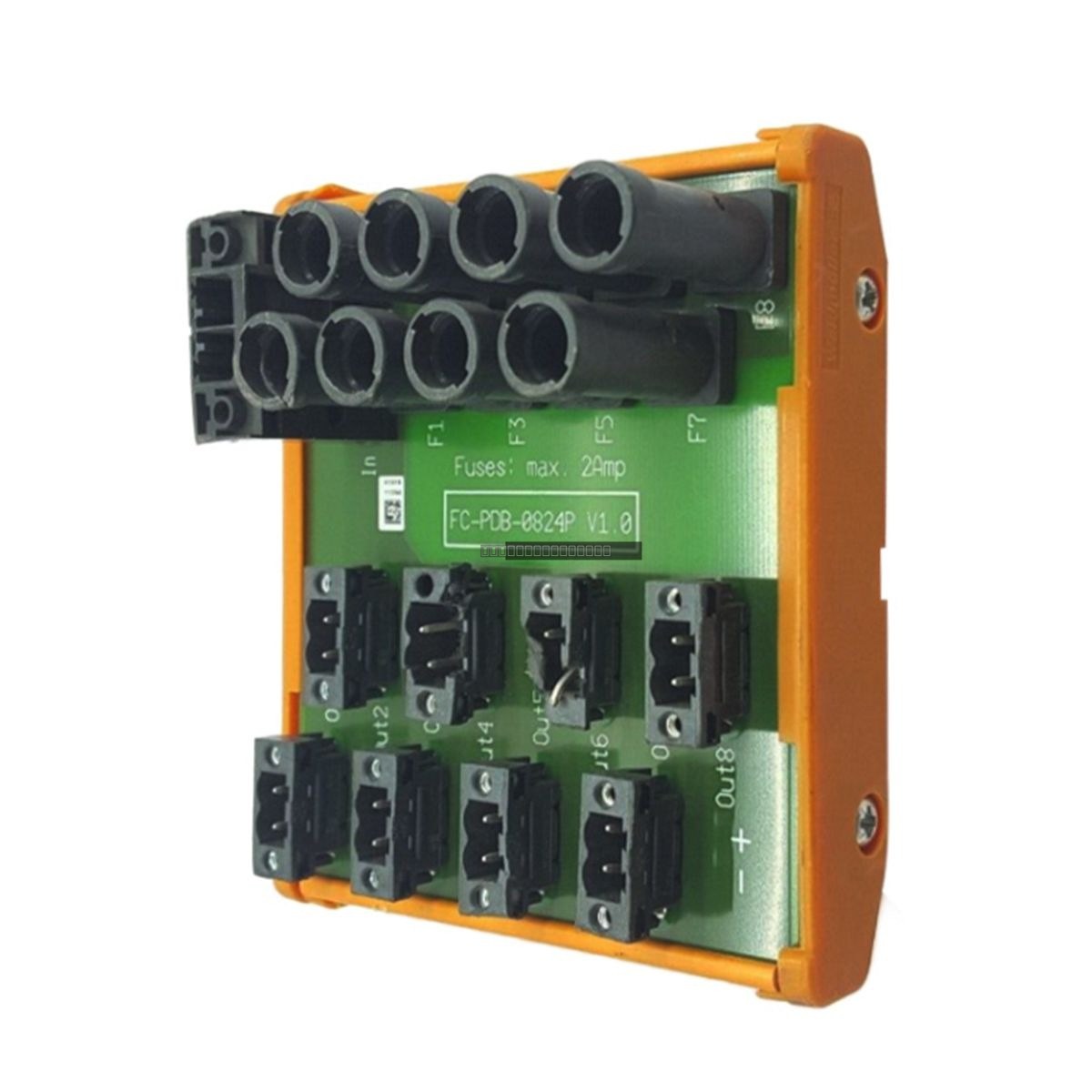

The Honeywell FC-PDB-0824P is a robust power distribution board engineered for the Safety Manager system, facilitating the efficient routing of 24Vdc power from a primary rail to various cabinet-mounted devices. This module provides a centralized interface for powering field termination assemblies (FTAs), fan units, and other critical instrumentation within industrial enclosures.
Features
Eight independent 24Vdc output channels.
Integrated 2A slow-acting fuse (5x20mm) protection for each channel to isolate faults.
Keyed 2-pole input header (Weidmuller BVZ 7.62HP/02F SN) to prevent incorrect polarity or insertion.
Conformal coated (CC) circuitry for enhanced resilience in industrial environments.
DIN-rail mountable design for streamlined cabinet integration.
Applications
Safety Instrumented Systems (SIS) and Safety Manager architectures.
Remote I/O power management in oil, gas, and petrochemical facilities.
Centralized power distribution for process automation and industrial control cabinets.
Auxiliary power management for cabinet cooling and field sensor loops.
Technical Specifications
Model
FC-PDB-0824P
Input Voltage
24Vdc
Output Channels
8
Output Rating
2A per channel (max)
Fuse Type
2 AT (slow acting), 5x20 mm
Input Connector
Weidmuller BVZ 7.62HP/02F SN
Output Connectors
Weidmuller BLZ 5.08/2F SN SW
Mounting
TS32 / TS35 x 7.5 DIN Rail
Coating
Conformal Coated (CC)
Installation Guidelines
Ensure the cabinet power is fully disconnected before installing or removing the module.
Mount the board onto a standard TS32 or TS35 DIN rail, ensuring secure mechanical seating.
Use keyed Weidmuller connectors as specified to ensure reliable power transmission and prevent connection errors.
Maintain proper clearance for airflow around the module to avoid heat buildup, especially given the density of the 8-channel output.
Verify that all field wiring conforms to local electrical safety standards (e.g., IEC or VDE) before energizing the system.
Handle with standard ESD precautions to protect the sensitive electronic components on the board.
FAQ
What is the function of the FC-PDB-0824P?
It acts as a power distribution hub for 24Vdc systems, allowing a single input source to be safely branched into eight fused output channels for field devices.
Can I replace the fuses on this board?
Yes, each of the eight channels is protected by a 5x20mm 2A slow-acting fuse, which can be replaced during maintenance if a fault occurs on a specific channel.
Is this module suitable for hazardous locations?
The unit features conformal coating for environmental protection and is designed for use in industrial control cabinets; always verify site-specific safety requirements against the module's datasheet before installation in hazardous areas.
