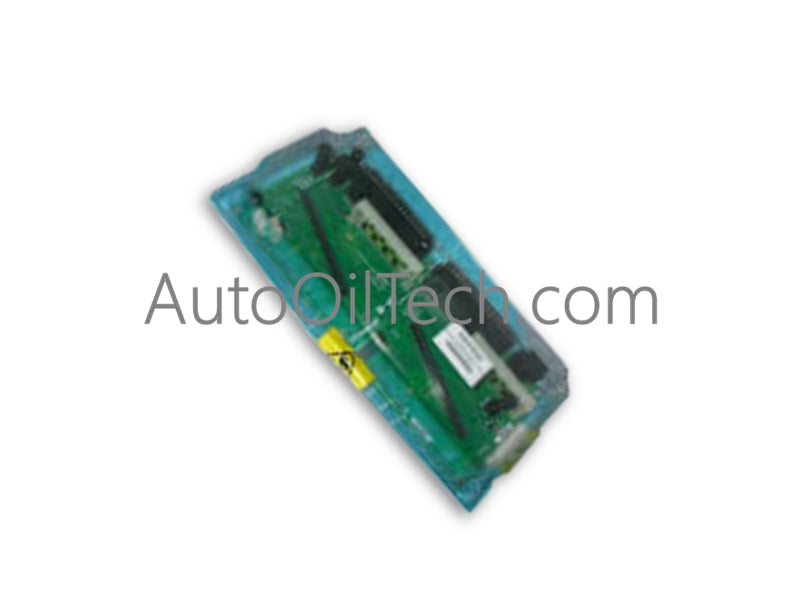

Honeywell 8C-TCNTA1 Series 8 Controller I/O Termination Assemblies

Configured for controller signal interface and I/O termination routing in Honeywell Series 8 platforms, the Honeywell 8C-TCNTA1 (8C-TCNTA1 Controller I/O Termination Assembly) provides direct physical/electrical execution. The hardware lands field instrumentation wiring and bridges signal channels directly to primary control processors running Custom Algorithm Blocks (CABs). Integrated signal routing structures decouple logic backplane buses from external electrical surges across field terminal points.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The 8C-TCNTA1 incorporates dedicated internal backplane trace pathways engineered to maintain signal fidelity for analog field circuits, including 4-20 mA HART loop protocol modulations. Channel-to-channel isolation architecture prevents ground potential shifts between field loops from causing measurement errors or hardware failure across adjacent terminal points. High-frequency noise suppression circuitry filters field-side electromagnetic interference, ensuring deterministic control loop execution and steady communication back to the main processor.

Frequently Asked Questions

Q: How does the 8C-TCNTA1 terminal assembly handle signal processing for Custom Algorithm Blocks (CABs)?

A: The physical termination assembly lands external wiring directly and routes raw electrical signals to the primary Series 8 control processor, where user-configured CABs perform dedicated loop algorithms.

Q: What grounding procedure must be observed during the installation of the 8C-TCNTA1?

A: The mounting carrier must be connected to the cabinet main Earth ground bar using a dedicated copper strap to ensure proper chassis shielding and transient dissipation.

Q: What is the procedure for disconnecting field wiring during system maintenance?

A: De-energize connected 24 VDC field loops before removing terminal blocks or unseating field wiring conductors from the 8C-TCNTA1 assembly.

Field Installation Guidelines

1. Mount the IOTA baseplate securely on the cabinet mounting rail and connect the chassis ground connector to the main Earth ground bar using a low-impedance copper conductor (minimum 4 mm2 / 10 AWG).
2. Isolate all 24 VDC external field power sources before attaching or altering field terminal connections on the assembly.
3. Route field input cables inside grounded metallic conduits, maintaining a minimum physical clearance of 300 mm from AC power distribution lines and motor control circuits.
4. Terminate signal cable shields at a single dedicated point on the enclosure grounding rail to prevent ground loop currents from forming across field circuits.
5. Tighten all field terminal block screws to a torque between 0.5 and 0.6 Nm to maintain gas-tight low-resistance contact engagement.
