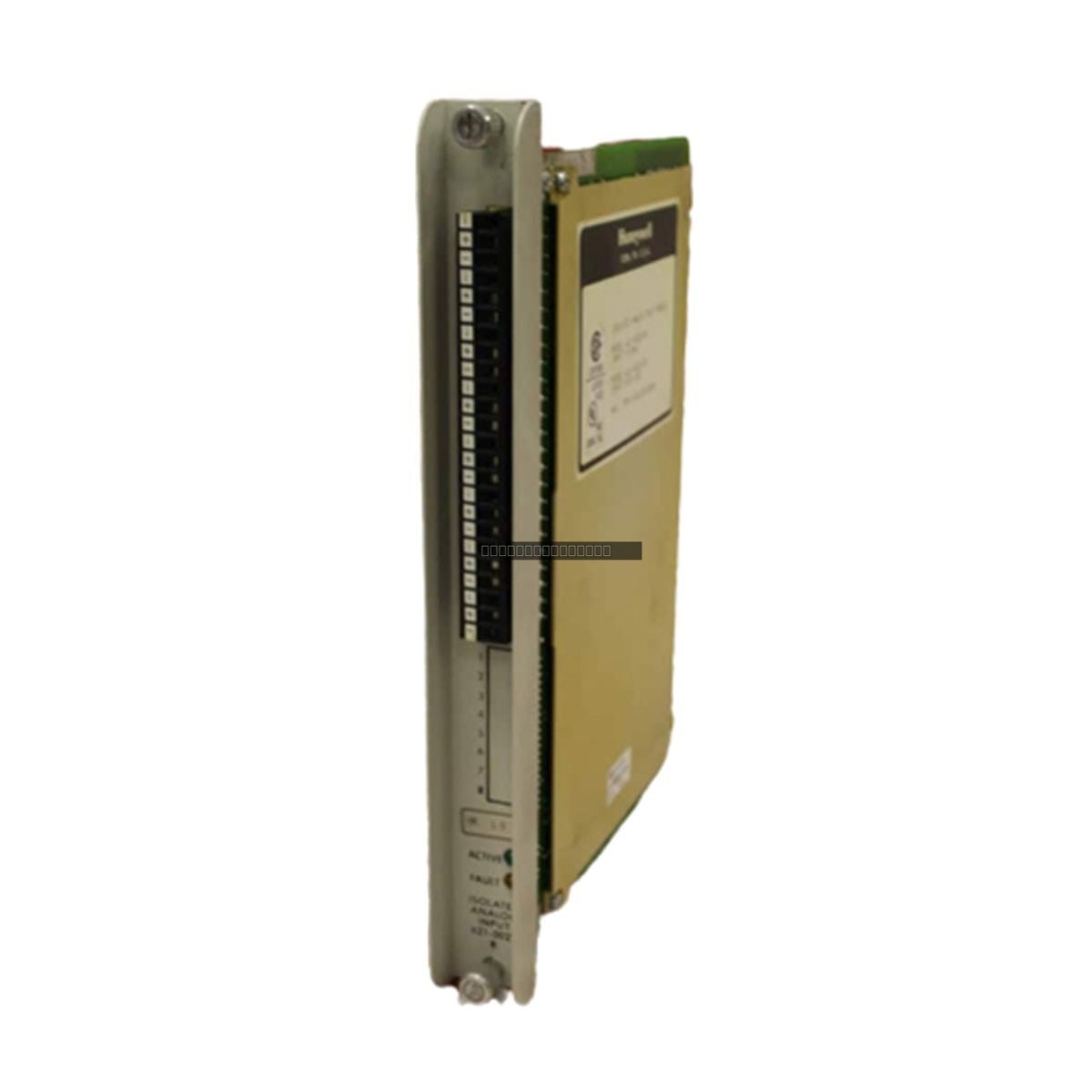

The Honeywell 621-0015 is an isolated analog input module designed for the 620 Series industrial control system. This module provides 8 independent channels for high-level analog signal acquisition, specifically engineered for demanding process control, manufacturing automation, and utility monitoring environments. By incorporating electrical isolation, the 621-0015 effectively mitigates cross-channel interference and protects the backplane from transient disturbances and ground loops, ensuring reliable and accurate real-time data processing.
Features
8 isolated analog input channels for high-level signal acquisition.
Electrical isolation per channel to prevent ground loops and signal noise.
Direct integration with the 620 Series backplane for deterministic communication.
Compact modular design for efficient rack space utilization.
Designed for stable performance in electrically noisy industrial environments.
Applications
This module is suitable for various industrial applications, including:
Process control systems requiring precise analog monitoring.
Manufacturing automation and production line instrumentation.
Utility monitoring and data acquisition systems.
Industrial environments where signal integrity is critical due to high EMI.
Technical Specifications
Model
621-0015
Series
620 Series
Channel Count
8 Isolated Channels
Input Type
High-Level Analog
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Power Source
Backplane Powered
Mounting
620 Series Backplane Clamp
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the backplane.
Handle the module using ESD-safe practices to prevent damage to internal circuitry.
Verify that the module is securely seated in the 620 Series backplane and the clamp is fully engaged.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
FAQ
Is the 621-0015 module compatible with other Honeywell series?
No, the 621-0015 is specifically designed for the Honeywell 620 Series and is intended for use with the corresponding 620 Series backplane architecture.
Does this module require external power?
The 621-0015 is powered directly via the 620 Series backplane, simplifying the wiring requirements for the installation.
