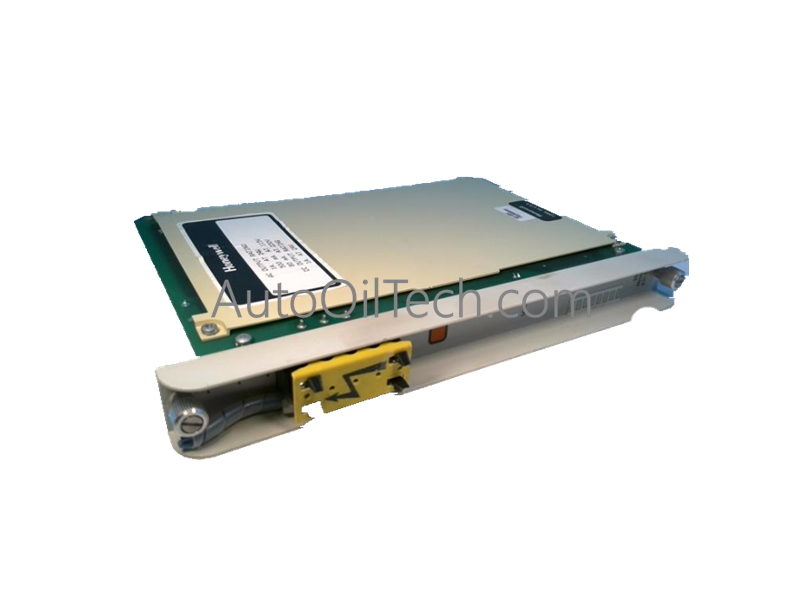

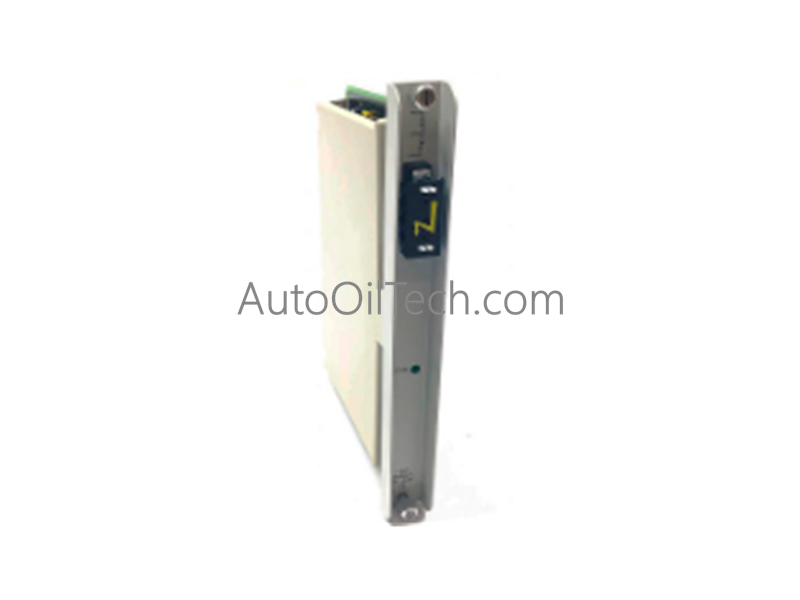

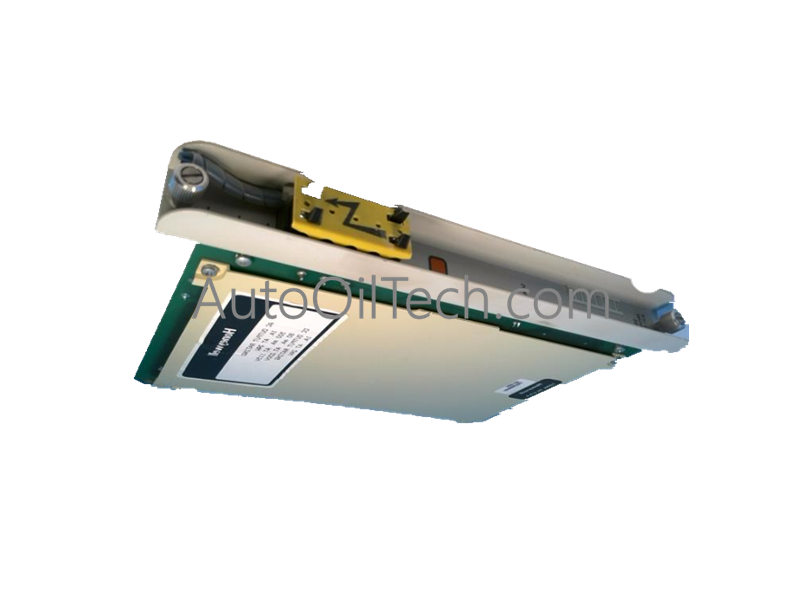

Honeywell 621-0004 SDM Module

Configured for multi-voltage discrete signal interfacing in industrial control platforms, the Honeywell 621-0004 (621-0004 SDM Module) provides direct physical execution of I/O switching across heterogeneous voltage domains. The module serves as the primary 621-0004 SDM Module utilized to execute state monitoring and control signal distribution across Honeywell 620 series PLC platforms.

Hardware Specifications

Industrial Control and DCS Metrics

• Channel-to-Channel Isolation: The 621-0004 integrates galvanic isolation to separate the discrete signal channels from the system backplane and from neighboring I/O points. This design mitigates the risk of propagating transient high-voltage faults, such as those occurring during AC switching events, into the controller logic, thereby maintaining the integrity of the total I/O scan cycle.
• 4-20 mA HART Loop Protocol Connectivity (System Context): While the 621-0004 operates as a discrete SDM (Signal Distribution Module), it is engineered for placement within I/O racks that concurrently host analog instrumentation. The module's internal circuitry is shielded to ensure that discrete state transitions do not induce electromagnetic crosstalk within adjacent 4-20 mA HART loop protocol analog signal paths, preserving measurement accuracy for connected process transmitters.

Frequently Asked Questions

Q: Does the module support hot-swapping within the PLC rack?

A: No. The 621-0004 is not designed for hot-swapping. The rack power and field power must be de-energized prior to installation or removal to prevent potential damage to the backplane connectors or internal switching elements.

Q: Are the outputs internally protected against inductive load flyback?

A: The module handles standard industrial load switching, but external suppression (such as diodes for DC or MOV/RC snubbers for AC) is required for highly inductive loads like large contactors or solenoid valves to protect the switching semiconductors.

Field Installation Guidelines

• Field Wiring: Observe the voltage-specific current limits: 500 mA for 115 VAC and 1 A for 24 VAC/DC applications. Exceeding these ratings can result in permanent hardware damage. Use separate wire ducts for high-voltage (115/230 VAC) and low-voltage (24 V) signal conductors to minimize inductive coupling.
• Shielding and Grounding: Terminate all cable shields to the cabinet’s protective earth (PE) bus. A low-impedance ground path is required for the internal filters to effectively shunt electromagnetic noise generated by the switched loads.
• Mechanical Seating: Verify that the module is fully latched into the rack backplane. Insecure seating can cause intermittent communication with the CPU, resulting in unpredictable I/O state execution or parity errors on the system bus.
