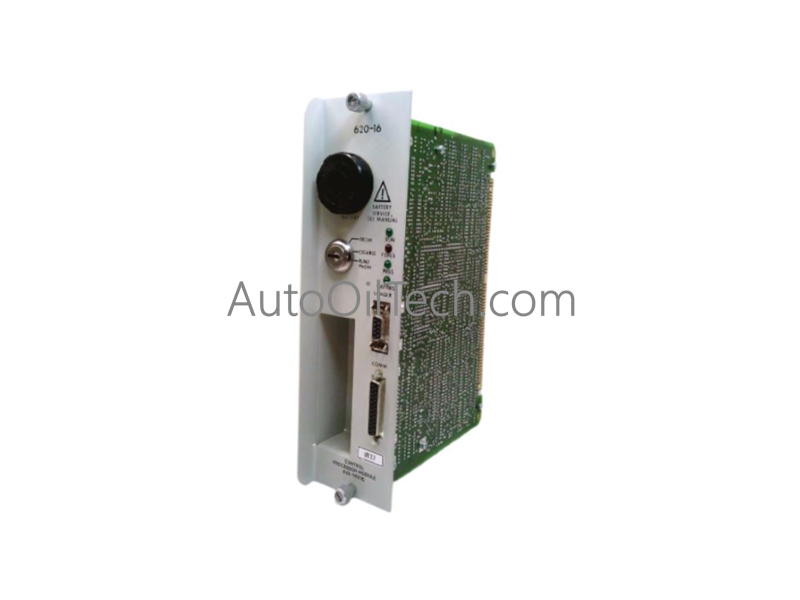

Honeywell 620-1633 Processor Controller Module

The Honeywell 620-1633, also cataloged as the 620-1633 Processor Controller Module, operates as a dedicated hardware component for logic execution and system management within Honeywell 620 series PLC architectures. Configured for central rack processing, the Honeywell 620-1633 (620-1633 Processor Controller Module) provides direct physical execution of machine control algorithms, I/O scan management, and inter-processor communication via integrated serial interfaces.

Hardware Specifications

Industrial Control and DCS Metrics

• Backplane Bus Communication Velocity: The 620-1633 is engineered for deterministic communication within the 620 series backplane. It manages high-speed polling of the rack-mounted I/O, ensuring that control loops and status updates are executed within synchronized cycle times, which is critical for maintaining stability in process control applications.
• 4-20 mA HART Loop Protocol Connectivity (System Context): While the 620-1633 handles the primary application logic, it facilitates integration with the broader I/O subsystem. It is designed to support the timing requirements for HART loop protocol data, allowing the controller to maintain synchronous access to analog instrumentation variables alongside discrete machine control tasks.

Frequently Asked Questions

Q: What is the function of the key-operated switch on the front panel?

A: The key-operated switch acts as a physical security and operational mode selector. It typically allows the user to toggle between Run, Program, or Remote modes, preventing unauthorized changes to the control logic or processor state during active operation.

Q: Are the 9-pin and 25-pin Sub-D connectors interchangeable?

A: No. These ports serve different communication functions, such as programming interfaces, serial communications, or link connections. Refer to the system technical manual to confirm the specific wiring and protocol requirements for each port to prevent hardware damage from voltage mismatches.

Field Installation Guidelines

• Mounting: Secure the 620-1633 module into the master slot of the 620 series rack. Ensure the backplane connector is fully seated to prevent intermittent resets, which can be caused by micro-vibrations disrupting the high-density pin connections.
• Shielding and Grounding: All serial communication cables connected to the Sub-D ports must be shielded and the shields terminated at the cabinet's protective earth (PE) bus. This reduces the risk of electromagnetic noise affecting the processor's communication links or causing CPU parity errors.
• Environmental Maintenance: Periodically verify the state of the status LEDs. A change in the LED sequence or the persistent illumination of an error indicator requires immediate diagnostic review to ensure the processor has not entered a fault state that could impact system safety.
