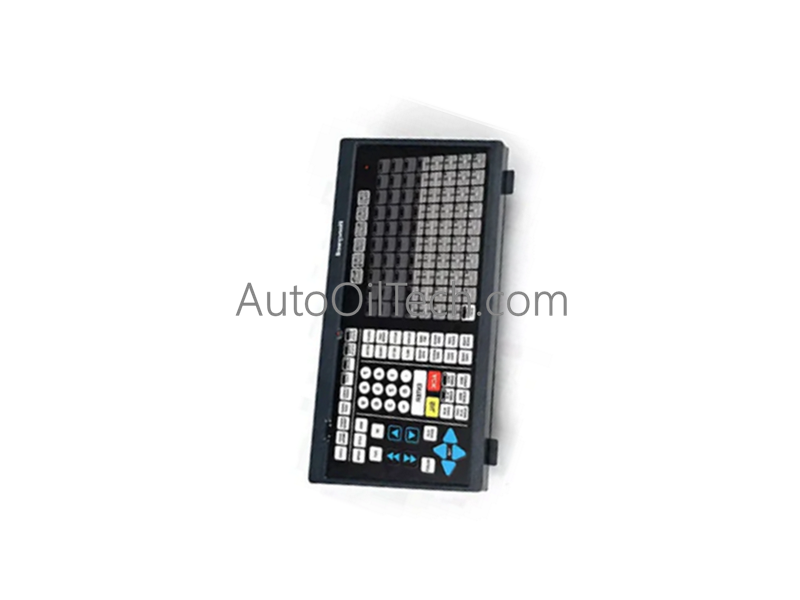

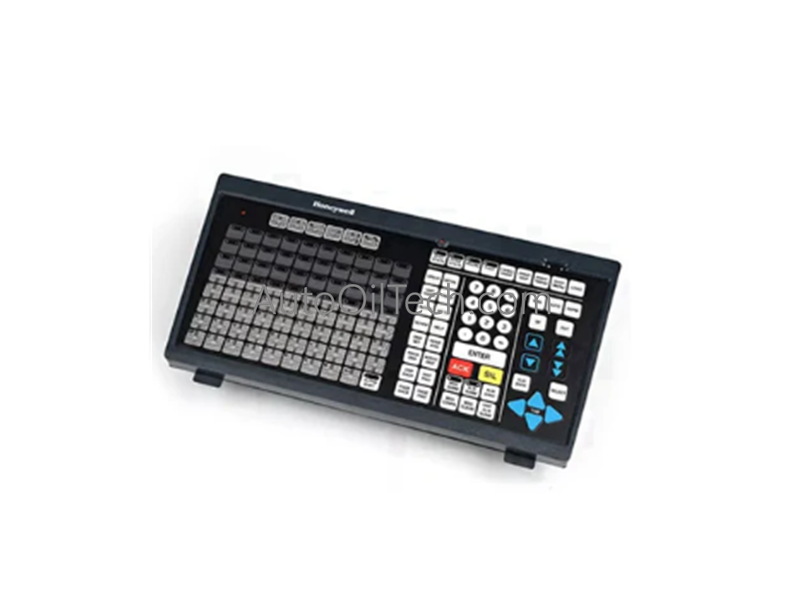

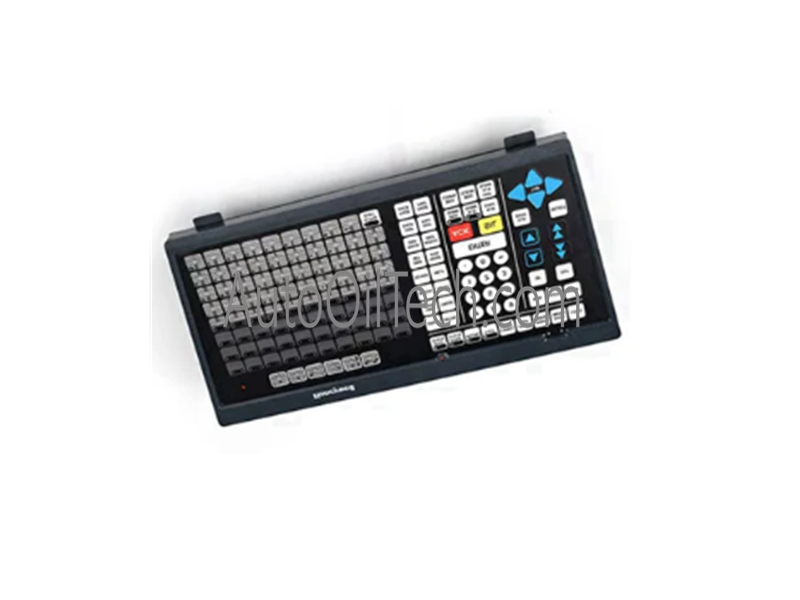

Honeywell 51403883-100 Industrial Operator Keyboard

Configured for centralized human-machine interface (HMI) tracking and operator command sequence input in Honeywell distributed control systems, the Honeywell 51403883-100 (51403883-100 Industrial Operator Keyboard) provides direct physical/electrical execution. The hardware features a fully sealed, ruggedized layout combined with an integrated pointing device to facilitate continuous, low-latency control terminal navigation within centralized control rooms.

Hardware Specifications

Honeywell DCS Integrated Signal Processing

• Channel-to-Channel Isolation and Static Deflection Protection: The mechanical key switch matrices are structured with optoelectronic isolation layers to enforce channel-to-channel isolation. This internal segmentation routes tactile scan pulses separately from the core console data path, absorbing extreme electrostatic discharge (ESD) spikes and shielding console processing nodes from bus signal breakdown.
• 4-20 mA HART Loop Protocol Dashboard Interaction: The customizable function keys and integrated cursor controller permit direct interaction with distributed loop software. Operators use the physical keys to navigate process faceplates, monitor data points, and adjust parameters derived from field instruments running the 4-20 mA HART loop protocol.

Frequently Asked Questions

Q: What structural benefit does this module offer when compared to Honeywell 9395 series keyboards?

A: Unlike the standard 9395 series components, the 51403883-100 integrates a built-in industrial trackball or touchpad directly into the right-hand chassis plane. This integrated pointing device removes the need for an external standalone mouse, minimizing physical workspace space demands and eliminating additional open cable routing gaps.

Q: How does the interface survive live fluid spills or ambient fine-dust accumulation?

A: The keyboard employs a fully sealed, continuous elastomeric overlay that wraps the underlying key contact matrix. This protective shield seals the inner copper contact tracks against localized moisture drops, industrial condensation, and airborne dust, preventing contact point short-circuits.
