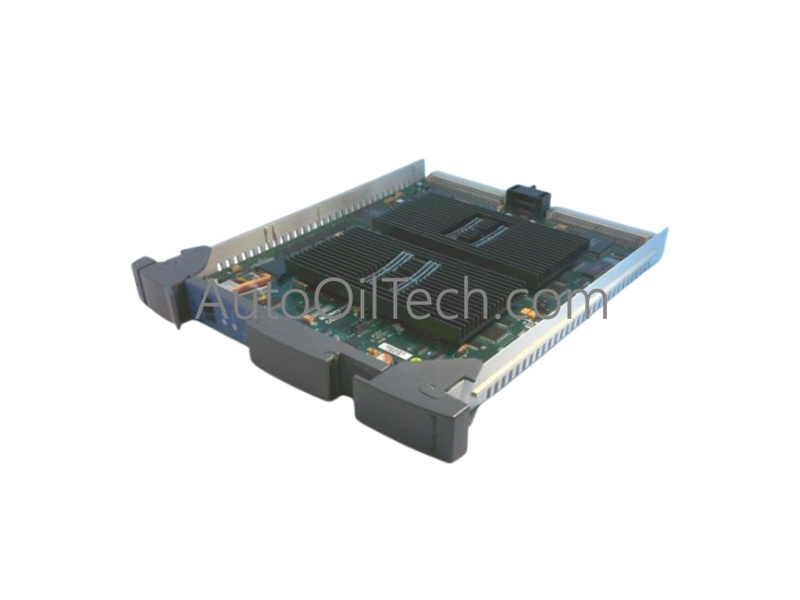

Honeywell 51403422-150 Communication and Control Processor

The Honeywell 51403422-150, also cataloged as the 51403422-150 Communication and Control Processor, operates as a dedicated hardware component for regulatory, logic, sequence functions, and user programming execution within high-performance VDC logic I/O subsystems.

Hardware Specifications

Honeywell Process Control and DCS Optimization

• 4-20 mA HART Loop Protocol and Function Mapping: The control processor interprets digitized variables from lower-level field networks and routes them to the primary supervisory control bus. It natively processes specialized user programming, floating-point proportional-integral-derivative (PID) calculations, and interlocking Boolean logic arrays directly at the rack level to preserve low-latency execution loops.
• Channel-to-Channel Isolation Control: To shield the core 32-bit arithmetic computing matrix from field-side electrical anomalies, the processor board incorporates extensive galvanic and optical isolation sub-circuits. These boundaries isolate common-mode voltage fluctuations, high-energy transients, and ground loops along the backplane interface lanes, preventing adjacent I/O cards or node components from suffering data corruption.

Frequently Asked Questions

Q: Does this communication and control processor module support hot-swapping inside an active backplane slot?

A: No. The edge connector pin assembly does not feature specialized multi-stage current-limiting gates. Inserting or extracting this processor card while the sub-rack backplane is fully energized can trigger power dips, generate bus synchronization timing faults, or permanently destroy the solid-state chips on the card.

Q: How does the processor react if a sequence function execution detects a runtime memory parity fault?

A: The card runs continuous background cyclic redundancy checks (CRC) and memory parity validation. If an unrecoverable memory fault is detected inside the user program partition, the module immediately trips a local hardware failure LED, drops its active logic outputs to a predetermined fail-safe state, and passes a diagnostic flag to its redundant tracking partner.
