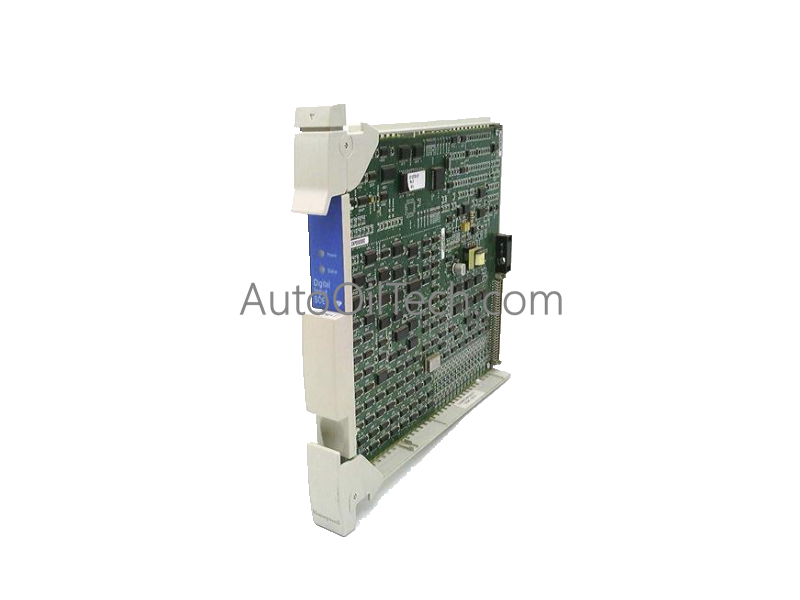

The Honeywell 51402625-175, also cataloged as the 51402625-175 Processor Module, operates as a dedicated hardware component for digital input signal conditioning and data processing within high-density VDC logic I/O subsystems.
Hardware Specifications
Parameter
Specification
Model
51402625-175
Brand
Honeywell
Series
High-Performance Process Manager (HPM) / Experion Systems
Origin
United States (US)
Weight
0.99 lbs (0.45 kg)
Dimensions
Standard HPM card slot form factor
Functional Class
VDC Logic I/O Module / Digital Input Processor
Power Architecture
Driven via standard HPM backplane distribution lines
Honeywell Process Control and DCS Optimization
Channel-to-Channel Isolation Matrix: The electronic board incorporates independent galvanic isolation barriers across its VDC logic processing paths. This layout blocks common-mode voltage fluctuations, ground loops, and electrical surges from traveling along the internal backplane data lanes, protecting the central Distributed Control System (DCS) processors.
Digital Input Filtering and Signal Scanning: The processor card handles multi-channel contact sensing with high-speed sampling filters. It suppresses raw mechanical contact bounce natively on the module, ensuring that state transitions (On/Off) are cleanly processed, digitized, and time-stamped before transferring the data frame across the primary network bus.
Frequently Asked Questions
Q: Does this digital input processor module support hot-swap replacement within an active chassis?
A: This module does not incorporate live-insertion surge suppression circuits. To prevent backplane data parity faults or inductive voltage spikes from damaging the internal solid-state components, the target card file slot must be logically isolated or the system sub-rack power turned off before physical extraction.
Q: How does the module handle a sudden drop or loss of field-side interrogation voltage?
A: Upon detecting an interrogation voltage drop below nominal operating limits, the onboard diagnostic logic flags a field power failure. The card freezes its active memory buffers, illuminates a local fault LED on the faceplate, and transmits an alert flag through the backplane to the operator console.
