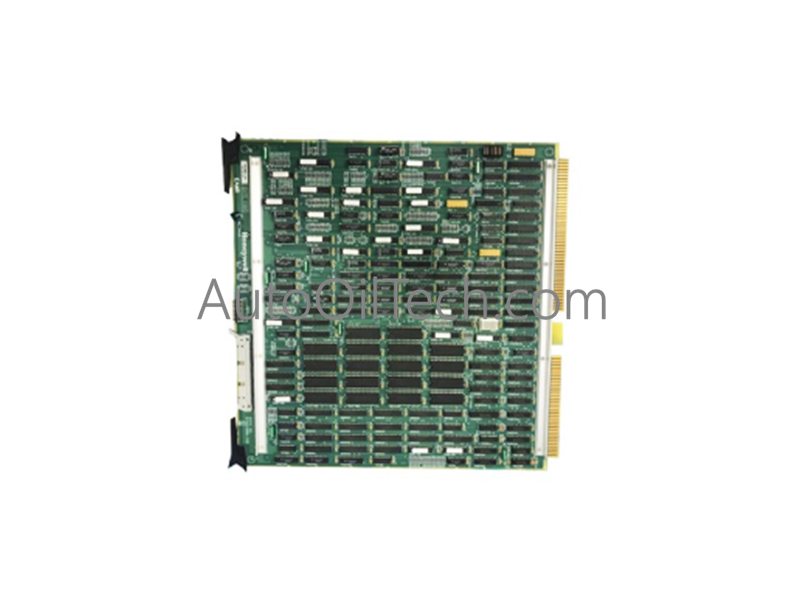

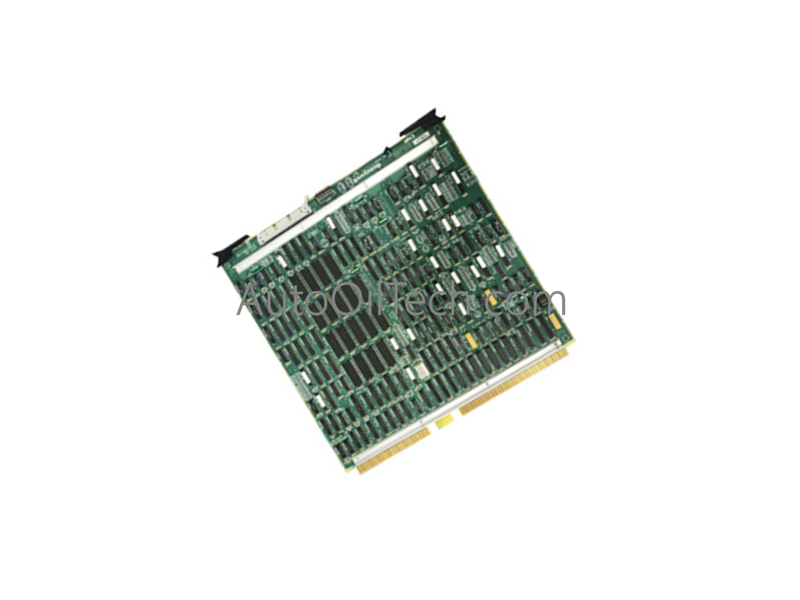

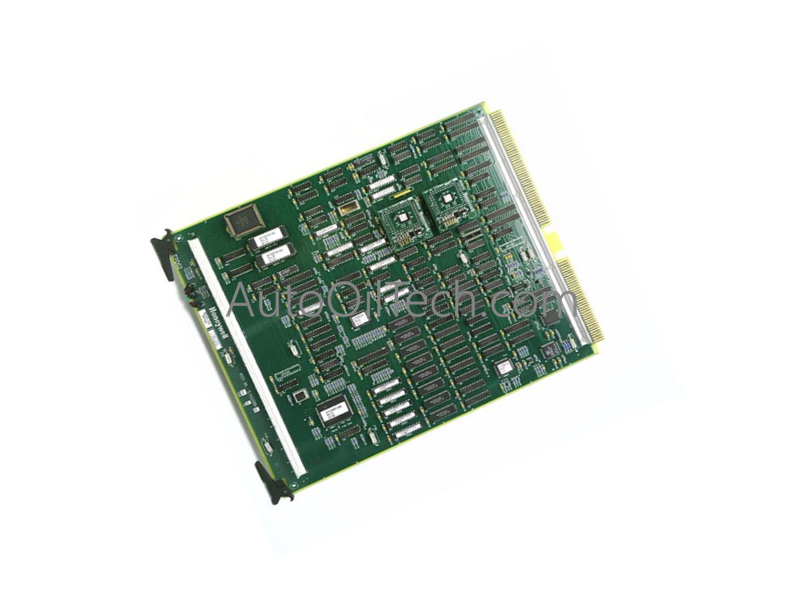

The Honeywell 51402457-200, also cataloged as the 51402457-200 Input/Output Processor (IOP) Module, operates as a dedicated hardware component for real-time field signal processing and I/O management within Honeywell Experion High-Performance Process Manager (HPM) subsystems.
Hardware Specifications
Parameter
Specification
Model
51402457-200
Brand
Honeywell
Type
Input/Output Processor (IOP) Module
Subsystem
High-Performance Process Manager (HPM)
Origin
United States (US)
Weight
1.2 lbs (0.54 kg)
Dimensions
7.75" x 5.75" x 2.25" (197 mm x 146 mm x 57 mm)
Operating Temp
-20 to +60 deg C (-4 to +140 deg F)
Storage Temp
-40 to +85 deg C (-40 to +185 deg F)
Power Supply
24 VDC nominal (20-30 VDC input range)
Output Voltage Range
10-30 VDC
Output Current
0.5 A per channel
Honeywell Process Control and DCS Optimization
4-20 mA HART Loop Protocol and Signal Conversion: The IOP hardware acts as an intelligent transceiver, converting raw analog field signals into digital data fields for the primary HPM controller. It handles multi-channel scaling, filtering, and linearization routines natively on the card, offloading low-level signal processing from the central processor.
Channel-to-Channel Isolation Matrix: To prevent field ground loops from compromising data integrity across the Experion platform, the module integrates galvanic and optical isolation barriers. Each channel features fault-containment circuitry that isolates electrical noise, transient voltage spikes, and common-mode disruptions to the affected terminal points without degrading adjacent channel registers.
