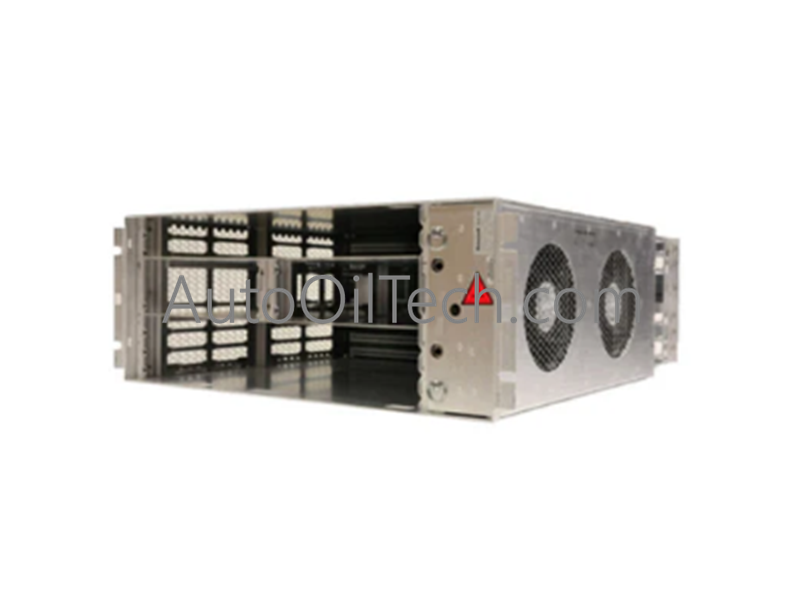

The Honeywell 51402455-100, also cataloged as the MP-DNCF02-200 Controller Module, operates as a dedicated hardware component for high-speed data exchange and processing interface control within industrial I/O backbone systems.
Hardware Specifications
Parameter
Specification
Model
51402455-100
Alternate ID
MP-DNCF02-200 / MP-DNCF02-201
Brand
Honeywell
Origin
USA
Weight
0.7 kg
Dimensions
105 x 105 x 28 mm
Operating Temp
0 to +55 deg C (Standard industrial cabinet envelope)
Power Consumption
500 W
Operating Voltage
120 VAC
Output Frequency
60 Hz
Load Capacity
10 A
Communication Interfaces
RS-485, Ethernet
Ingress Protection
IP20
Honeywell Process Control and DCS Optimization
Channel-to-Channel Isolation Matrix: The processing core embeds physical optical isolation boundaries separating the logical field-programmable buses from the high-voltage 120 VAC power input stages. This matrix structure protects adjacent internal data registers from voltage surges or spikes routed through field I/O connections.
Cold Junction Compensation (CJC) Routing: When processing analog signal distributions, the subsystem uses localized hardware reference chips to monitor ambient thermal variations across terminal block sectors. This localized measurement prevents temperature drift errors from affecting analog-to-digital data precision.
