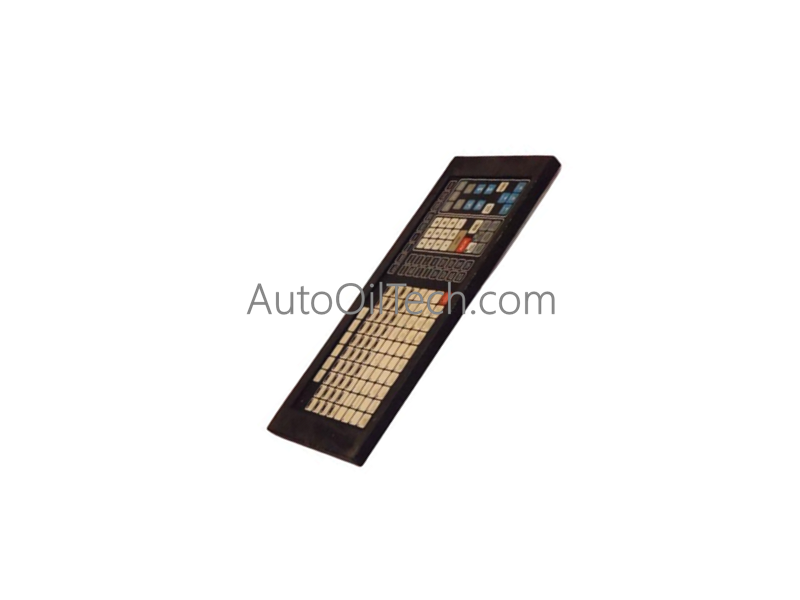

Honeywell 51400990-100 Operator Keyboards

The Honeywell 51400990-100, also cataloged as the 51400990-100 Operator Keyboard, operates as a dedicated hardware human-machine interface (HMI) input component for industrial process control consoles. Configured with a 147-key matrix, the panel-mount assembly provides direct physical execution of operator command entry, tactical function invocation, and system navigation. It converts mechanical key-switch actuations into digital scan codes natively at the keyboard logic tier to transmit console inputs parallel to active distributed control system (DCS) monitoring cycles.

Hardware Specifications

Industrial Control & Operator Interface Dynamics

• Backplane Bus Communication Velocity and Scan Code Register Mapping The 51400990-100 utilizes an integrated matrix controller to scan its 147 distinct key positions. When a key is actuated, the internal hardware filters mechanical contact bounce and writes the corresponding hex scan code to the local communication buffer within milliseconds, allowing the console interface card to transmit the input across the terminal bus without adding variable processing delay.
• Firmware Flash Compatibility and Key Matrix Validation The keyboard controller operates a specialized embedded microcode layer that maps the physical layout to the host system software registers. This internal mapping table remains stable across continuous operational shifts, preventing key-entry drops, incorrect character generation, or communication desynchronization during simultaneous multi-key commands.

Frequently Asked Questions

Q: What technical sequence or hardware states manifest if a mechanical short occurs across one of the 147 key-switch matrix lines?

A: The internal keyboard micro-controller detects the continuous, un-modulated current draw on the affected column-row intersection. It flags a matrix fault condition in its status block, isolates the specific key code to prevent repeating input streams from overloading the console bus, and routes a hardware error code to the terminal's diagnostic log.

Q: Can this 9.00 lbs operator keyboard be disconnected and replaced while the DCS console terminal remains energized and showing active process loops?

A: Yes, if the specific Honeywell terminal interface logic explicitly supports hot-plugging for its primary peripheral ports. Disconnecting the serial interface cable will temporarily freeze command inputs at that physical workstation, but it will not impact active background logic processing or graphic refresh cycles on the display monitor.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating Verify that the cutout boundary of the operator console console bay is clear of dirt, fluid residue, and sharp metal burrs before physical placement. Lower the 9.00 lbs keyboard assembly evenly into the drop-in opening, ensuring that the integrated perimeter sealing gasket seats completely flush against the mounting surface to protect the internal electrical traces from dust or splash infiltration. Secure the under-panel retaining brackets to damp low-frequency console vibrations.
• Conductor Separation, Wireway Constraints, and Shield Grounding Route the heavy-duty serial interface cable away from internal console high-voltage AC utility outlets, cooling fan power cords, or inductive terminal components to prevent electromagnetic noise injection. Connect the keyboard's chassis ground strap directly to the console frame's central copper star-ground rail, providing a low-impedance path to earth to shield the matrix logic from electrostatic discharge (ESD) transients.
