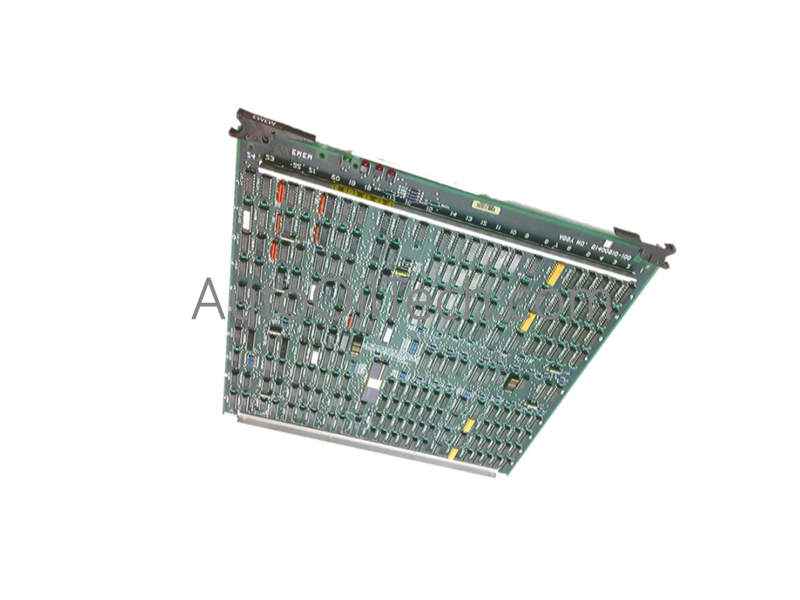

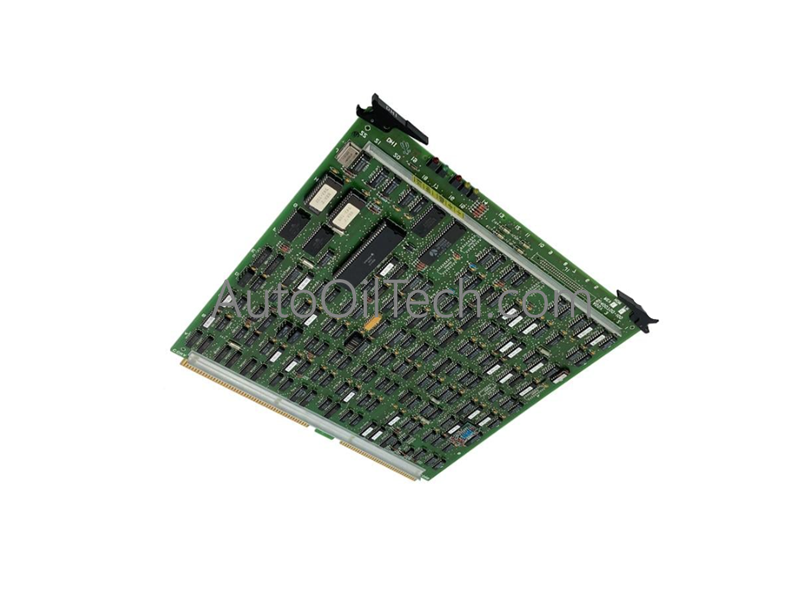

Honeywell 51400910-100 Enhanced Memory Board

The Honeywell 51400910-100, also cataloged as the 51400910-100 Enhanced Memory Board (EMEM), operates as a dedicated hardware component for high-speed data storage and volatile variable caching within Honeywell distributed control systems. Configured with a 1 MW (Mega-Word) capacity for TDC 3000 architectures, this card provides direct physical and electrical execution of real-time memory mapping. It stores process databases, history modules, and operational registers natively at the hardware tier to maintain instant access times parallel to central processing unit (CPU) instruction cycles.

Hardware Specifications

Process Control & Memory Layer Scaling

• Backplane Bus Communication Velocity and Word Latching The 51400910-100 interfaces directly with the host chassis parallel processor bus data lines. The 1 MW memory matrix utilizes dedicated high-speed access traces to sync word caching directly with CPU instruction steps, minimizing bus latency and allowing rapid data retrieval for critical plant-wide control loops.
• Firmware Flash Compatibility and Parity Verification The enhanced memory circuit board incorporates onboard parity generation and checking arrays. This hardware-tier validation runs background memory integrity scans continuously across the full 0 to 60 deg C operating window, preventing data corruption or memory bit-flips from modifying the active distributed control system database.

Frequently Asked Questions

Q: What specific hardware states or system registers flag an internal parity error or cell breakdown on this memory board?

A: The onboard parity check circuit instantly detects a word discrepancy, sets an unmasked memory fault bit in the processor status register, and illuminates the red error LED on the card faceplate. The host processor isolates the affected memory segment and triggers a system diagnostic alarm to prevent invalid variables from corrupting active logic.

Q: Can this 2.80 lbs EMEM memory module be extracted or swapped while the TDC 3000 processor rack is energized and executing active loops?

A: No. Because this card houses the active, running database and variable registers for the associated processing node, removing it under power breaks data lines, destroys running process information, and can generate transient electrical arcing across the high-density backplane pins that damages adjacent logic cards.
