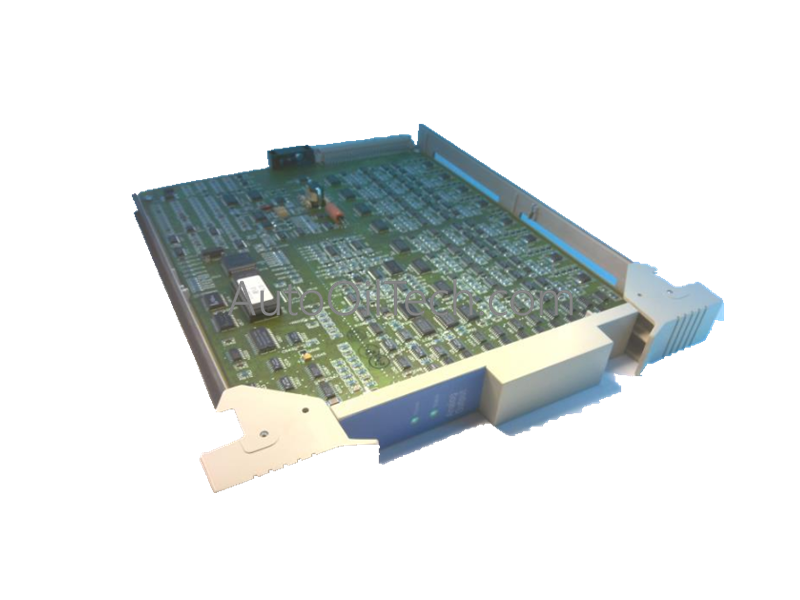

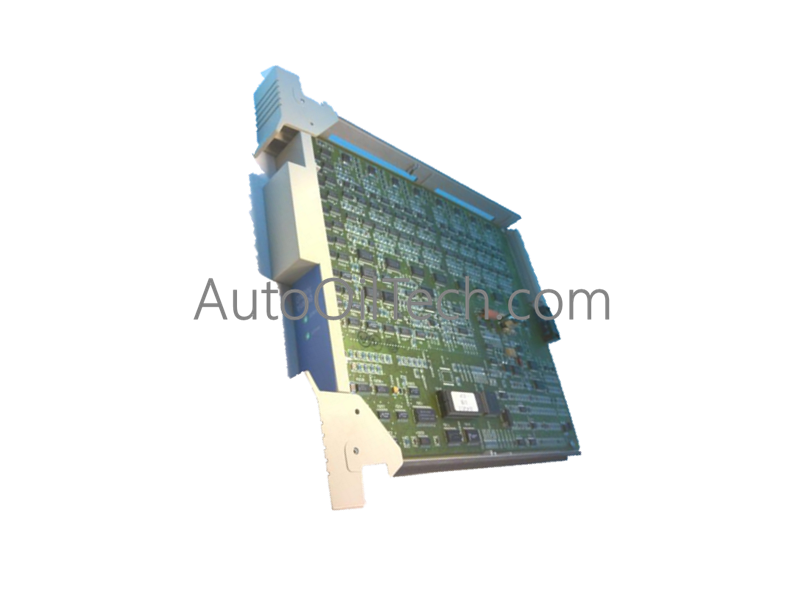

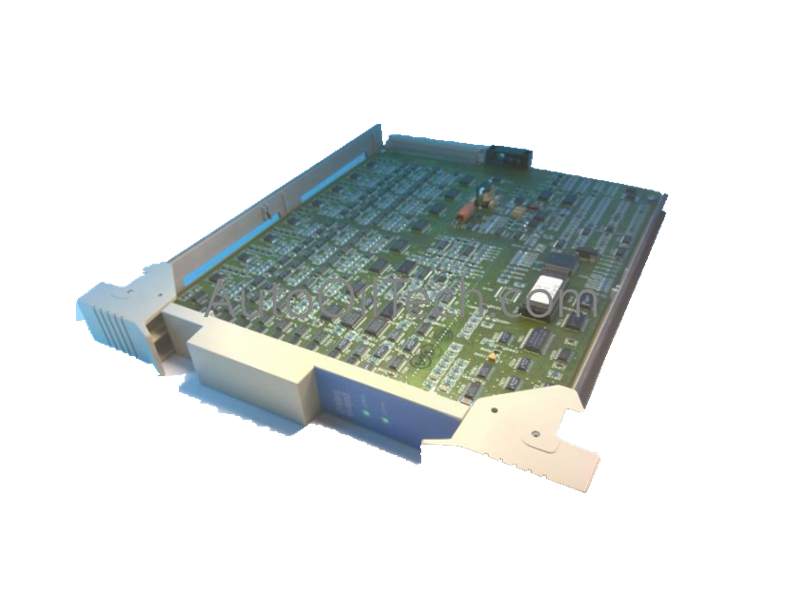

Honeywell 51309152-175 Analog Output Module

The Honeywell 51309152-175, also cataloged as the 51309152-175 Analog Output Module, operates as a dedicated hardware component for direct digital-to-analog signal conversion and field actuator drive execution within Honeywell TDC 3000 systems. The assembly converts internal system backplane command data into calibrated analog current loops to drive final control elements across distributed process automation architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control and DCS Hardware Characteristics

• 4-20 mA HART Loop Protocol Output: Delivers highly stable analog current signals to final control elements, ensuring linear control valve positioning and actuator response across DCS loops.
• Channel-to-Channel Isolation: Internal galvanic barriers prevent stray ground loop currents from interfering with adjacent analog channels on shared backplane racks.
• Cold Junction Compensation Coordination: Operates within the process control backplane framework to align output control commands with temperature-compensated input module data.

Frequently Asked Questions

Q: Can the 51309152-175 module be removed or inserted while the backplane rack is live?

A: Live module replacement must follow site safety protocols and hazardous area classifications; hot-swapping should be restricted to non-hazardous or de-energized conditions to prevent bus disruption or arcing.

Q: How does the module handle signal isolation to protect internal backplane electronics?

A: The card incorporates channel-to-channel and channel-to-bus galvanic isolation barriers to prevent field-side voltage surges from reaching the central processor chassis.

Q: What primary factors lead to analog output channel drift on this card?

A: Output drift is commonly caused by operating outside environmental temperature limits, improper shield grounding on field wiring, or voltage drops across power supply lines.

Field Installation Guidelines

1. Backplane Slot Alignment: Align the circuit board edges with the card guide rails inside the TDC 3000 chassis. Slide the module in firmly until the multi-pin rear connector seats completely into the backplane receptacle.
2. Latch Securing: Engaged top and bottom ejector latches completely to lock the card into position and prevent vibration-induced pin disengagement.
3. Shield and Drain Grounding: Terminate all field cable shield drain wires at the cabinet earth ground bus bar at a single point to prevent ground loops from disturbing 4-20 mA current regulation.
4. Pre-Commissioning Loop Check: Verify 24 VDC auxiliary loop power levels and confirm correct output channel assignment within the system software before switching output channels to automatic control mode.
