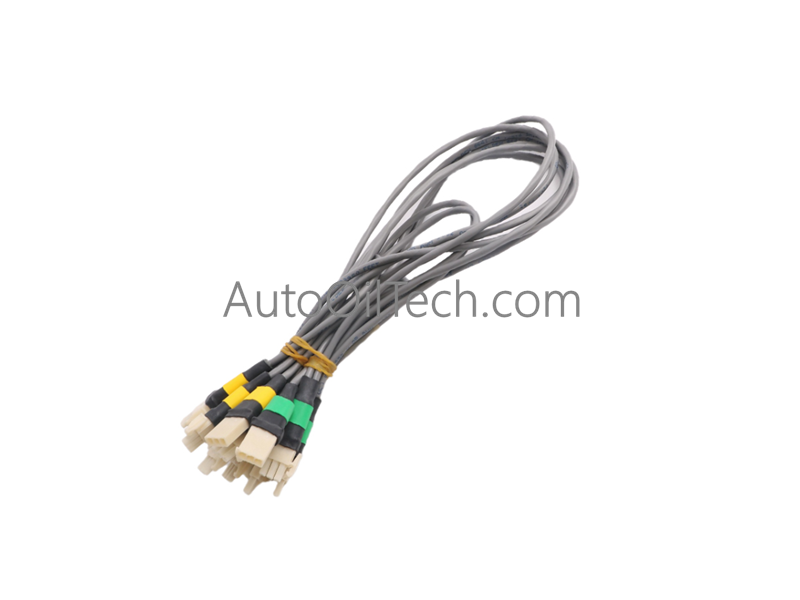

Honeywell 51308052-200 Enclosure DC Cable

The Honeywell 51308052-200, also cataloged as the 51308052-200 Enclosure DC Cable, operates as a dedicated hardware component for direct power delivery and thermal telemetry processing within Experion PKS system enclosures. The assembly connects 24 VDC internal power buses while monitoring cabinet ambient conditions via embedded sensor technology, providing real-time hardware status data across distributed control system backplanes.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control and DCS Hardware Characteristics

• Internal Channel Isolation: Formed with individual conductors engineered for low cross-talk, preventing electrical noise from adjacent 4-20 mA HART analog loops from corrupting power bus stability.
• Backplane Thermal Reference Support: Interfaces directly with cabinet monitoring nodes to supply baseline enclosure temperature metrics, assisting adjacent thermocouple input modules with cold junction compensation calculations.
• Power Bus Integrity: Maintained via direct-fit termination assemblies optimized to handle nominal 24 VDC current loads without localized resistive heating across connector pins.

Frequently Asked Questions

Q: Can the 51308052-200 Enclosure DC Cable be disconnected while the 24 VDC power bus is energized?

A: Hot-swapping depends on cabinet hazardous location ratings; live removal is generally restricted to non-hazardous environments to prevent arc flash risks on energized power pins.

Q: How does this assembly maintain signal isolation in high-density DCS cabinets?

A: The harness uses dedicated conductor shielding to isolate the 24 VDC lines from high-frequency noise generated by nearby fieldbus communications or analog I/O wiring.

Q: What is the primary cause of communication faults on this internal DC cable line?

A: Faults typically stem from improper connector latch engagement, damaged shield grounds, or exceeding the minimum bend radius during installation in cramped wireways.

Field Installation Guidelines

1. Routing and Physical Clearance: Fasten the cable along designated cabinet raceways. Maintain a minimum bend radius of 8 times the outer cable diameter to protect internal conductor integrity and prevent pin displacement at connector heads.
2. Shield Grounding Procedure: Connect the cable shield drain wire directly to the enclosure earth ground bus bar. Ensure a clean, unpainted metal connection to prevent ground loops from disturbing system power rails.
3. Connector Alignment and Seating: Align connector pins with the matching receptacle on the backplane or power module. Push straight in and secure any locking clips or thumbscrews; do not apply excessive force exceeding 0.6 Nm to avoid structural damage.
4. Pre-Power Loop Verification: Measure the 24 VDC supply voltage at the terminal connections prior to fully energizing downstream I/O cards to ensure voltage tolerances fall within system operational limits.
