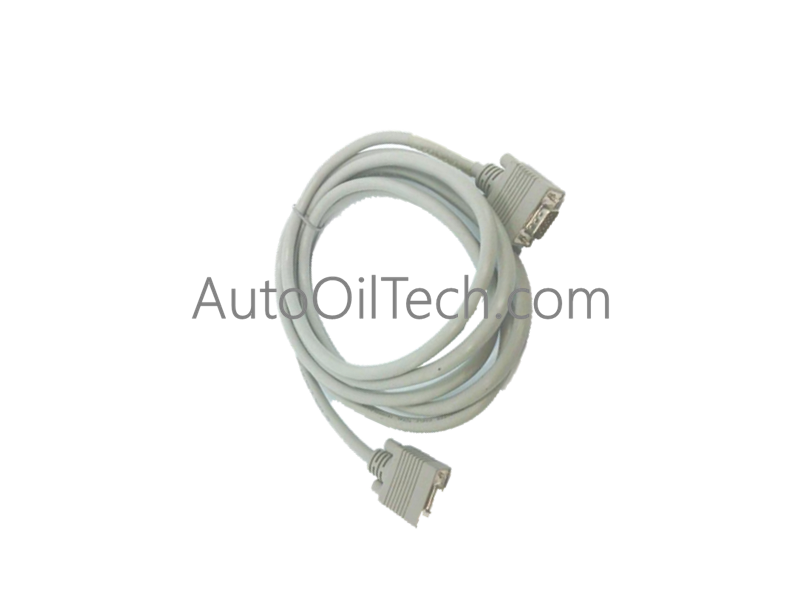

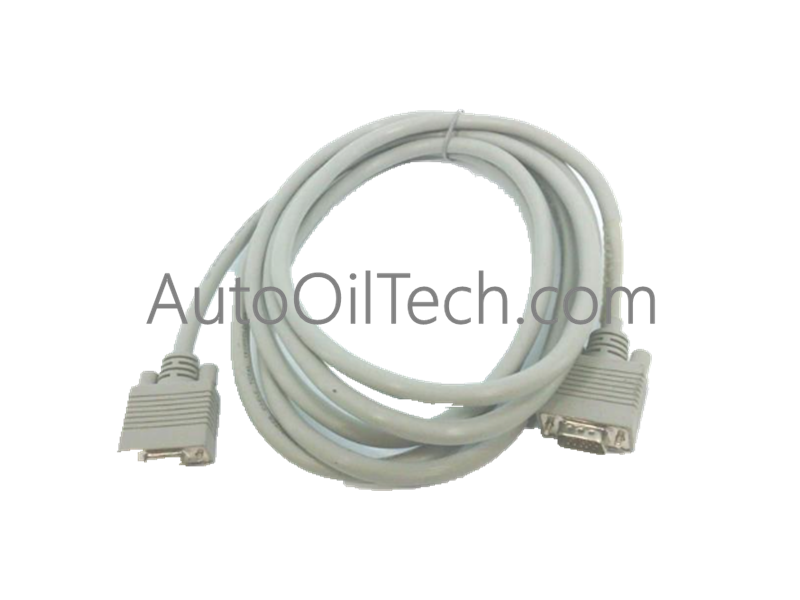

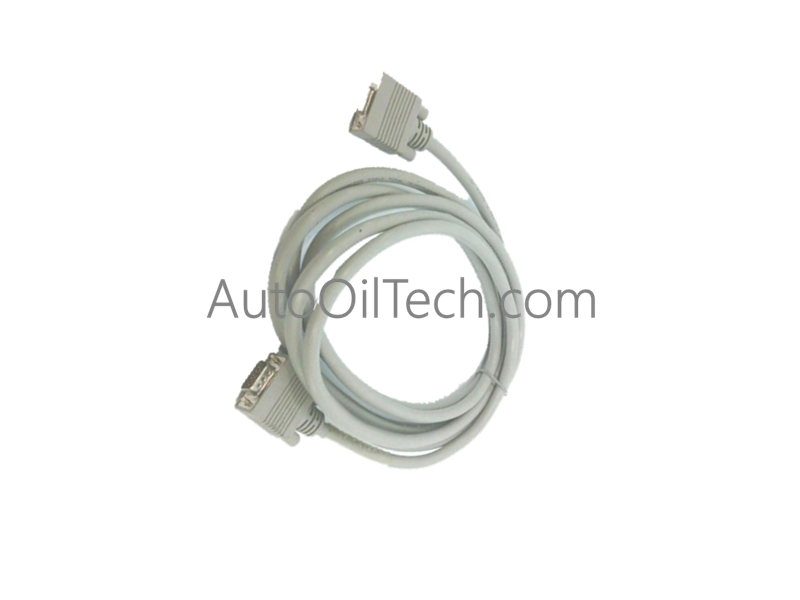

Honeywell 51304495-036 Experion Series Connecting Cable

The Honeywell 51304495-036, also cataloged as the 51304495 Connecting Cable, operates as a dedicated hardware component for digital output signal transmission and interconnectivity within Honeywell DCS platforms.

Hardware Specifications

Process Control and Channel Isolation Properties

• 4-20 mA HART Loop Shield Continuity: High-density overall shielding prevents transient electromagnetic noise and cross-talk from corrupting adjacent 4-20 mA analog feedback loops and control lines.
• Galvanic Noise Suppression: Heavy-duty shield construction isolates high-speed digital output switching signals from sensitive low-voltage backplane logic circuits.
• Channel-to-Channel Isolation: High-dielectric conductor insulation maintains channel-to-channel physical separation, preventing signal degradation across multi-point digital interface runs.

Frequently Asked Questions

Q: Can the 51304495-036 cable be hot-swapped during active controller operation?

A: Hot-swapping output cables while field loads are energized is not recommended, as momentary contact bounce can cause undesired switching of connected actuators or motor starters.

Q: What insulation materials are used to withstand harsh DCS cabinet environments?

A: The cable utilizes high-grade tinned copper conductors jacketed in industrial PVC insulation to resist mechanical strain, chemical exposure, and environmental fatigue.

Q: Does this cable assembly require external bus power to function?

A: No, the assembly is a passive physical connection medium that transfers discrete control signals directly between system modules and field termination units.

Field Installation Guidelines

1. Inspect the cable multi-pin connector headers and locking mechanisms for physical integrity prior to mating with I/O module receptacles.
2. Maintain a minimum bending radius of 50 mm along cabinet wireways to avoid mechanical stress on internal copper conductors.
3. Separate digital output cable runs from high-voltage AC power distribution circuits by a minimum physical distance of 300 mm.
4. Secure cable shield drain wires to the main cabinet grounding bus to guarantee proper frame grounding and EMI rejection.
