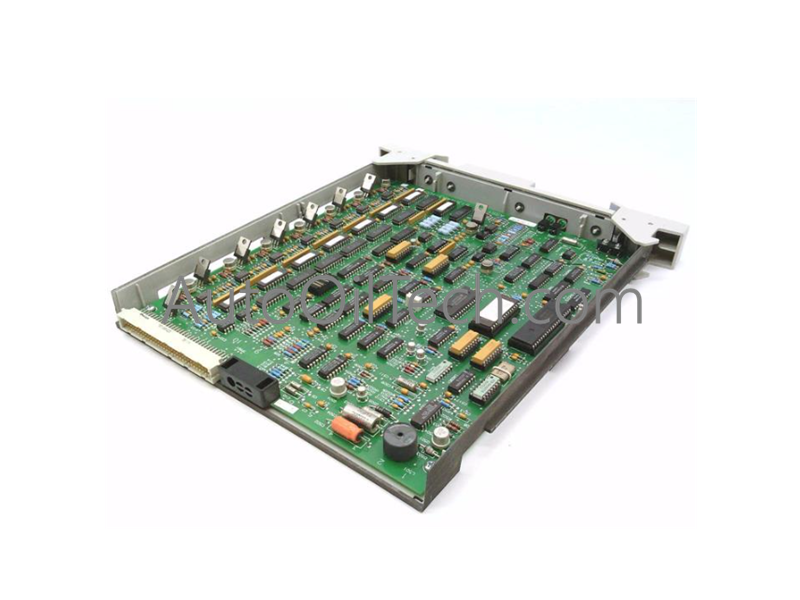

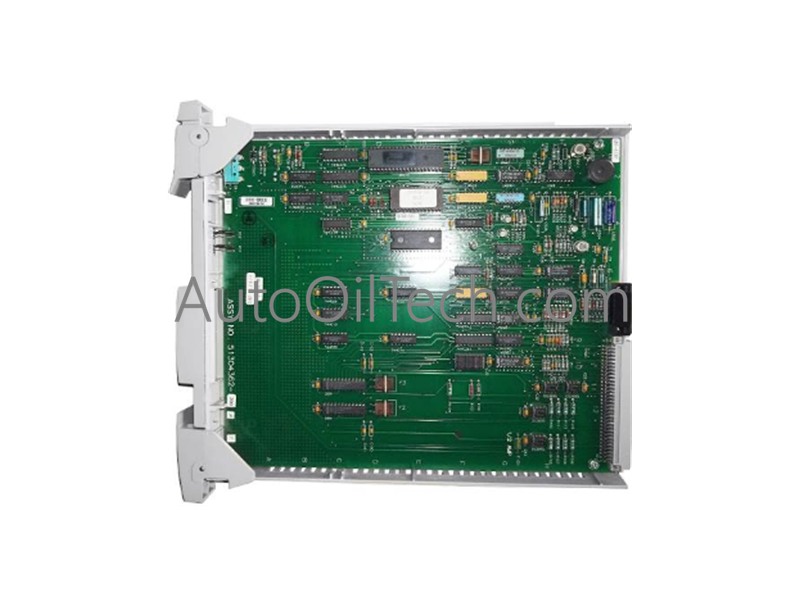

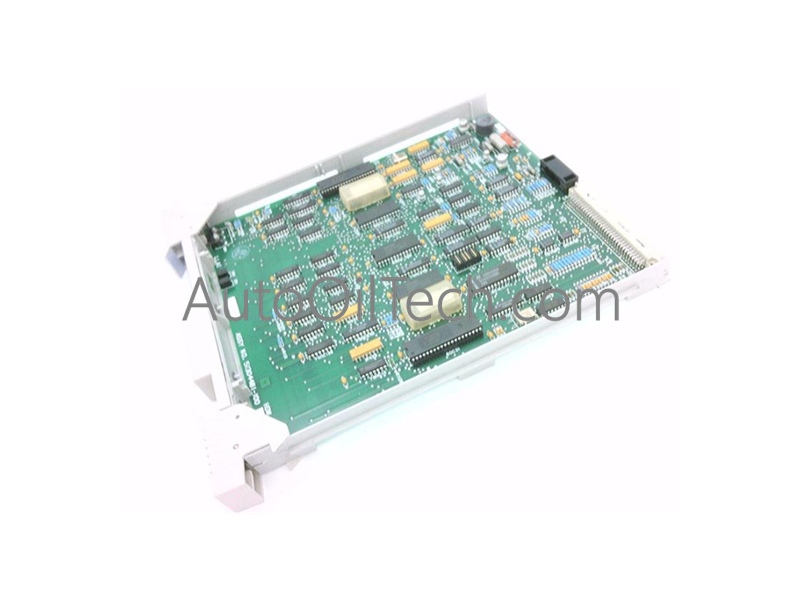

Honeywell 51304335-100 Analog Output Redundancy Termination Board

Configured for specific technical task in Universal Control Network (UCN) platforms, the Honeywell 51304335-100 (51304335-100 Output Redundancy Termination Board) provides direct physical/electrical execution. The board-level industrial hardware component, also cataloged under alternate part number MU-TAOX12, serves as a dedicated physical marshalling node engineered to arbitrate, combine, and route parallel analog signal feeds into dual-redundant deployment configurations natively at the hardware tier.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Passive Diode Steering Arrays The terminal assembly incorporates passive tracking and electronic diode-steering networks designed to manage paired 4-20 mA HART loop protocol outputs. The internal hardware balancing infrastructure isolates the primary and secondary driver circuits, allowing secondary digital diagnostics and primary process variables to pass through the termination rail simultaneously without encountering impedance shifts or loop attenuation.
• Channel-to-Channel Isolation and Fault Containment Rails The structural board layout implements strict physical and galvanic isolation boundaries across all connected channels. If an active upstream analog output module suffers a localized component failure, short circuit, or complete power loss, the internal physical steering logic blocks the fault from back-propagating into the alternate active card, maintaining uninterrupted distributed control system (DCS) loop tracking.

Frequently Asked Questions

Q: How does the termination board maintain continuous loop execution during a hot-swap replacement of an I/O card?

A: The MU-TAOX12 architecture utilizes a passive diode-steering array that continuously cross-links the outputs of the primary and redundant modules. When an active analog output card is extracted from the system frame for maintenance, the hardware matrix shifts the full loop current load to the parallel card instantly, preventing signal dropouts or bumps on the active field device.

Q: What behavioral outcome occurs if an external field wire short-circuits at the termination block?

A: The terminal board features integrated current-limiting and fault-isolation networks on every channel rail. A short circuit on an external loop is contained directly at the field interface tier, preventing the high fault current from traveling backward into the internal backplane logic arrays or affecting neighboring channels on the shared I/O frame.
