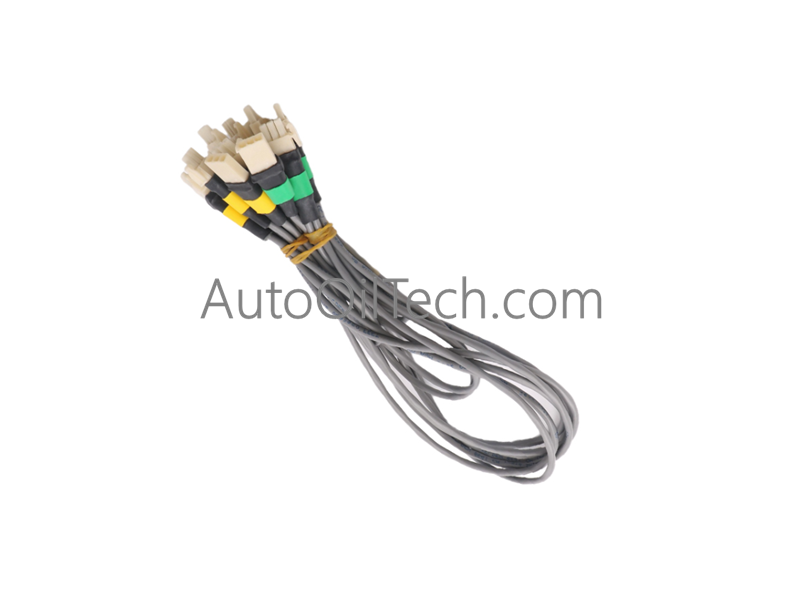

Honeywell 51203192-200 Optic Extender Cables

Configured for high-speed deterministic bus extension in Experion PKS distributed control networks, the Honeywell 51203192-200 (51203192-200 Fiber Optic Extender Cable) provides direct physical/electrical execution. It transforms localized logical data frames into optical pulses for long-distance transmission across Series C hardware nodes without introducing phase shifts or protocol breakdowns.

Hardware Specifications

Distributed Process Control & DCS Interconnects

• 4-20 mA HART Loop Protocol and Fieldbus Routing Layer The fiber optic media functions as a transparent layer-1 physical data highway. It encapsulates high-density digital sub-system telemetry, including serialized 4-20 mA HART device parameters and fieldbus packets, into a continuous optical bitstream, preventing transmission jitter from degrading downstream process variable values.
• Complete EMI/RFI Immunity and Galvanic Isolation The non-conductive glass/silica core provides absolute physical isolation between remote node segments. By utilizing light waves instead of electrical voltages, the cable eliminates the risk of ground loops and provides total immunity against high-frequency electromagnetic fields generated by adjacent high-voltage switchgear.

Frequently Asked Questions

Q: Does the 51203192-200 fiber optic cable assembly support online hot-swapping under live loop conditions?

A: Yes. Because the cable transmits purely non-electrical optical signals, pulling or inserting the connector does not produce electrical sparks or transient surges. In redundant Series C configurations, the secondary fiber link automatically absorbs the full bus traffic without interrupting active process loops.

Q: How does the cable construction protect against optical signal attenuation over long-term deployment?

A: The assembly features a ruggedized outer cladding and robust internal buffering layers. This structural jacket isolates the internal glass cores from mechanical compression, micro-bending stress, and ambient moisture intrusion, keeping optical insertion loss within nominal decibel tolerances throughout its operational lifespan.

Field Installation Guidelines

• Connector Alignment, Keyway Engagement, and Optical Interface Locking Inspect the fiber optic connector tips with a clean scope and wipe them with lint-free optical wipes before insertion. Align the physical keyway pins precisely with the receiving sockets on the Series C or MTL module, pressing straight inward until the mechanical latch engagement clicks firmly into place.
