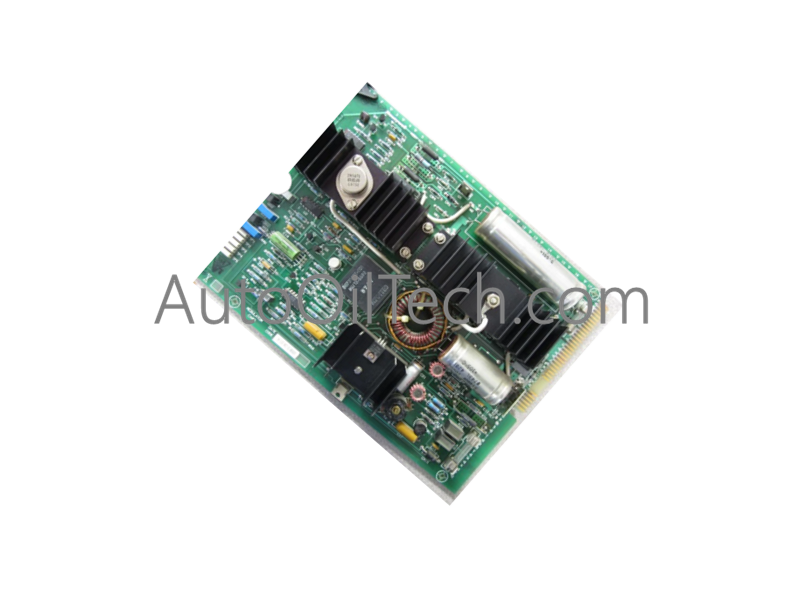

The Honeywell 30731808-503, also cataloged as the 30731808-503 Regulator Card, operates as a dedicated hardware component for power conversion and voltage regulation within distributed control system platforms.
Hardware Specifications
Parameter
Specification
Model
30731808-503
Brand
Honeywell
Origin
USA
Weight
0.68 kg
Dimensions
Standard Slide-in Module Form Factor
Operating Temp
0 deg C to 60 deg C
Power Consumption
24 VDC Input from Backplane
4-20 mA HART Loop Protocol and Channel Isolation
The 30731808-503 processes incoming 24 VDC power from the backplane to supply regulated 5 VDC and 12 VDC outputs to the chassis. The 4-20 mA HART loop protocol compatibility ensures seamless integration with supervisory monitoring networks for diagnostic feedback transmission. Channel-to-channel isolation features protect internal logic circuits from power rail anomalies and transient spikes. Cold junction compensation (CJC) and thermal drift mitigation circuits maintain output voltage stability across varying operational enclosure temperatures.
Frequently Asked Questions
Q: What are the primary input and output power characteristics of this regulator card?
A: The module accepts a 24 VDC input from the backplane and delivers regulated 5 VDC and 12 VDC outputs directly to the chassis architecture.
Q: How is physical protection managed during overcurrent events?
A: The unit features two removable fuses for circuit protection and includes test sockets designated for fault detection and calibration tasks.
Q: Can this slide-in module be extracted while the system is powered?
A: System power must be isolated prior to insertion or removal to prevent electrical arcing and damage to backplane connector pins.
Field Installation Guidelines
Ensure that the rack power supply is completely de-energized before sliding the slide-in regulator card into the designated chassis slot.
Verify proper alignment with internal guide rails to prevent bending or damaging edge connector pins during installation.
Maintain adequate cabinet ventilation clearances above and below the rack chassis to support convective cooling across the module surface.
Inspect all removable fuses and test sockets for secure seating and mechanical integrity before restoring primary system power.
