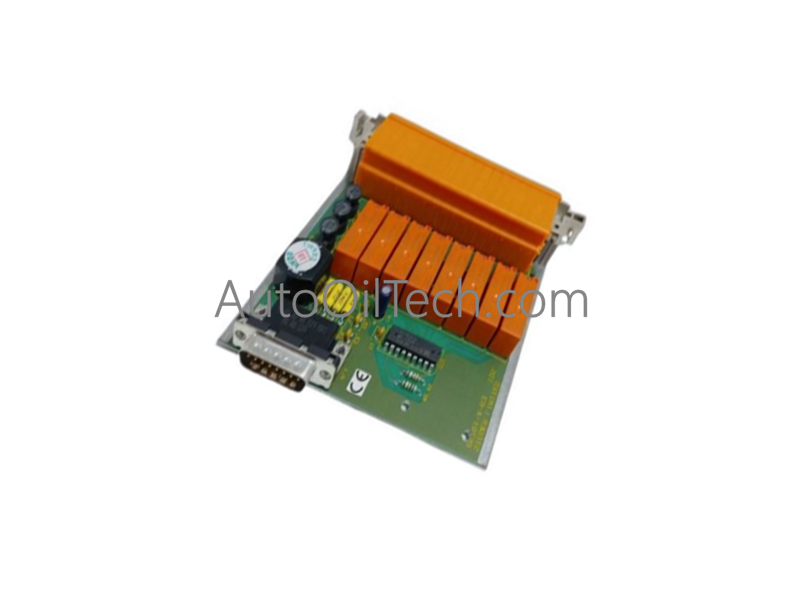

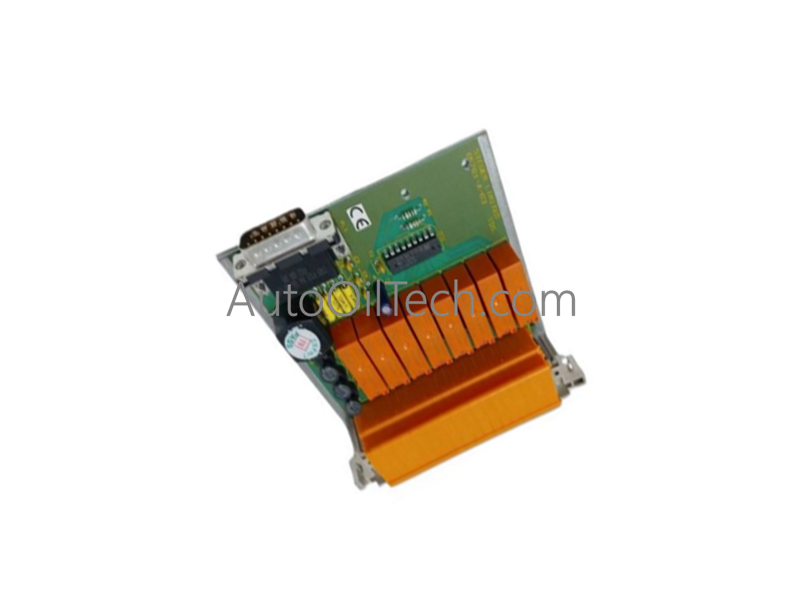

Honeywell 05701-A-0329 Interface Relay Card

The Honeywell 05701-A-0329, also cataloged as the 05701-A-0329 Relay Card, operates as a dedicated hardware component for discrete contact output execution within System 57 (SYS57) gas detection platforms. The add-on circuit board acts as an electromechanical switching interface, converting logical alarm states from up-circuit gas monitoring modules into distinct physical relay contact outputs to drive external emergency ventilation fans, sounders, or isolation valves.

Hardware Specifications

Process Control and DCS Instrumentation

• High-Density Changeover Relay Matrix: The board integrates 8x changeover relays arranged into functional blocks, including dedicated Triple DPCO (Double Pole Change Over) pathways. This layout allows a single gas alarm trigger register to switch multiple independent high-current loops simultaneously, enabling concurrent execution of local emergency stops and remote DCS fault signaling.
• Channel-to-Channel Isolation Parameters: To maintain system stability during heavy inductive load switching, the module's topology implements strict channel-to-channel isolation boundaries. The physical separation between the 24 VDC coil activation paths and the dry electromechanical relay contacts prevents electrical noise, back-EMF spikes, and cross-channel short circuits from migrating back into the shared System 57 control backplane.

Frequently Asked Questions

Q: What is the benefit of the 8x changeover relay layout in a gas interface application?

A: The configuration provides extensive hardware flexibility. Because each changeover relay provides both Normally Open (NO) and Normally Closed (NC) dry contacts, engineers can configure individual lines for either fail-safe de-energized operation (e.g., triggering a horn) or fail-safe energized tracking (e.g., holding a fuel gas valve open).

Q: Can the 05701-A-0329 card be hot-swapped while the primary gas monitoring rack is active?

A: No. Removing this interface card while the system is live will break all loops routed through its 8 changeover relays. This disruption will likely trigger unpredicted downstream fault trips or safety shutdowns on connected field equipment. Always isolate or bypass the output circuits prior to card replacement.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Slide the plug-in relay card straight along the plastic slot guide tracks inside the System 57 sub-rack housing. Press the board firmly backward until the rear interface connector pins fully seat into the backplane socket array, and fasten the front panel retention screws completely to secure the unit against industrial plant vibration.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all heavy field contact wiring and inductive load lines through enclosed panel wire ducts completely isolated from low-voltage analog sensor input cables or network communication links. Ground the main sub-rack frame directly to the control panel's central copper earth bar using a low-resistance strap to safely shunt away any stray switching arcs.
