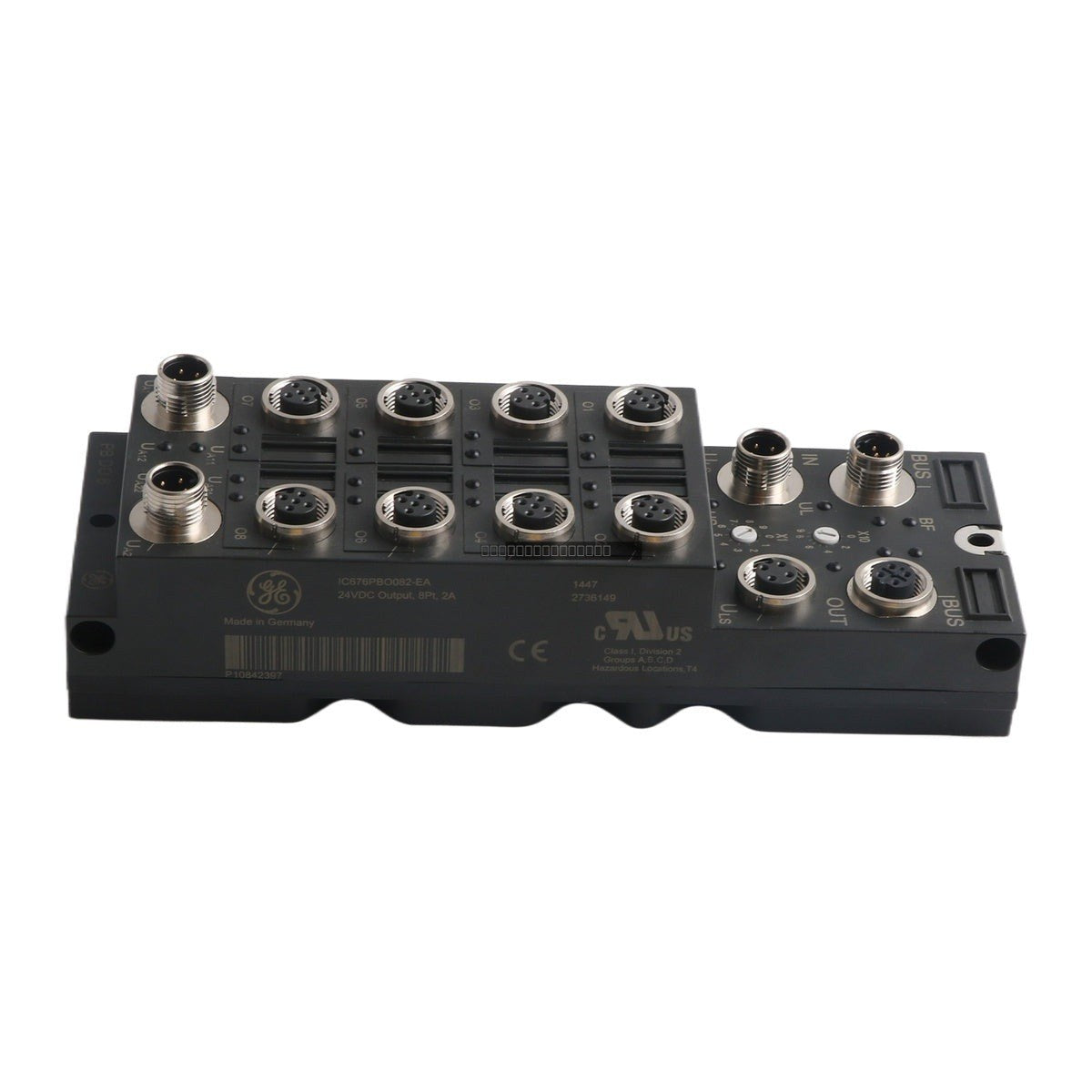

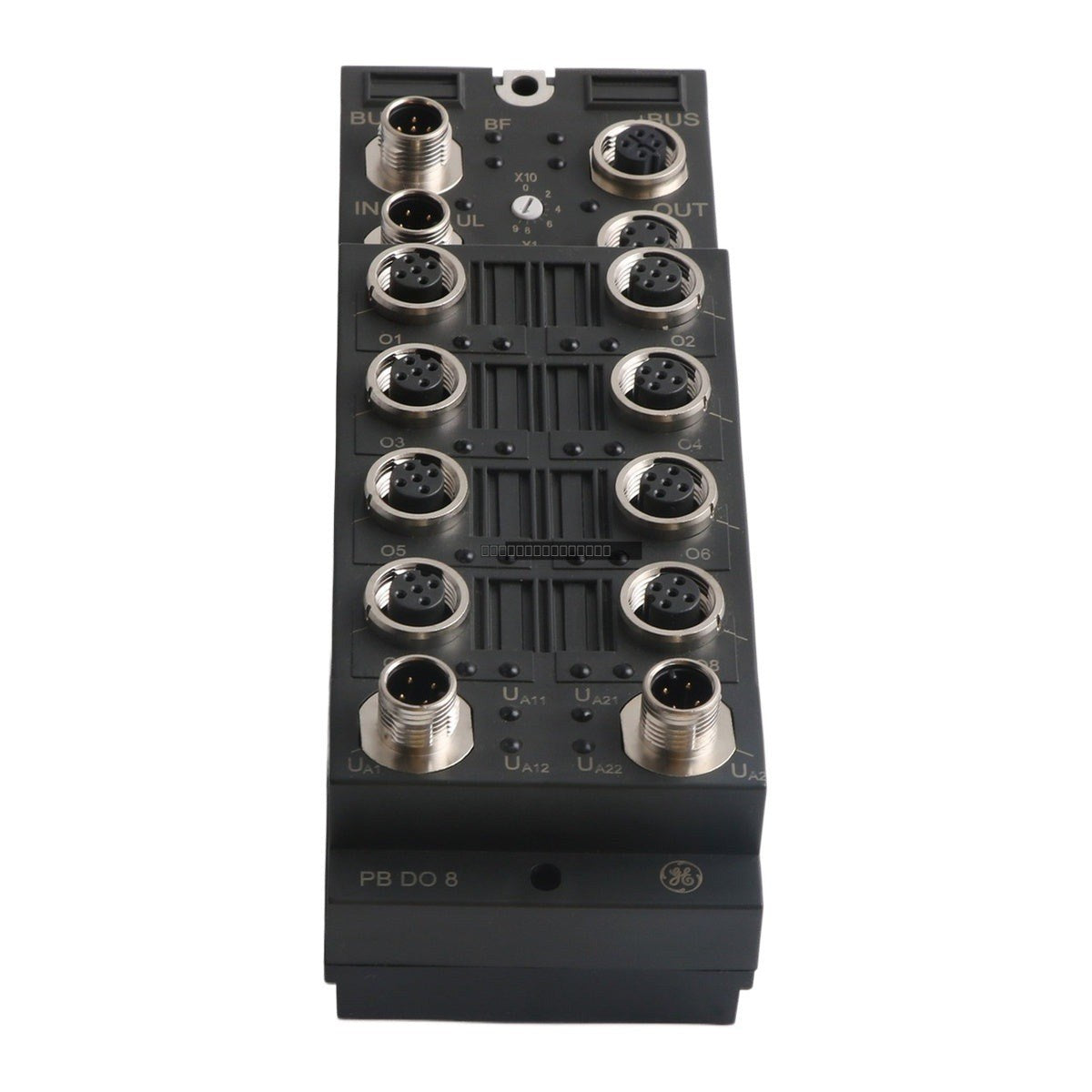

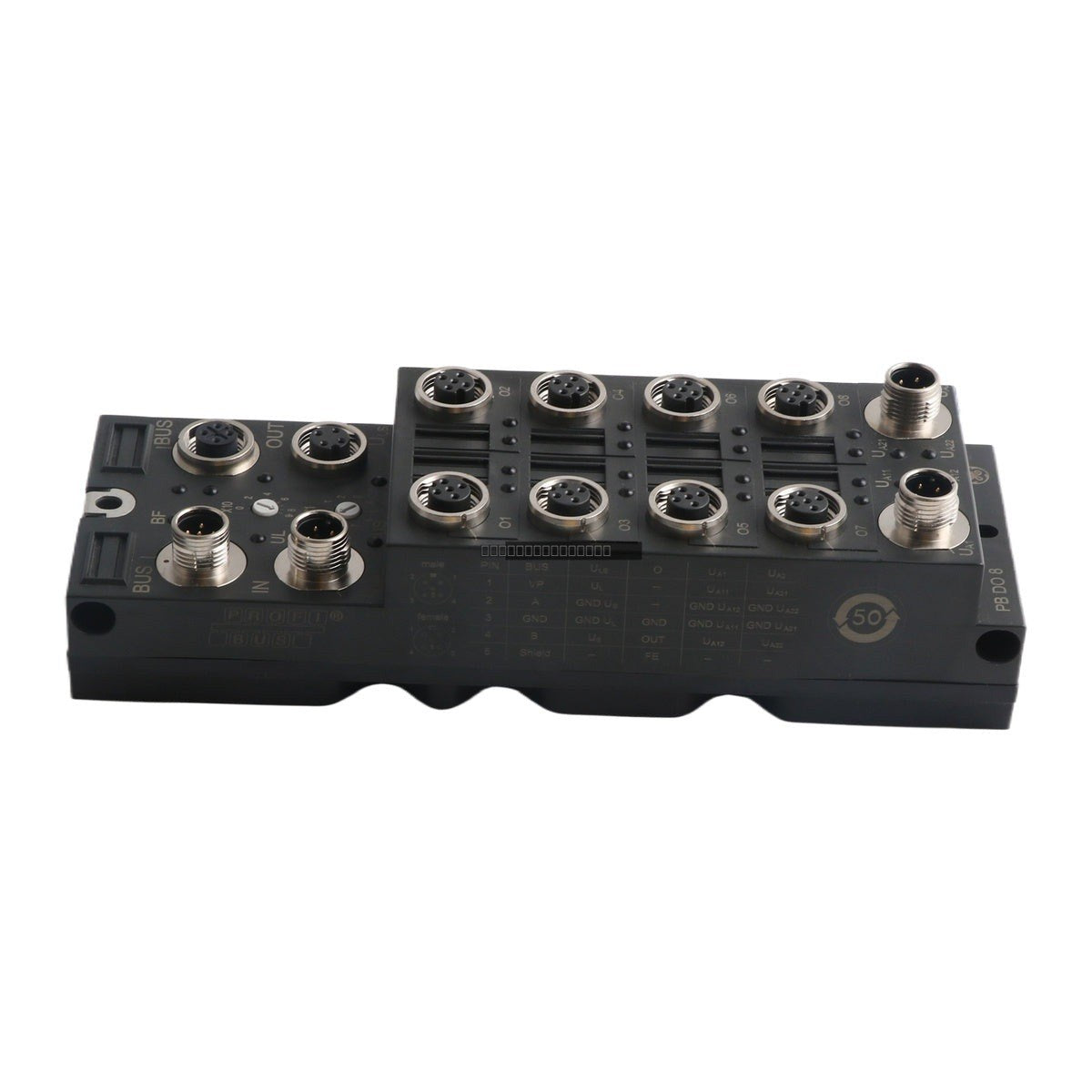

The General Electric IC676PBO082 is a robust IP67-rated output block designed for distributed I/O applications in harsh industrial environments. This module provides 8 points of digital output, specifically engineered for 24 VDC positive logic systems. With a current capacity of 2A per point, it is suitable for driving various industrial actuators, relays, and solenoids directly in the field without the need for additional protective enclosures.
Features
IP67-rated housing for protection against dust and water ingress in demanding industrial settings.
8-point digital output configuration supporting 24 VDC positive logic.
High-current output capability of 2A per channel.
Integrated Profibus communication interface for seamless integration into existing fieldbus networks.
Compact design suitable for decentralized mounting directly on machinery or equipment frames.
Technical Specifications
Model
IC676PBO082
Spare Model
IC676PBO082-EA
Output Type
Digital Output (Positive Logic)
Voltage Rating
24 VDC
Channel Count
8 Points
Current Rating
2A per point
Communication Protocol
Profibus
Protection Rating
IP67
Manufacturer
General Electric
Installation Guidelines
Ensure the module is mounted in a location that minimizes exposure to extreme mechanical vibration or shock.
Verify that the power supply is disconnected before wiring the output channels to prevent electrical damage.
Use appropriate shielded cabling for Profibus communication to maintain signal integrity and minimize EMI.
Ensure all M12 or field-connector seals are properly tightened to maintain the IP67 ingress protection rating.
Confirm that the load connected to each output point does not exceed the 2A maximum current rating.
FAQ
What is the primary communication protocol for this module?
The IC676PBO082 utilizes the Profibus communication protocol for data exchange with the PLC or master controller.
Is this module suitable for outdoor use?
Yes, the IP67 rating indicates that the module is protected against dust and temporary immersion in water, making it suitable for harsh industrial environments, provided it is installed according to the manufacturer's guidelines.
What does the 24 VDC positive logic mean?
Positive logic (sourcing) means that the output provides a positive voltage signal to the load when the channel is in the ON state.
