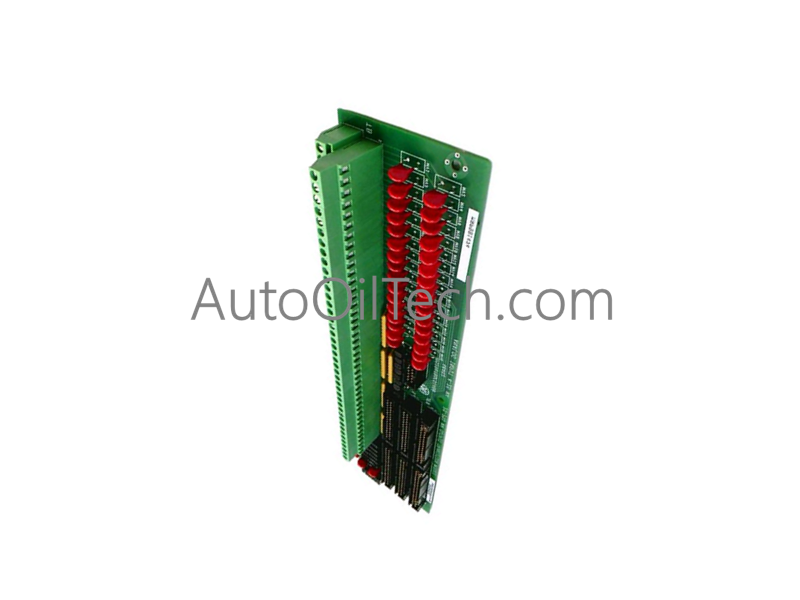

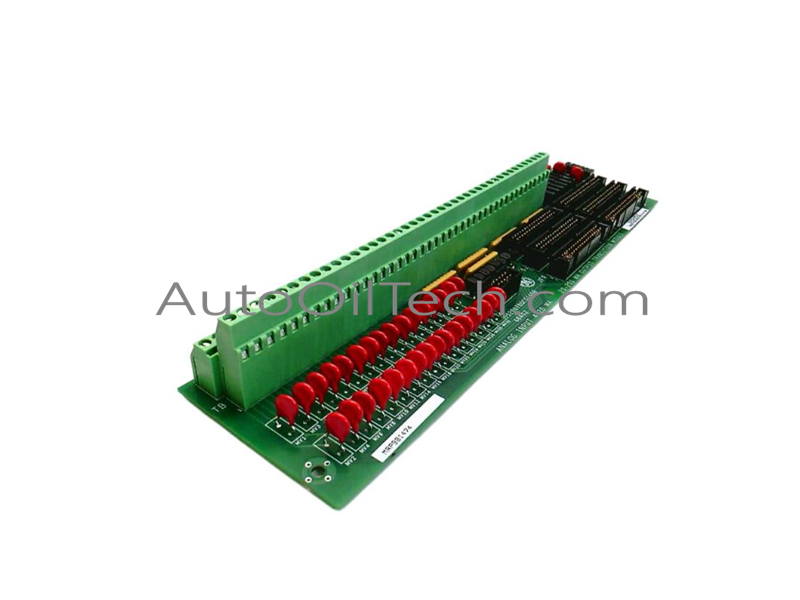

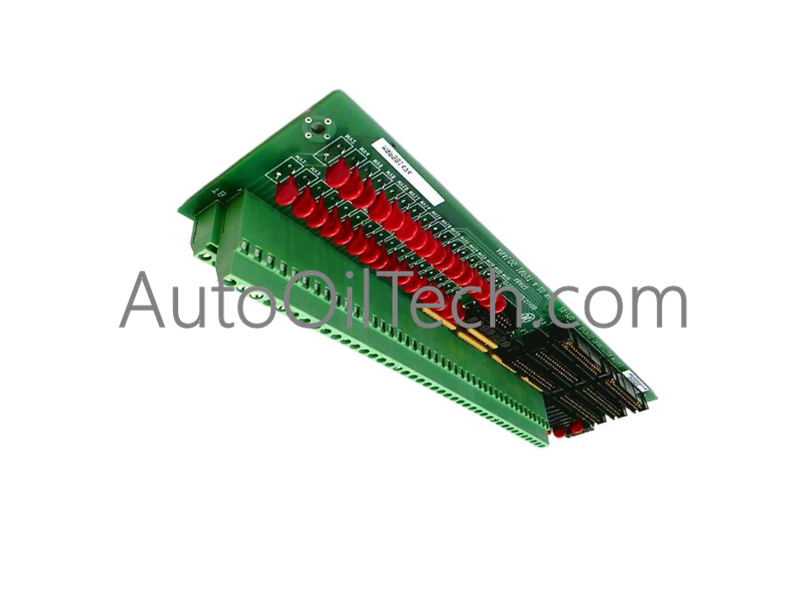

The General Electric DS200TBQCG1A, also cataloged as the DS200TBQCG1A Analog Termination Board, operates as a dedicated hardware component for analog signal termination and routing within Mark V turbine control systems.
Hardware Specifications
Parameter
Specification
Model
DS200TBQCG1A
Brand
General Electric
Origin
USA
Weight
0.50 kg
Dimensions
200 mm x 150 mm x 30 mm
Operating Temp
-20 deg C to +65 deg C
Power Consumption
Passive termination / Loop powered
Profinet and Backplane Communication Velocity
Backplane bus communication velocity licenses and deterministic network protocols ensure high-speed data exchange with core processor modules.
I/O density scaling allows seamless integration of multi-channel analog inputs and outputs across Mark V control racks.
Firmware flash compatibility supports updates and configuration management via system engineering tools.
Frequently Asked Questions
Q: What is the primary function of the DS200TBQCG1A in the Mark V system?
A: It acts as an analog termination board designed to interface field wiring with the core control electronics, handling multi-input and output analog signals.
Q: Is this board equipped with active processing components or is it purely passive?
A: It functions primarily as a termination and signal conditioning board containing terminal blocks and passive routing paths, interfacing directly with active I/O processor cards.
Field Installation Guidelines
Mount the board securely within the designated Mark V cabinet enclosure using the provided standoff mounts.
Ensure all field wiring connected to the terminal blocks is properly stripped, torqued, and labeled to prevent intermittent connections.
Verify proper shielding and grounding of incoming analog signal cables to minimize electrical noise and signal distortion.
