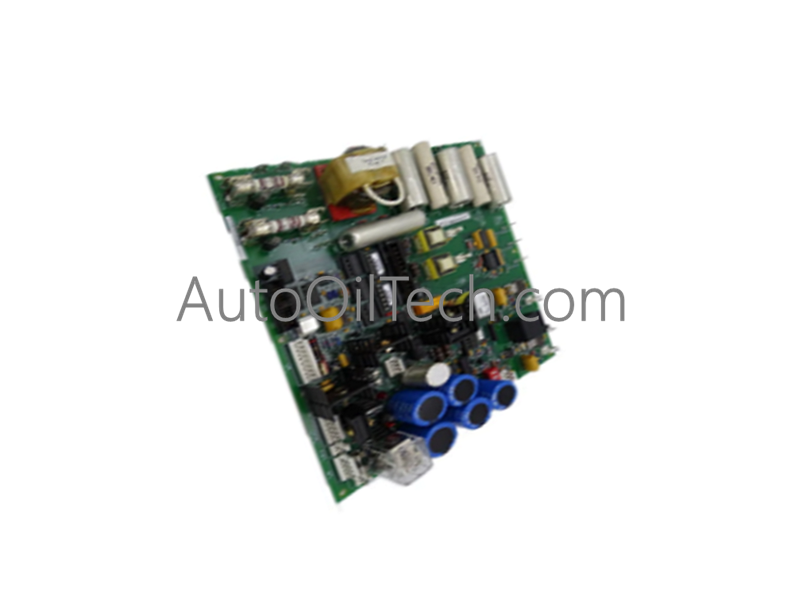

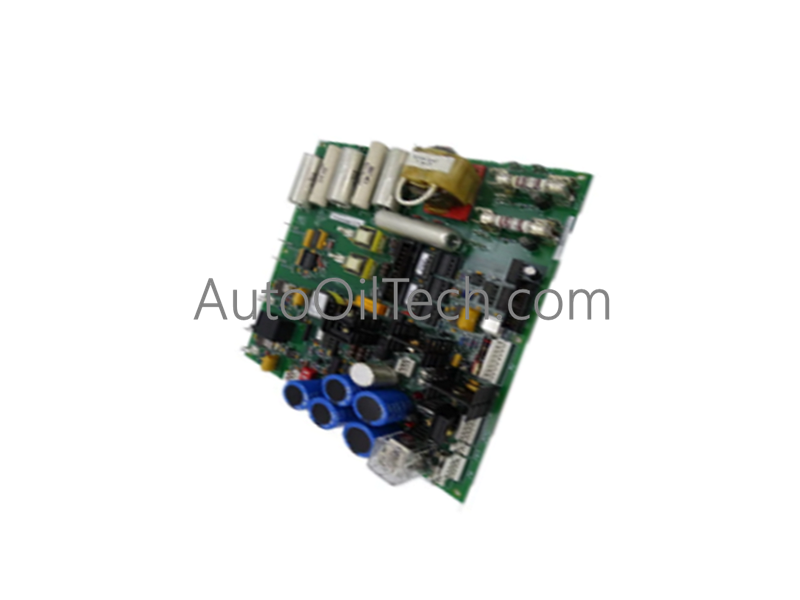

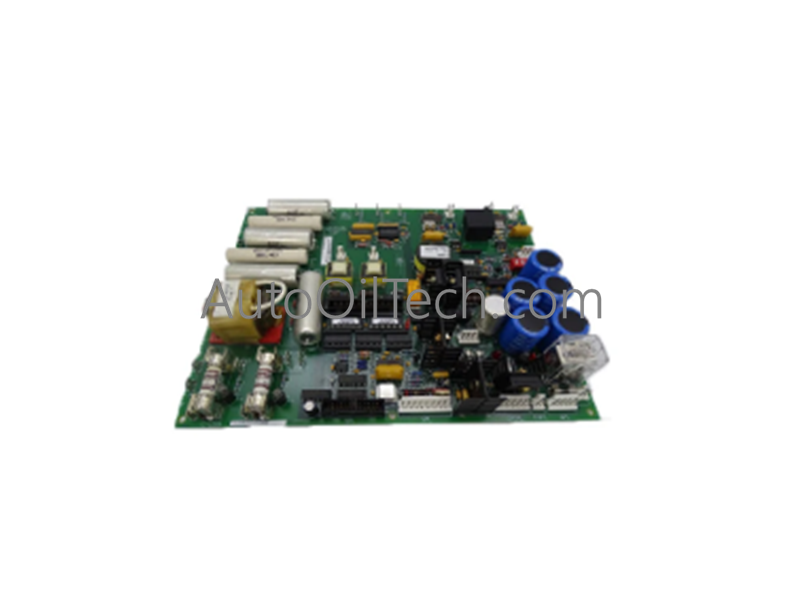

The General Electric DS200SDCIG1A, also cataloged as the DS200SDCIG1A DC Power Supply and Instrumentation Board, operates as a dedicated hardware component for power regulation and drive instrumentation within Mark V control and DC2000 drive systems.
Suffix Breakdown & Model Matrix
DS200: Identifies the product as a Mark V standard footprint component compatible with system backplanes.
SDCI: Designates the specific circuit architecture as a DC Power Supply and Instrumentation Board.
G1: Indicates hardware group version 1, supporting internal field exciters up to 10 A.
A: Denotes the primary manufacturing artwork revision level.
Backplane bus communication velocity licenses and deterministic network protocols ensure high-speed data exchange with core processor modules.
I/O density scaling allows seamless integration of motor field power circuits, armature SCR gating drivers, and multi-channel instrumentation loops across Mark V and DC2000 architectures.
Firmware flash compatibility supports updates and configuration management via system engineering tools.
Frequently Asked Questions
Q: What power supply circuits and voltage rails are supported by the DS200SDCIG1A board?
A: The board includes integrated circuits for +5 VDC (4 A), +/-15 VDC (0.4 A), +/-24 VDC, and 115 VAC (0.4 A) power supplies, alongside motor field power and armature SCR gate driver circuits.
Q: How do the fuse monitoring LED indicators function during a fault condition?
A: Each fuse features an associated LED indicator that illuminates when the respective fuse blows, providing immediate visual feedback for troubleshooting.
Field Installation Guidelines
Remove all electrical power and ensure complete voltage dissipation from the drive before opening the enclosure or handling the board.
Mount the board securely within the designated Mark V cabinet slot using the standard fastening hardware and edge guides.
Verify proper positioning of configurable jumpers (such as JP1 and JP2) and ensure all terminal connections and ribbon cables are fully seated prior to system re-energization.
