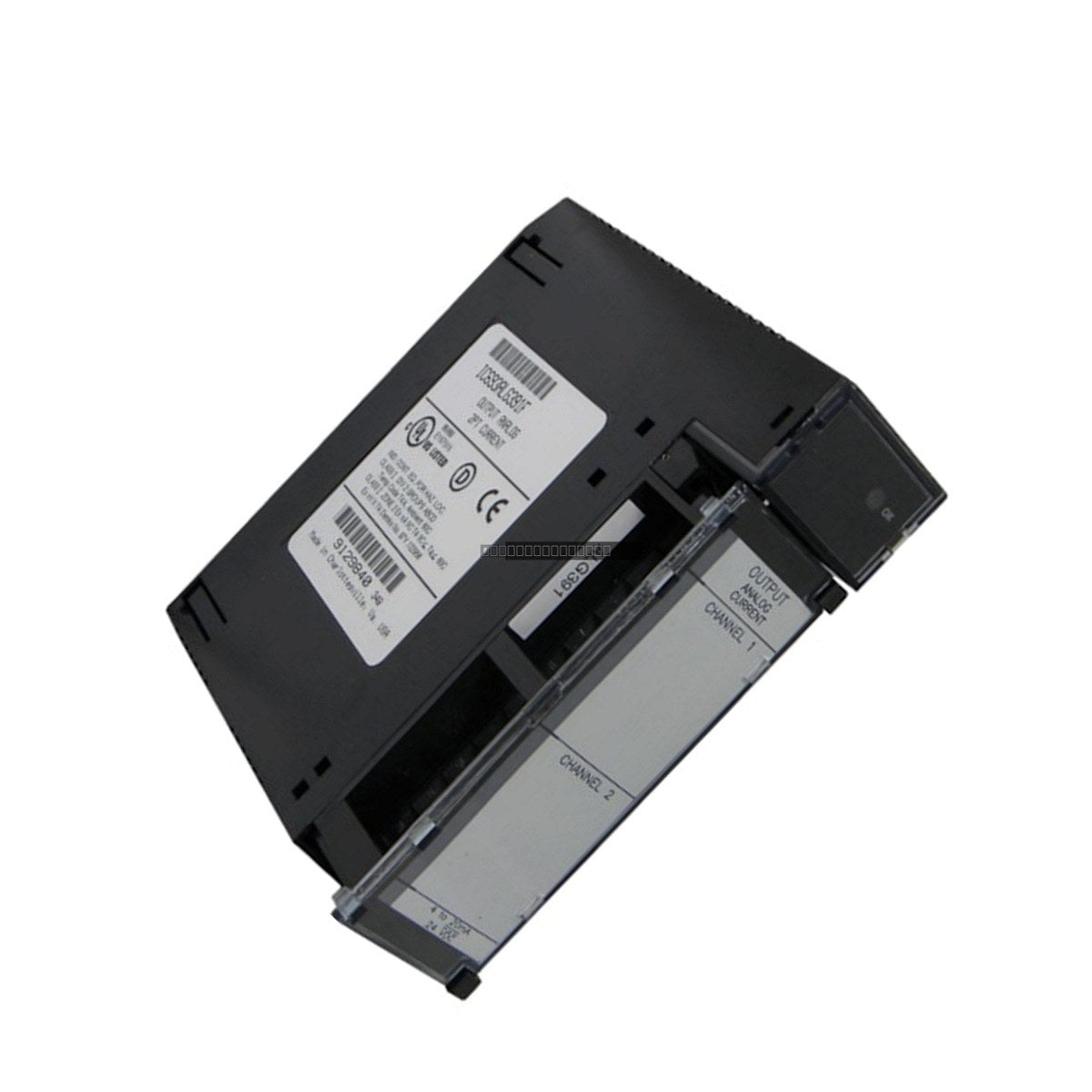

The General Electric IC693ALG391F is a high-performance analog output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides two independent output channels, enabling precise control of external analog devices such as actuators, valves, and variable frequency drives. It is engineered to deliver reliable signal conversion with a 12-bit digital resolution, ensuring accurate process control in industrial automation environments.
Features
Two independent analog output channels.
Supports configurable ranges of 4-20 mA and 0-20 mA.
Fast channel update rate of 5 ms for real-time responsiveness.
Robust 1500 VAC isolation between field and logic circuitry.
Compatible with standard 24 VDC external supply voltage (20-30 VDC range).
Integrated diagnostics for monitoring output status.
Technical Specifications
Model Number
IC693ALG391F
Number of Channels
2
Resolution
12-bit
Output Ranges
4-20 mA, 0-20 mA
Update Rate
5 ms
Isolation
1500 VAC (Field to Logic)
Current Draw (5 VDC)
30 mA
Current Draw (24 VDC)
215 mA
Compliance Voltage
25 V (Max)
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module.
Verify that the module is fully seated in the backplane slot and secured with the provided mounting screws.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure the external 24 VDC power supply is properly grounded and within the specified 20-30 VDC range.
Maintain adequate clearance around the module to allow for proper heat dissipation and airflow within the enclosure.
Avoid routing analog signal cables alongside high-voltage AC power lines.
FAQ
What is the primary function of the IC693ALG391F module?
This module serves as an analog output interface for the GE Series 90-30 PLC, converting digital data from the controller into analog current signals to drive external process equipment.
Can this module be powered by the backplane?
The module requires both +5 VDC from the backplane and an external +24 VDC supply. The 24 VDC can be sourced from the backplane (if supported by the power supply) or provided by an external user-supplied source.
What is the resolution of the output signals?
The module features a 12-bit digital resolution, providing 4 microamps resolution for the 4-20 mA range and 5 microamps for the 0-20 mA range.
