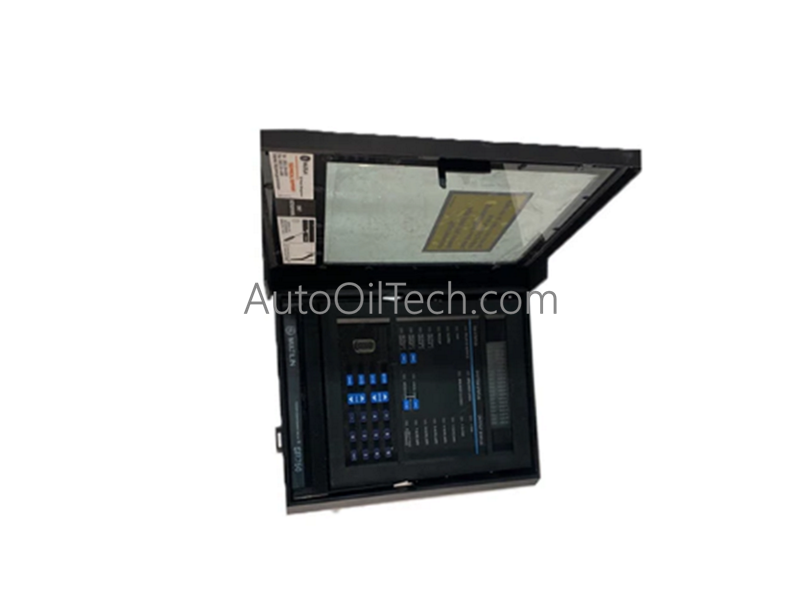

GE Multilin 469-P1-HI-A20-E Motor Protection Relay

The GE Multilin 469-P1-HI-A20-E (also referenced as the 469-P1-HI-A20-E-H enhanced variant) is a comprehensive, digital management device engineered to protect, diagnose, and control medium-to-large synchronous and induction motor systems. This relay integrates high-speed thermal modeling, advanced diagnostic algorithms, and dynamic current monitoring to prevent catastrophic failures like winding degradation or rotor structural fatigue.

Technical Specifications

Key Operational Systems & Engineering Insights

• 1 A Phase CT Input Precision ("P1"): The P1 hardware identifier dictates absolute engineering compatibility with 1 A secondary Current Transformers. Matching this nominal input to your field CT secondaries is critical. Connecting a 1 A rating to a 5 A circuit will compromise thermal modeling calculations and cause blind spots in overcurrent detection thresholds, risking unmonitored insulation breakdown.
• Harsh Environment Conformal Coating ("E"): The internal printed circuit board (PCB) assemblies are treated with a specialized polymeric conformal coating layer. This chemical barrier prevents moisture condensation, conductive airborne particulate tracking, and corrosive gas oxidation from bridging trace paths. It stabilizes the device's lifespan in highly humid or chemically aggressive environments like paper mills, oil refineries, and wastewater facilities.
• Advanced Predictive Diagnostics & Telemetry: Beyond raw tripping functionality, the relay runs a continuous self-assessment diagnostic loop tracking broken rotor bars, unbalance trends, and load profile anomalies. Interfacing the relay with the EnerVista 469 software gives control room operators access to high-resolution data visualization and system diagnostic logs. This simplifies motor health trends and reduces unexpected downtime through predictive maintenance targeting.

Field Installation & Grounding Protocols

• Mechanical Panel Clearances: Seat the drawout relay chassis securely within its designated switchgear cutout panel. Ensure that all integrated terminal fingers mate flush with the backplane connectors. Maintain at least 50 mm of unobstructed ventilation envelope above and below the external frame enclosure to prevent internal heat concentration.
• Signal Control Ducts and Ground Isolation: Route all low-level analog lines, 1 A CT secondaries, and communication cabling through dedicated low-voltage instrument wireways. To isolate high-frequency electromagnetic noise caused by large motor starts from the processor core, establish a direct low-impedance bond between the relay chassis grounding stud and the main copper equipment grounding bus using a heavy braided strap.
