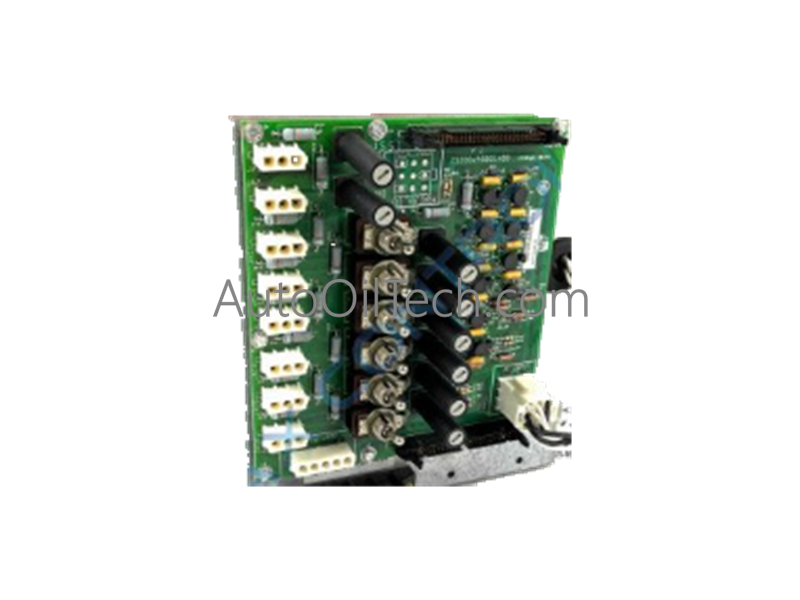

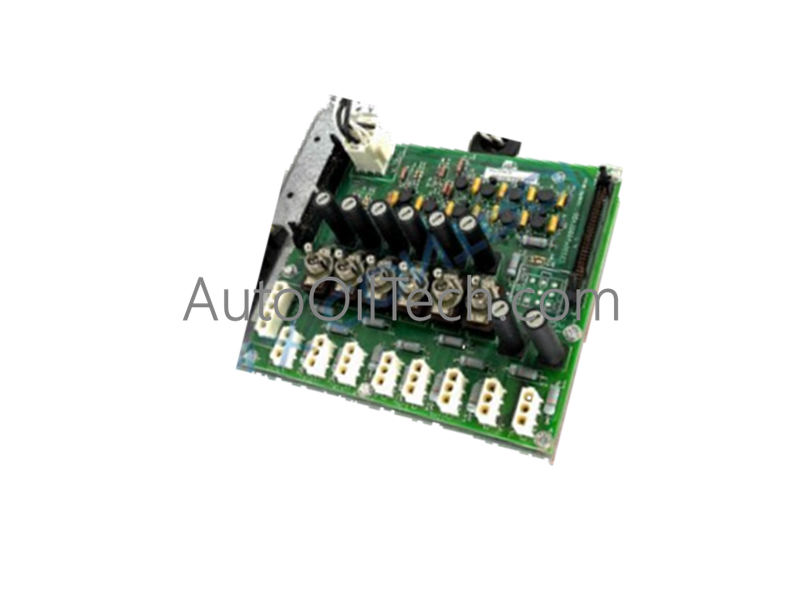

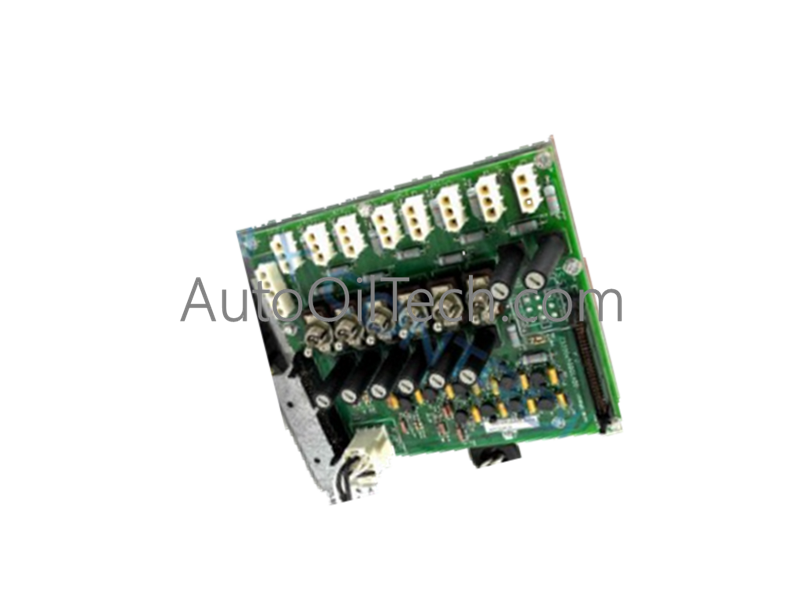

GE IS2020JPDBG01 AC Power Distribution Module
No reviews
في الأوراق المالية!
- Part Number: IS2020JPDBG01
- Brand: General Electric
- Type: AC Power Distribution Module
- Dimensions: 4x18.5x12.7cm
- Country of Origin: USA
- Barcode: 8537101190
يشارك
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
وصف المنتج
Configured for centralized AC source routing and real-time status diagnostics in Mark VI control systems, the GE IS2020JPDBG01 (IS2020JPDBG01 AC Power Distribution Module) provides direct physical/electrical execution. The hardware serves as a dedicated cabinet-mounted component utilized to aggregate dual AC input lines, pass them through internal filter networks, and branch power out to localized controller elements.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS2020JPDBG01 |
| Brand | General Electric (GE) |
| Series | Speedtronic Mark VI |
| Origin | United States (USA) |
| Weight | Standard cabinet-enclosure power module mass profile |
| Dimensions | Standard PDM cabinet footprint |
| Operating Temp | 0 to +65 deg C (Standard control room cabinet limits) |
| Power Consumption | Pass-through layout (Internal instrumentation draw is negligible) |
| Base Circuit Board | IS200JPDB / IS200JPDBH2A (with AC source selector) |
| Input Interfaces | Terminal Strip (TB1), 1 x 5-position Mate-n-Lok connector |
| Output Interfaces | 2 x 9-position Mate-n-Lok, 6 x switched and fused output connectors |
| Diagnostic Interface | 2 x 50-pin ribbon cable connectors (P1 and P2) |
| Configuration Options | None (Fixed trace layout and hardwired functionality) |
| Technical Manual | GEI-100613 |
GE Industrial Control and Deterministic Networks
- I/O Density Scaling and Feedback Connectivity: The module routes critical operational diagnostic signals back to a core PPDA I/O pack without consuming standard analog or digital input card slots. It integrates with P1 and P2 feedback signal pathways across companion JPDS, JPDF, JPDE, and JPDM boards, consolidating system status parameters onto a unified diagnostic ribbon bus.
- Backplane Bus Communication and Filtering Protection: Dual AC power sources enter the right-side terminal board and feed directly to inline AC line filter assemblies positioned underneath the primary IS200JPDB printed circuit board. A dedicated internal wire harness links these filters to the board's J1 connector, mitigating high-frequency electromagnetic noise before the AC current branches to critical system components.
Frequently Asked Questions
Q: How is the physical chassis grounded inside the master Power Distribution Module (PDM) cabinet?
A: The IS2020JPDBG01 does not rely on independent discrete wire ground lugs for its primary chassis tie. It establishes a low-impedance connection to functional earth through its integrated metal mounting supports, which bolt directly into the underlying sheet metal plate of the cabinet frame.
Q: What is the purpose of the dual P1 and P2 50-pin ribbon cable connectors?
A: The P1 and P2 connectors carry real-time analog and digital monitoring signals from the power traces up to the processor level. These diagnostic lines monitor the status of the AC source selector, fuse continuity, and output switch states, enabling complete system visibility via the control network.
