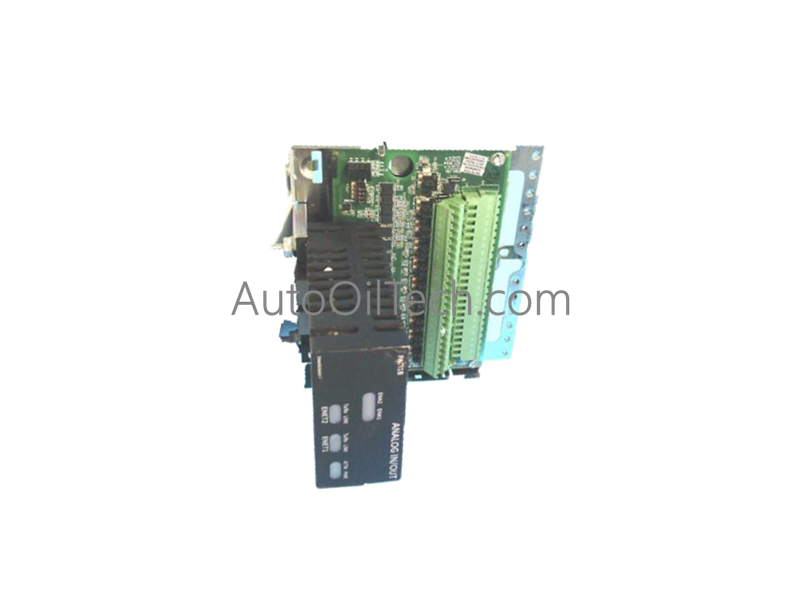

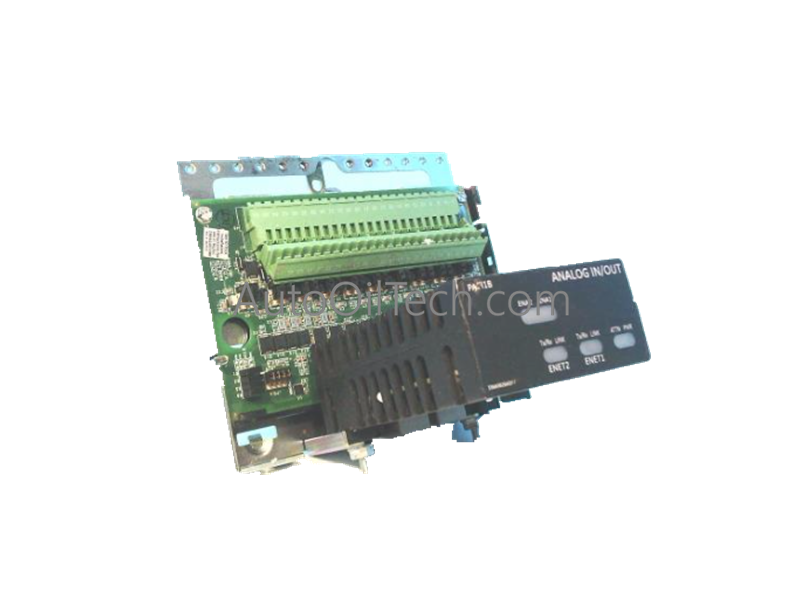

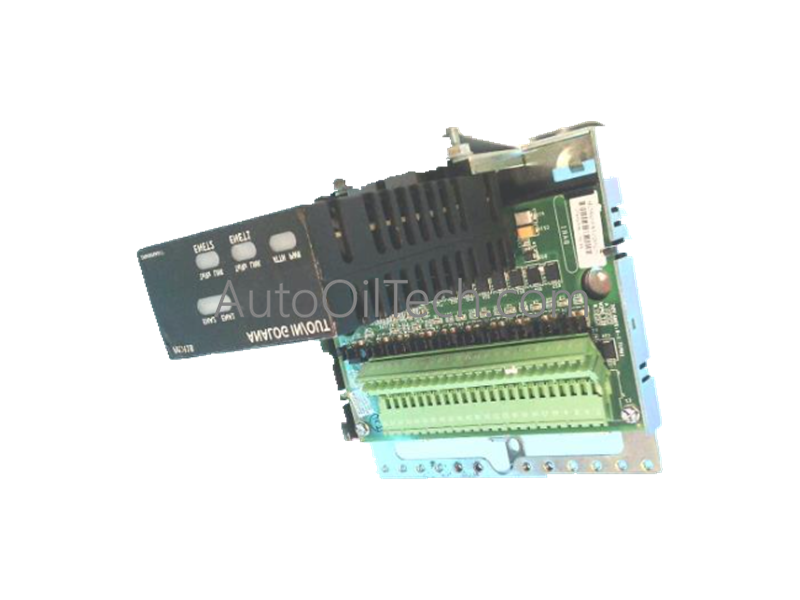

GE IS200STAIH2ACB (IS230SNAIH2A) Analog Input Modules

Configured for high-density analog data collection within Mark VIe turbine control networks, the GE IS230SNAIH2A, also cataloged as the IS230SNAIH2A Analog Input Module, operates as a dedicated hardware component for localized signal conditioning and terminal routing. This DIN-rail mountable assembly directly handles multiple non-interfering analog current and voltage loops, conditioning incoming field transmitter data frames into synchronized digital feedback variables for the master processor.

Hardware Specifications

Industrial Control and Drive Dynamics

• I/O Density Scaling and Continuous Filtering: The assembly layout contains high-density terminal tracks designed to maximize signal input configuration within a compact spatial boundary. The onboard circuitry filters incoming low-voltage analog loops, matching continuous signal frequencies to suppress high-frequency line spikes and prevent signal distortion prior to conversion stages.
• Channel-to-Channel Isolation Boundaries: To isolate core backplane processing networks from dangerous field transients, the assembly incorporates galvanic and physical safety barriers. This design enforces strict channel-to-channel isolation parameters, blocking common-mode noise, field ground loop offsets, and transient cross-talk from migrating into adjacent communication paths.

Frequently Asked Questions

Q: Can the IS230SNAIH2A module accept active 4-20 mA HART protocol overlay variables?

A: The hardware is engineered primarily to process baseline analog current and voltage loops. While the physical input channels can handle the standard 4-20 mA carrier wave, high-frequency digital HART communication bursts are typically filtered out by the onboard dampening networks unless specified option boards are attached.

Q: How is the assembly secured against heavy mechanical vibration inside a turbine control panel?

A: The chassis incorporates heavy-duty integrated locking tabs engineered to latch onto standard DIN rails. Once seated, these mechanical clips firmly lock the 2.00 lbs assembly to the mounting frame, keeping terminal connections structurally stable and preventing micro-interruptions caused by turbine harmonic resonances.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Snap the assembly base directly onto a grounded standard DIN rail tracking line. Align the chassis vertically to allow internal thermal air currents to rise naturally through the housing slots. Maintain a clear 50 mm clearance gap above and below the module to avoid high temperature buildup near the internal electronics.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Strip and secure all analog field instrumentation wires cleanly into the high-density terminal blocks. Route these low-potential lines inside separate low-voltage wireways, keeping them completely isolated from high-voltage AC lines or motor power conduits. Connect all cable shield braids straight to the cabinet central copper earth bus to prevent stray electromagnetic field noise from disrupting the analog inputs.
