GE IS200ICBDH1ABB Control Base Card

Description

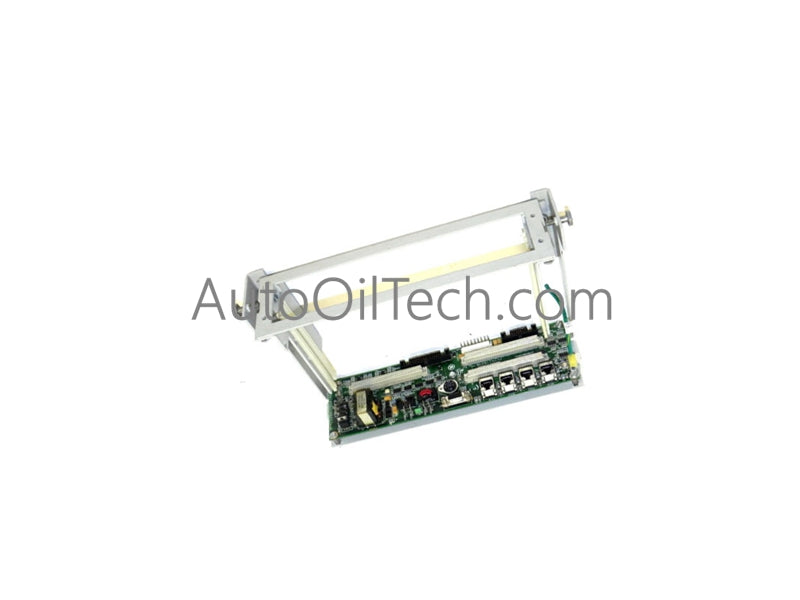

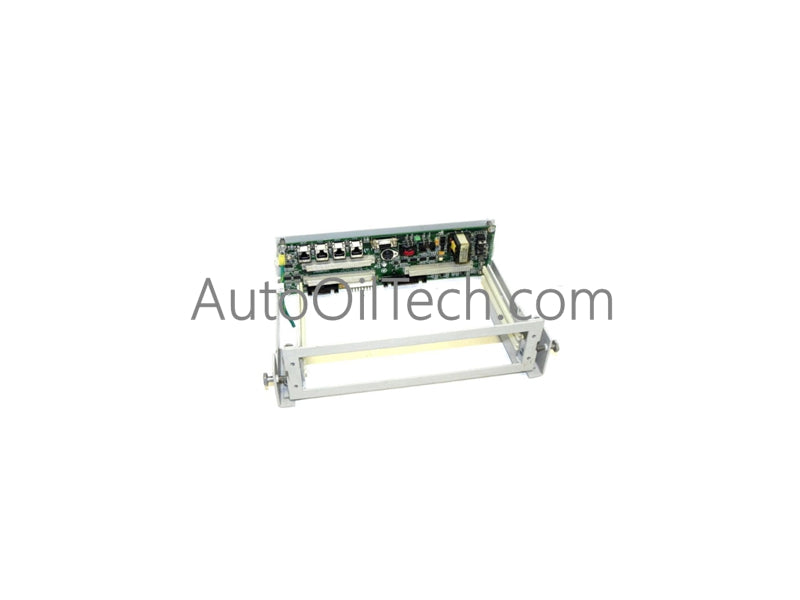

The GE IS200ICBDH1ABB, also cataloged as the Control Base Card, is a core PCB within the EX2100 excitation system. It provides multiple communication and connectivity interfaces, enabling integration of turbine control processors with external devices and subsystems.

Hardware Specifications

Functional Description

The IS200ICBDH1ABB is designed for secure integration within metallic chassis assemblies, supporting turbine excitation control. It provides multiple connection points for communication, monitoring, and control:

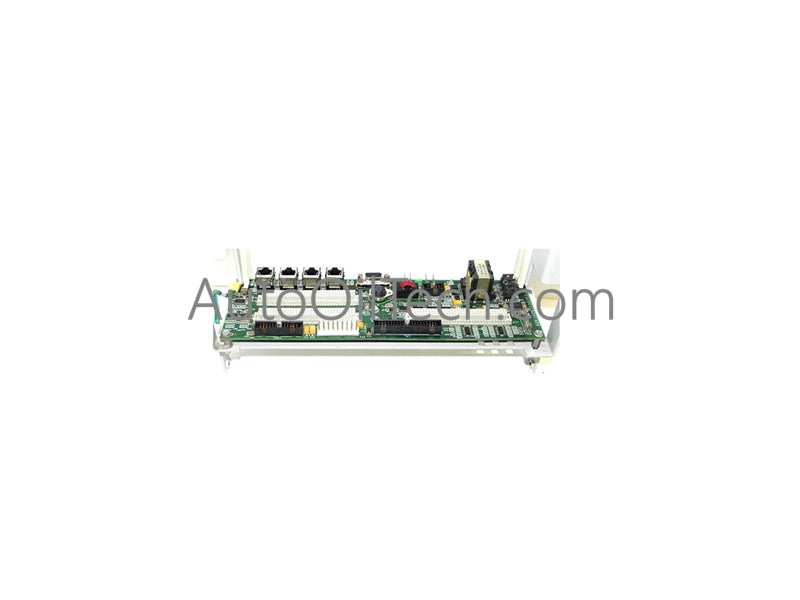

• Ethernet Jacks (J12A, J12B, J11A, J11B): Enable redundant and segmented network connectivity.
• RS-232 Female 9-pin Port: Standard serial interface for external device communication.
• 8-pin Female Circular Port: Specialized data/power interface for dedicated functions.
• Black Pin Connectors (40, 10, 26 pins): Provide versatile connectivity for subsystems.
• White 9-pin Male Connector: Nested within larger connectors for additional I/O flexibility.
• White 96-pin Female Ports: High-density connections for complex data/control signals.
• Stab-on Connectors (CHAS1, CHAS2, CCOM1, CCOM2): Dedicated points for power distribution and communication routing.

Features

• High-density connectivity: Multiple pin and port options for diverse subsystems.
• Redundant networking: Multiple Ethernet jacks for reliable communication.
• Flexible integration: Modular design supports expansion and customization.
• Industrial durability: Rated for –30 to +65 °C operation in demanding environments.

Frequently Asked Questions (FAQ)

Q: What role do the stab-on connectors serve? A: They provide secure connections for chassis integration, power distribution, and communication routing.

Q: Can the IS200ICBDH1ABB support redundant Ethernet networks? A: Yes, the four Ethernet jacks allow redundancy and segmentation for enhanced reliability.

Q: Is the RS-232 port still relevant in modern systems? A: Yes, it remains a standard for diagnostic communication and legacy device interfacing.

Field Installation Guidelines

• Mount the IS200ICBDH1ABB securely within the EX2100 chassis.
• Ensure proper grounding and shielding of Ethernet and RS-232 cabling.
• Verify connector seating before energizing the system.
• Maintain separation between signal and high-voltage wiring.
• Conduct diagnostic checks of all ports during commissioning.
